Universal Extra-Large Flat Screen Ceiling Mount

BT8448

Three ceiling drop lengths available




Designed to ceiling mount screens over 65", the BT8448 is an extra-large ceiling mount which is available with a choice of three different drop lengths; 1m, 1.5m, 2m and 3m. The twin pole design and heavy duty steel provides strength and rigidity, allowing for a maximum load of up to 130kg. Other great features include post installation screen alignment and height adjustment screws to help level the screen once mounted. Available with a choice of Black or Chrome poles.






  • Twin pole mount suitable for screens 65" and over
  • Heavy duty steel capable of supporting very heavy loads
  • Lateral adjustment of screen once mounted
  • Integrated cable management for a neat and tidy installation
  • Adjustment screws allow screen to be levelled once mounted
  • Simple ‘hook-on’ installation
  • Recommended screen size: 65" - 120"
  • Max load: 130kg
  • VESA® & non-VESA fixings: up to 1100 x 730mm
  • Ceiling drop: 980mm, 1480mm,1980mm or 2980mm*

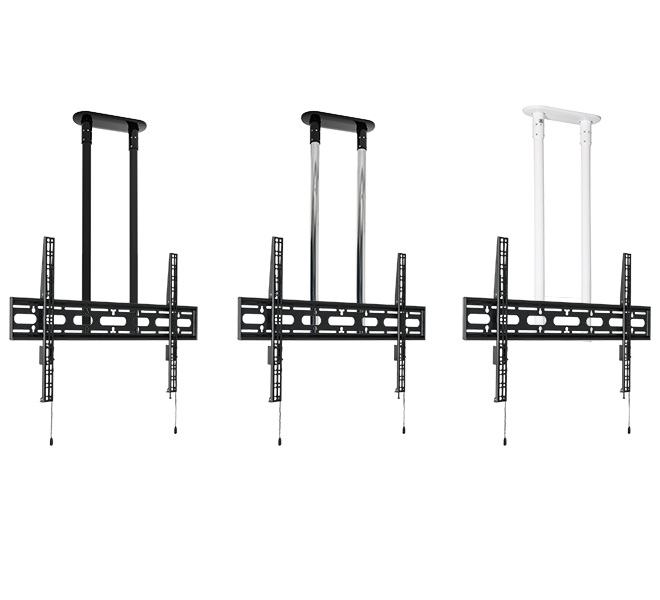

  • Colour option (Ø50mm poles): Black, White or Chrome
  • Colour option (ceiling plate): Black or White

    *To the centre of the interface mount

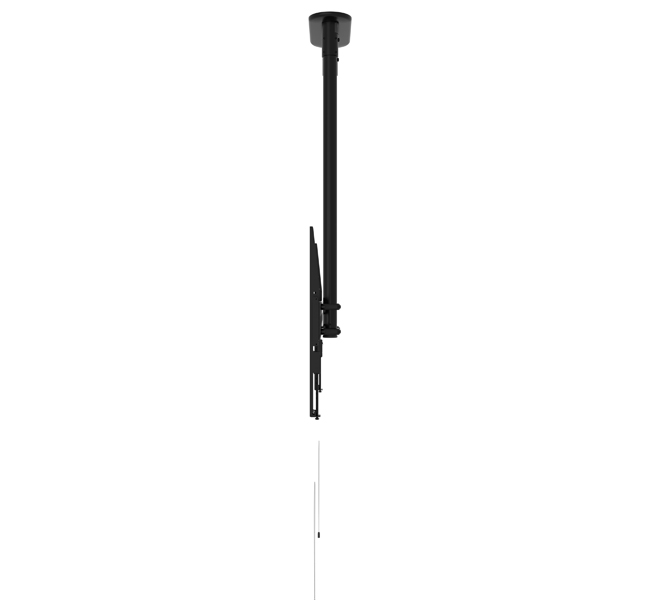

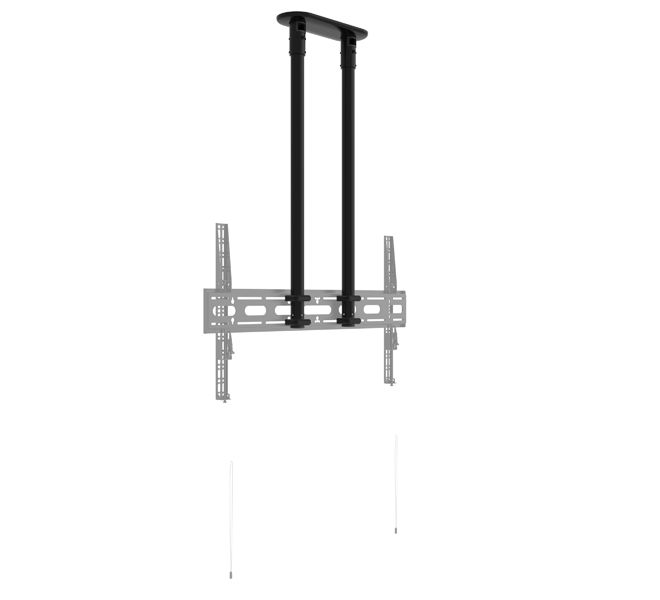

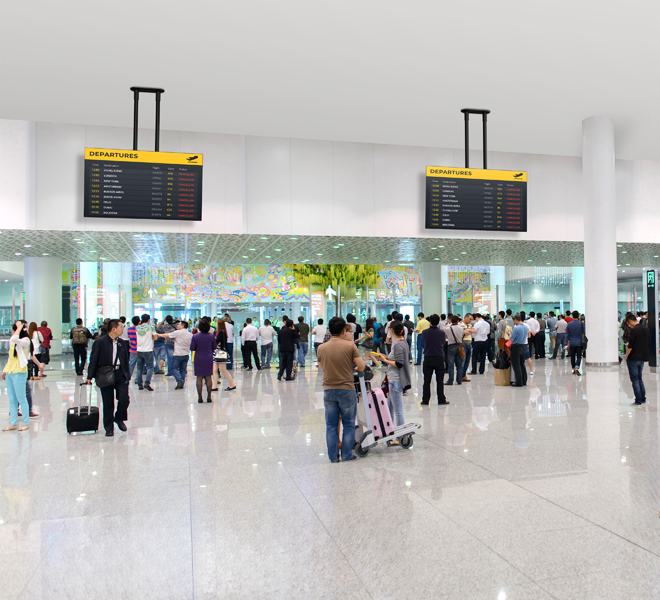

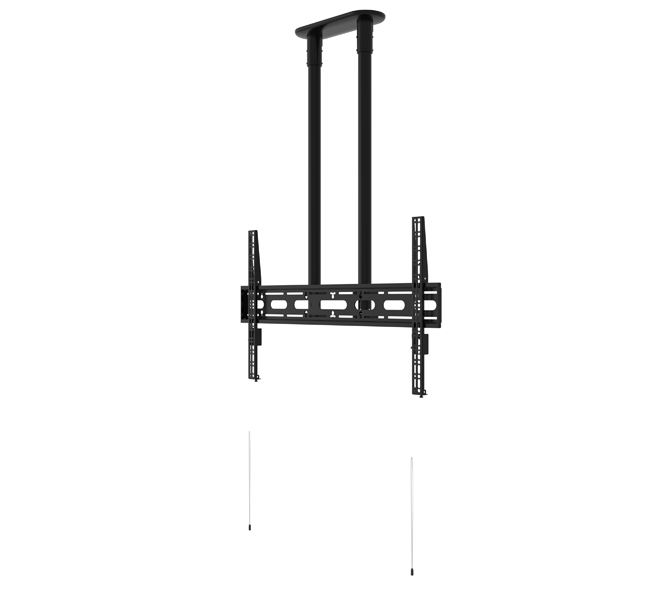

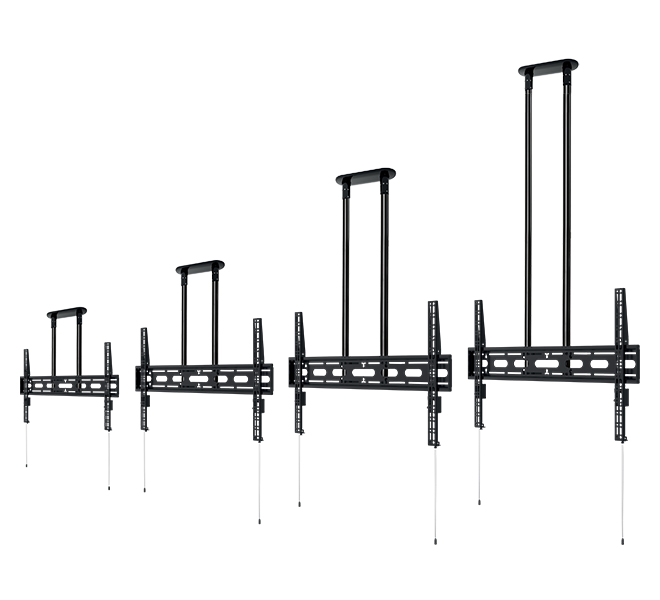

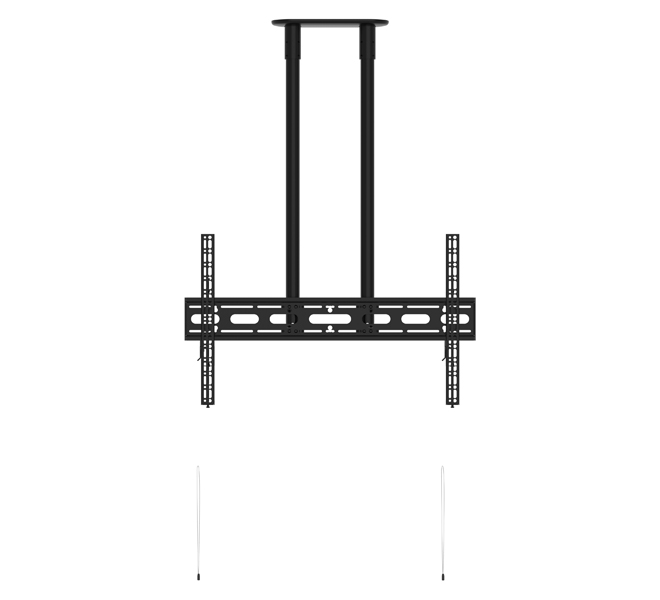

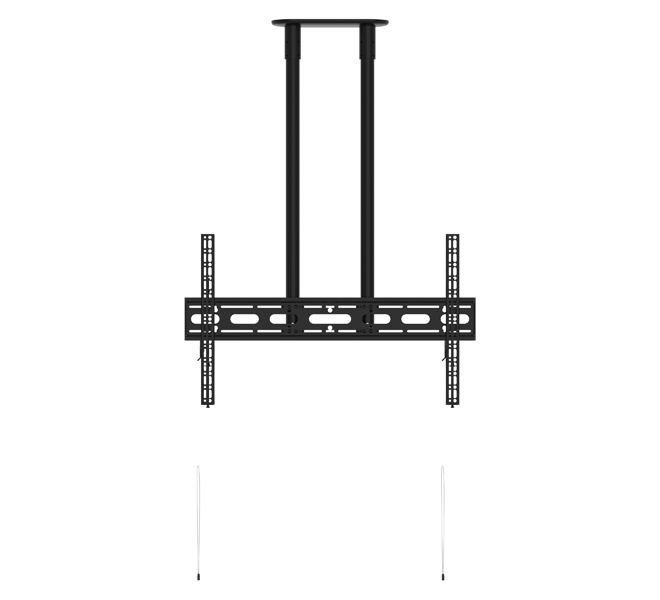

BT8448 - Extra-Large Flat Screen Ceiling Mount Available with a choice of three pole lengths: 1m, 1.5m or 2m Post installation screen alignment for perfect positioning every time BT8448 with Screen

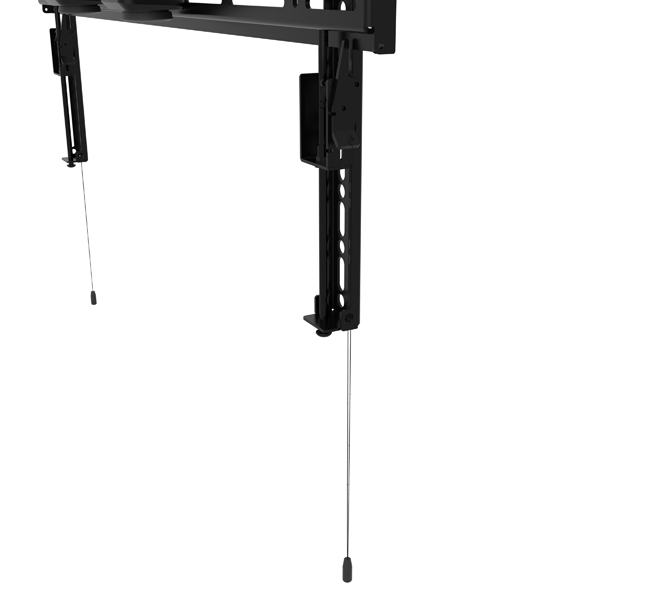

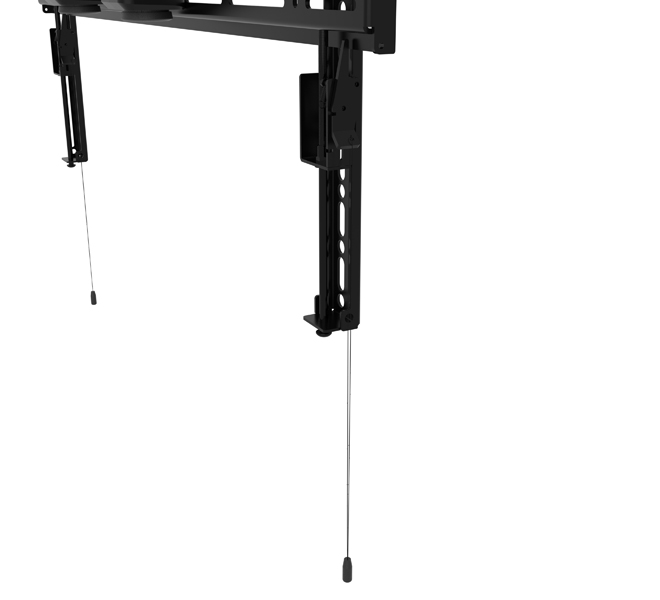

Adjustment screws allow screen to be levelled once mounted Integrated cable management for a neat and tidy installation White BT7807 and BT7850-100 with BT8448 and screen White BT7807 and BT7850-100 with BT8448

Product Specification Sheets

Specification Sheet (PDF)


Installation Guides

BT8448 Installation Guide (PDF)



Technical Drawings

BT8448-100 - Technical Drawing (PDF)

BT8448-100 - Technical Drawing (DXF)

BT8448-150 - Technical Drawing (PDF)

BT8448-150 - Technical Drawing (DXF)

BT8448-200 - Technical Drawing (PDF)

BT8448-200 - Technical Drawing (DXF)
