Flat Screen Floor Stand/Trolley

XRTROLLEYXL

Supports weights up to 100kg




Designed large and extra large screens, the XRTROLLEYXL supports weights up to 100kg. 3" braked castors and adjustable height feet are both included for either fixed or mobile solutions. The universal interface accommodates mounting patterns up to 800 x 600mm and comes with adjustment screws which allow the screen to be levelled once mounted.






  • Adjustable height feet and 3" (7.6cm) braked castors are included
  • Levelling screws allow adjustment of screen height
  • Padlock tabs on arms for additional security (padlock not included)
  • Integrated cable management
  • Security locking screws help prevent unauthorised removal of screens
  • AV accessory shelf XRTROLLEYSH1 available separately for items
    up to 475mm (18.7") x 427mm (16.8")
  • Recommended screen size: 50” (127cm) up to 86” (218cm)
  • Max load: 100kg (220lbs)
  • VESA compatibility: 200mm x 100mm up to 800mm x 600mm
  • Dimensions: H: 2172mm (85.5") x W: 1160mm (45.6") x D: 792mm (31.2")
  • Colours: Black/Silver
XRTROLLEY - Levelling feet and 3 inch braked castors are included XRTROLLEY - Security locking screws help prevent unauthorised removal of screens XRTROLLEY - Padlock tabs on arms for additional security (padlock not included) XRTROLLEYXL - AV accessory shelf XRTROLLEYSH1 available separately for items up to 475 x 427mm

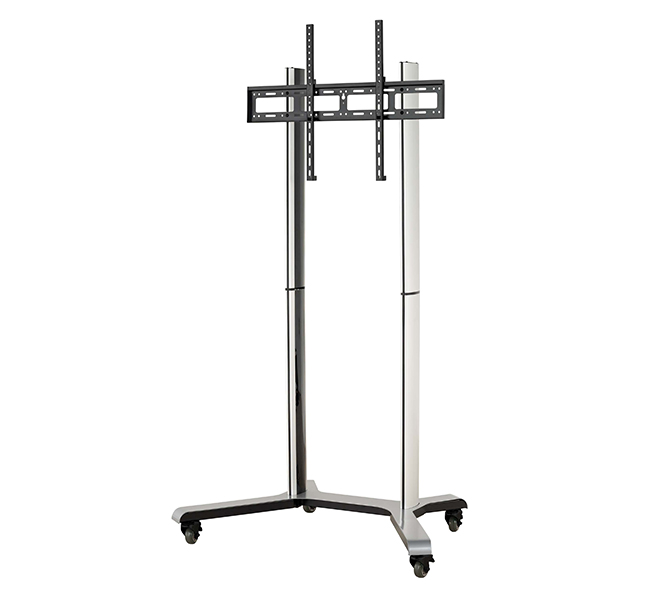

XRTROLLEYXL - Front three quarter view XRTROLLEYXL - Front view XRTROLLEY - Side view XRTROLLEYXL - Front three quarter view with screen

Product Overview Video

Specification Sheet

Specification Sheet - English (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)
