Flat Screen Floor Stand/Trolley

XRTROLLEY

Supports weights up to 40kg




Designed for medium and large sized screens, the XRTROLLEY supports weights up to 40kg. 3" braked castors and adjustable height feet are both included for either fixed or mobile solutions. The universal interface accommodates mounting patterns up to 600 x 400mm and comes with adjustment screws which allow the screen to be levelled once mounted.

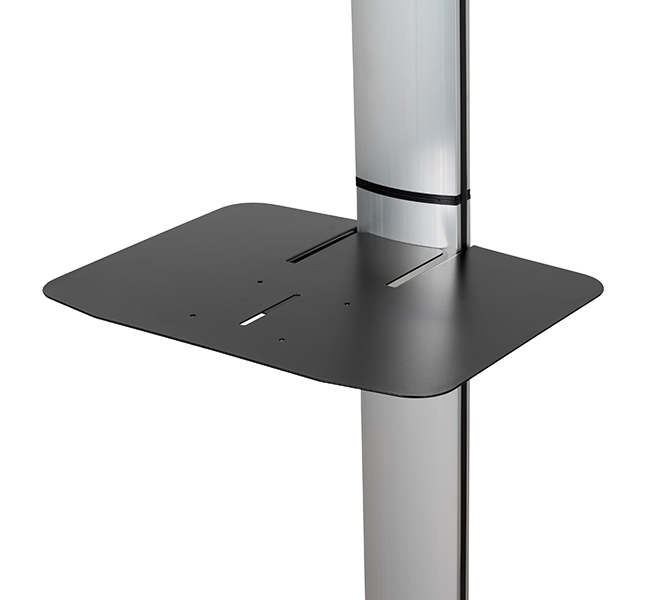

  • AV accessory shelf included (an optional smaller shelf XRTROLLEYSH2 is available on request)

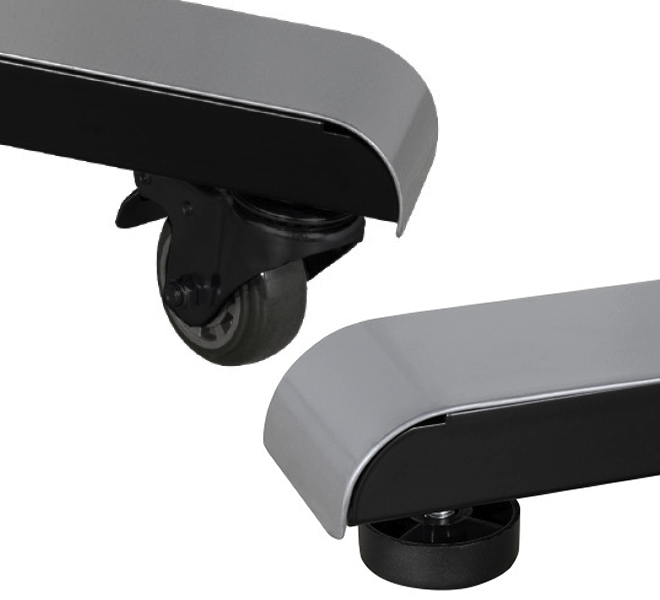

  • Adjustable levelling feet and 3" (7.6cm) braked castors are included
  • Levelling screws allow adjustment of screen height

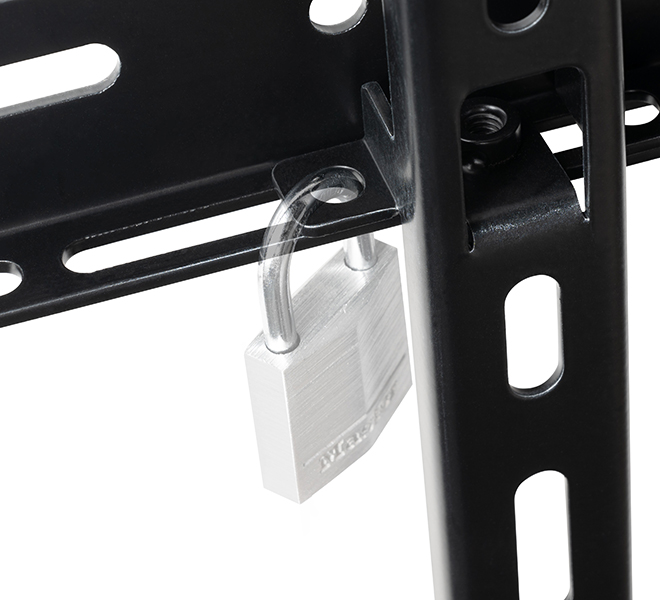

  • Padlock tabs on arms for additional security (padlock not included)

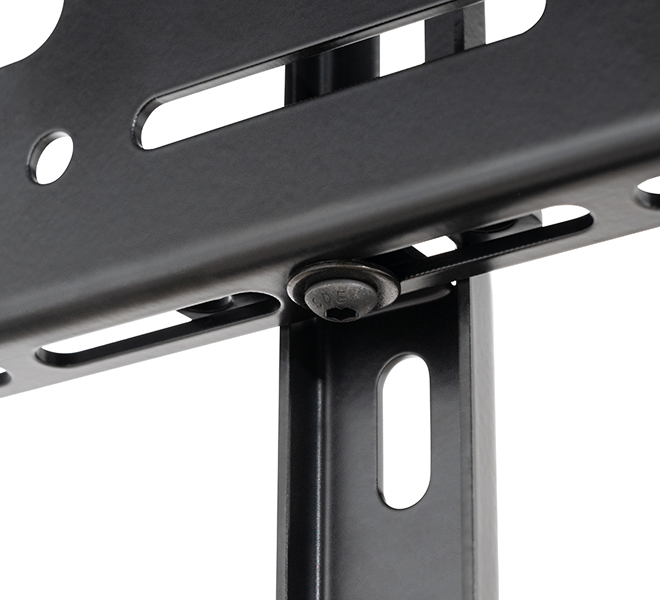

  • Security locking screws help prevent unauthorised removal of screens
  • All components supplied in a single box for easy shipping
  • Recommended screen size: 32” (81cm) up to 55” (140cm)
  • Max load: 40kg (88lbs)
  • Max Load (Shelf): 5kg (11lbs)
  • Shelf Dimensions: W: 450mm (17.7") x D: 350mm (13.7")
  • VESA compatibility: 200mm x 100mm up to 600mm x 400mm
  • Dimensions: H: 1824mm (71.8") x D: 958mm (37.7") x W: 685mm (27")
  • Colours: Black/Silver
XRTROLLEY - AV accessory shelf included  (an optional smaller shelf XRTROLLEYSH2 is also available on request) XRTROLLEY - Levelling feet and 3 inch braked castors are included XRTROLLEY - Padlock tabs on arms for additional security (padlock not included) XRTROLLEY - Security locking screws help prevent unauthorised removal of screens

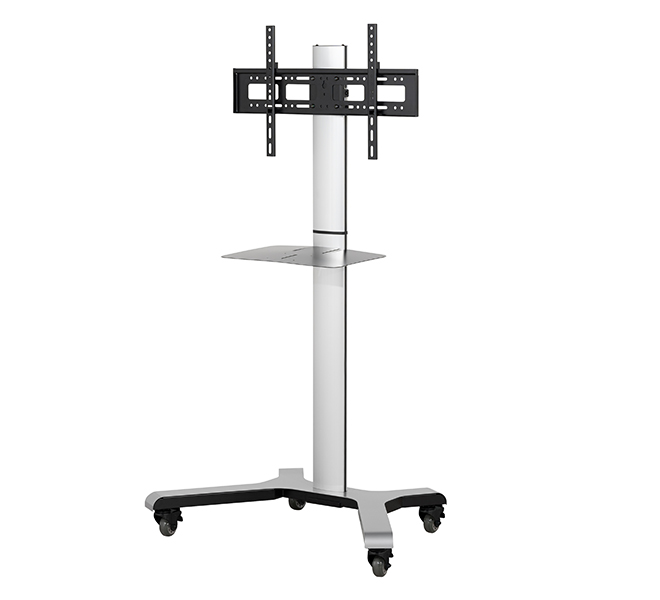

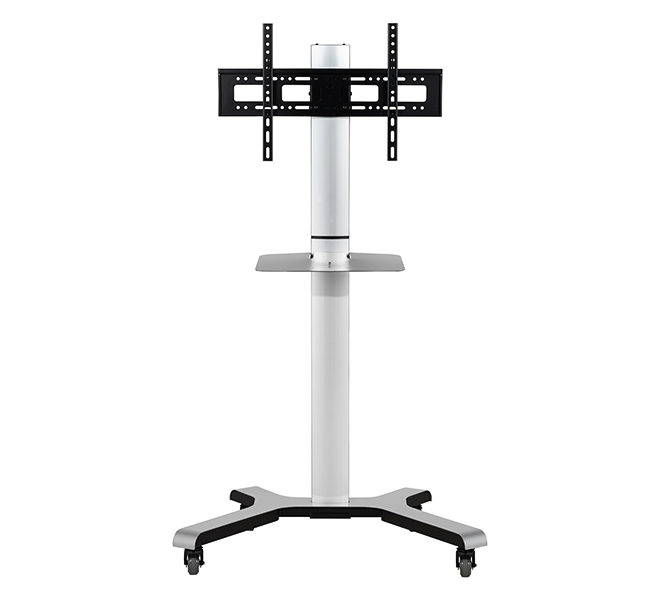

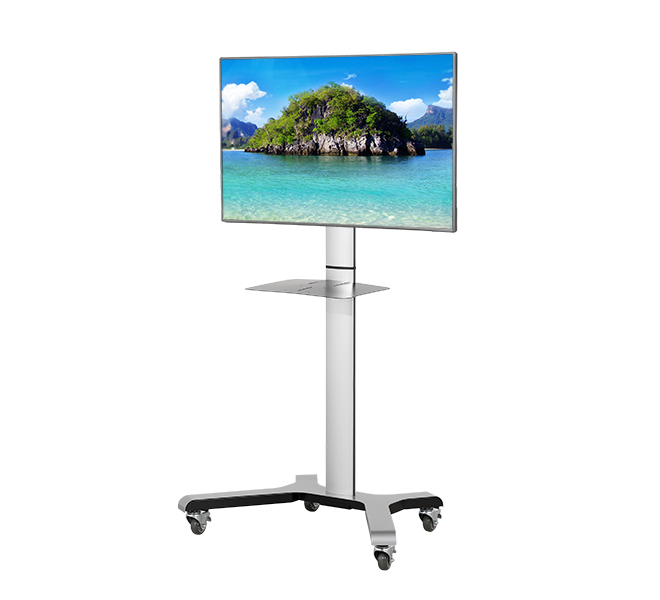

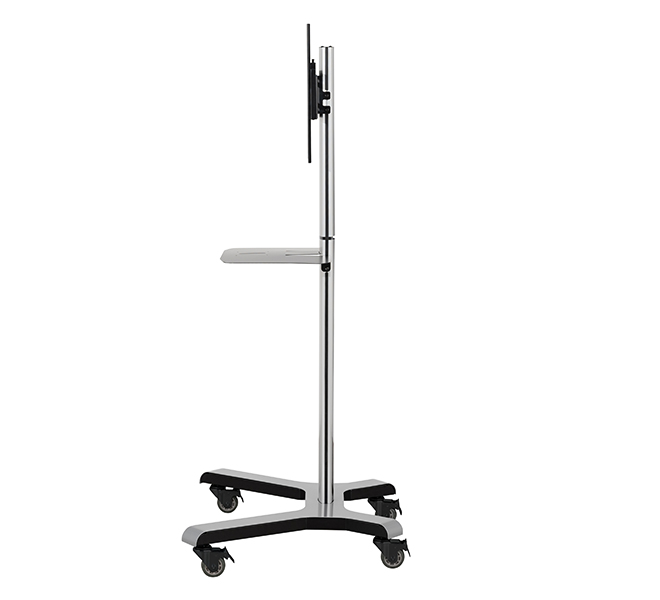

XRTROLLEY - Front three quarter view XRTROLLEY - Front view XRTROLLEY - Side view XRTROLLEY - Front three quarter view with screen

Product Overview Video


Specification Sheet

Specification Sheet - English (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)

You must log in to view this content
