Adjustable Drop Flat Screen Ceiling Mount

BT8420

With Tilt

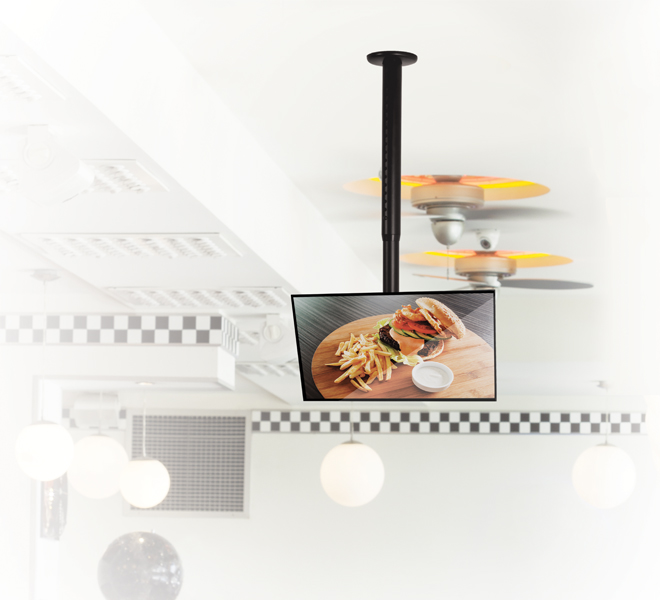

Designed to ceiling mount screens up to 25kg, the BT8420 features an adjustable drop of 625mm - 950mm in increments of 25mm. The mount has an easy tilt function of up to +/-40°. Locking screws help prevent unauthorised removal of the screen and cover plates are supplied for a neat and tidy installation.






BT8420 - Adjustable Drop Universal Flat Screen Ceiling Mount













  • Tool-less adjustable ceiling drop in increments of 25mm (1")
  • Suitable for landscape or portrait mounting
  • Security screws help prevent unauthorised removal of screens
  • Integrated cable management
  • Cover plate included for a smart installation
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recommended screen size: up to 47" (119cm)
  • Max load: 25kg (55lbs)
  • VESA® fixings: up to 200mm x 200mm
  • Tilt: +/-40°
  • Ceiling drop: Min. 600mm (23.6") - Max. 1000mm (39.4")*
  • Colour: Black

    *From the ceiling to the centre of the mount
BT8420 - Adjustable Drop Universal Flat Screen Ceiling Mount BT8420 - Adjustable Drop Universal Flat Screen Ceiling Mount BT8420 - Integrated cable management BT8420 - Adjustable Drop Universal Flat Screen Ceiling Mount

Specification Sheet

Specification Sheet - English (PDF)

Specification Sheet - US (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)
