Universal Flat Screen Ceiling Mount

BT8424

With Tilt




Designed to ceiling mount screens up to 50kg in either landscape or portrait orientation, the BT8424 is available in a choice of four different drop lengths; 1m, 1.5m, 2m and 3m. The mount uses B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.


  BT8424 Universal Flat Screen Ceiling Mount with Tilt
  • Unique ‘Torsion-tilt’ mechanism for easy tool-less adjustment
  • Lateral adjustment of screen once mounted
  • Suitable for landscape or portrait mounting
  • Arms feature levelling screws to adjust the screen height
  • Security screws help prevent unauthorised removal of screens
  • Poles are supplied with safety bolt and grub screws for a secure installation
  • Integrated cable management
  • Cover plate included for a smart installation
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recommended screen size: up to 65" (165cm)
  • Max load: 50kg (110lbs)
  • VESA® & non-VESA fixings: up to 468mm x 400mm
  • VESA® compatibility with included adaptors: up to 600mm x 400mm
  • Tilt: +/-15°
  • Ceiling Drop: 1m, 1.5m, 2m or 3m*
  • Colour option (ceiling plate & Ø50mm (2") pole) Black, White or Chrome

    *From the ceiling to the centre of the mount

BT8424 Universal Flat Screen Ceiling Mount with Tilt Levelling screws allow adjustment of the screen height once mounted Security locking screws and Allen key provide a secure installation Maximum VESA fixing can be increased to 600mm using the included adaptor arms

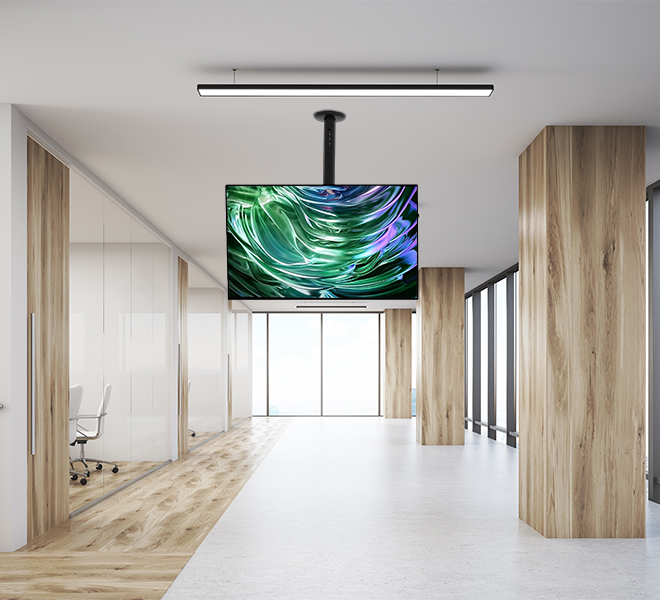

BT8424 Universal Flat Screen Ceiling Mount with Tilt BT8424 in White Available in Black, Chrome or White Suitable for ceiling mounting POS video signage screens
