Flat Screen Wall Mount

BTV112

With Tilt and Swivel




Designed to mount small sized screens, this wall mount features swivel, tilt and full screen rotation which allows for quick and easy repositioning of the screen as required. Integrated cable management and spirit level help make this a neat and tidy mounting solution which is ideal for home installations as well as commercial applications.

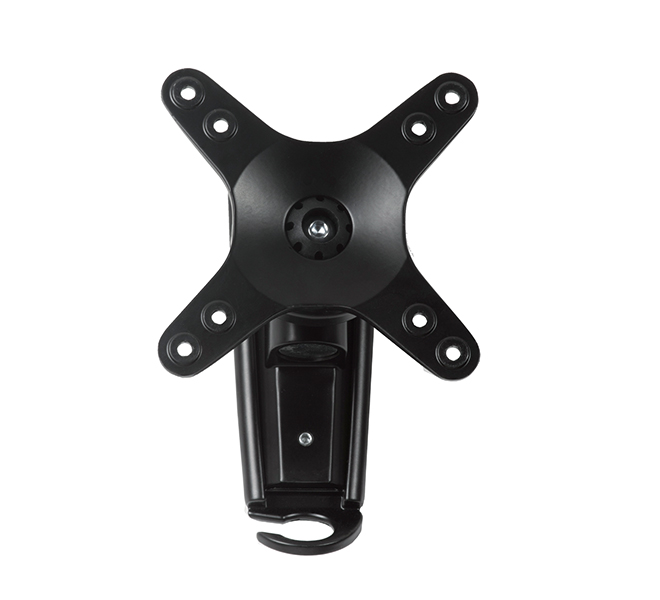

  BTV112 Ventry™ Flat Screen Wall Mount with Tilt and Swivel
  • Easy tilt and swivel adjustment
  • Screen rotation allows screen to be positioned in a landscape or portrait orientation
  • Integrated spirit level for easy wall plate levelling during installation
  • Integrated cable management
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recommended screen size: up to 28" (71cm)
  • Max load: 15kg (33lbs)
  • VESA® compatibility: 75 x 75 & 100 x 100
  • Tilt: +/-15˚
  • Swivel: 180˚
  • Screen Rotation: 360˚
  • Distnace from wall: 95mm (3.7")
BTV112 Ventry™ Flat Screen Wall Mount with Tilt and Swivel Screen mounting up to VESA 100 x 100mm Integrated cable management and spirit level included Interface allows screen rotation of 360°
