Fixed Drop Projector Ceiling Mount


 With Micro-Adjustment


The BT899-FD is a ceiling mounted, universal projector mount designed to mount projectors up to 25kg. Suitable for use with angled ceilings, the BT899-FD features easy adjustment of tilt, yaw & roll plus optional micro-adjustment makes alignment of projections quick & simple. Available in a range of pole lengths to suit your requirements.




BT899-FD Fixed Drop Projector Ceiling Mount with Micro-Adjustment


  • Integrated cable management for smart installation
  • Adjustable ceiling plate suitable for angled ceilings
  • Security locking screws & Allen key provided for a secure installation
  • Pole is internally unobstructed for cables to pass through easily
  • Unique ‘Carousel’ mounting plate for universal compatibility
  • Optional micro-adjustment ideal for use with short throw projectors
  • Suitable for projectors using M2.5, M3, M4, M5 & M6 fixings
  • Quick & easy assembly
  • All mounting hardware included
  • Maximum load: 25kg (55lbs)
  • Tilt (pitch): +/-13°
  • Roll: +/-6°
  • Yaw: 360°
  • Ceiling plate tilt: 90°
  • Maximum distance between fixings: 370mm (14.62)
  • Pole length options:
    BT899-FD055: 0.50m (19.7") Pole
    BT899-FD100: 1m (39.4") Pole
    BT899-FD150: 1.5m (59") Pole
    BT899-FD200: 2m (78.7") Pole
    BT899-FD300: 3m (118.1") Pole
  • Colour options: Black, White or Chrome pole

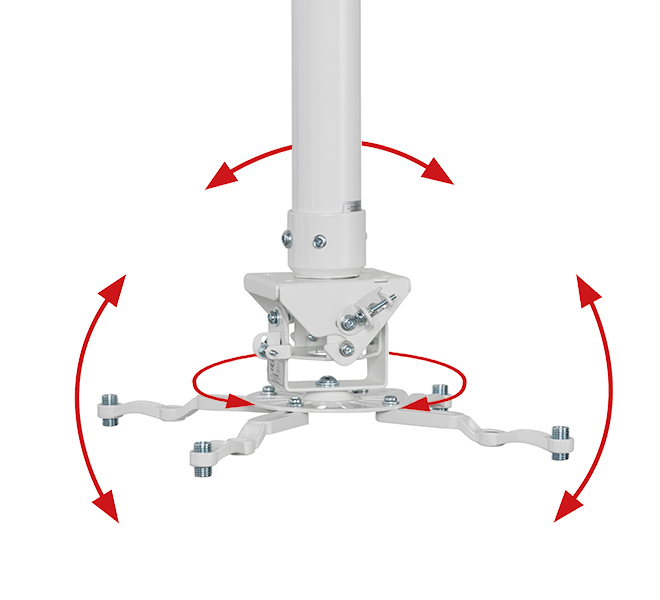

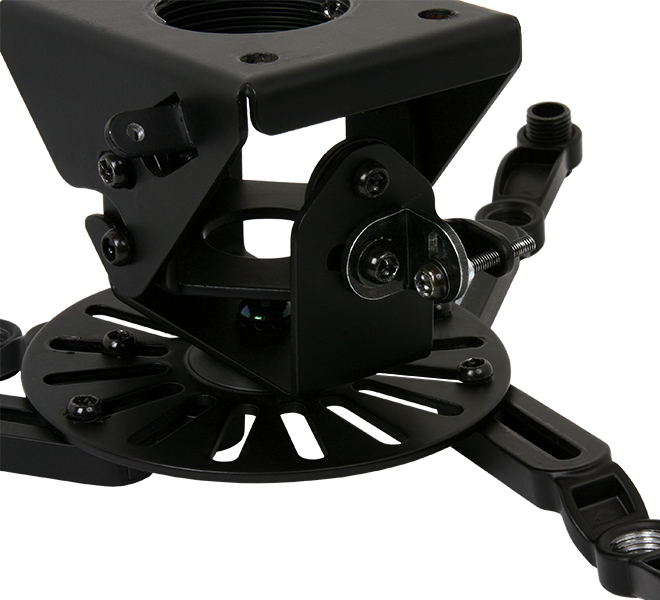

BT899-FD - Features easy tilt, roll & swivel functions BT899-FD - Optional micro-adjustment feature ideal for use with short throw projectors BT899-FD - Ceiling plate can be mounted onto a ceiling with angles up to 90° BT899-FD - Available in Black, White or Chrome

Specification Sheet

Specification Sheet - English (PDF)

产品规格书 — 中文(PDF)


Technical Drawing

Technical Drawing - BTD-BT899-FD050 (PDF)

Technical Drawing - BTD-BT899-FD050 (DXF)

Technical Drawing - BTD-BT899-FD100 (PDF)

Technical Drawing - BTD-BT899-FD100 (DXF)

Technical Drawing - BTD-BT899-FD150 (PDF)

Technical Drawing - BTD-BT899-FD150 (DXF)

Technical Drawing - BTD-BT899-FD200 (PDF)

Technical Drawing - BTD-BT899-FD200 (DXF)

Technical Drawing - BTD-BT899-FD300 (PDF)

Technical Drawing - BTD-BT899-FD300 (DXF)
