CCTV Ceiling Mount


For Large Dome Security Cameras


The BT5961 is a CCTV ceiling mount for large dome security cameras and is available with a 1 or 2 metre ceiling drop. Integrated cable management allows cables to run through the centre of the pole and out through either the top or side of the ceiling mount, ensuring finished installations are neat and tidy. For longer drops, the pole length can be extended with a joiner (BT5924) and additional poles (BT5935) from the System V Range, whilst accessories such as a flat screen can be added with the use of a ø38mm accessory collar (BT5952) and compatible screen mount.



  BT5961 - CCTV Ceiling Mount designed for use with large dome security cameras
  • Mounts a large dome camera to the ceiling

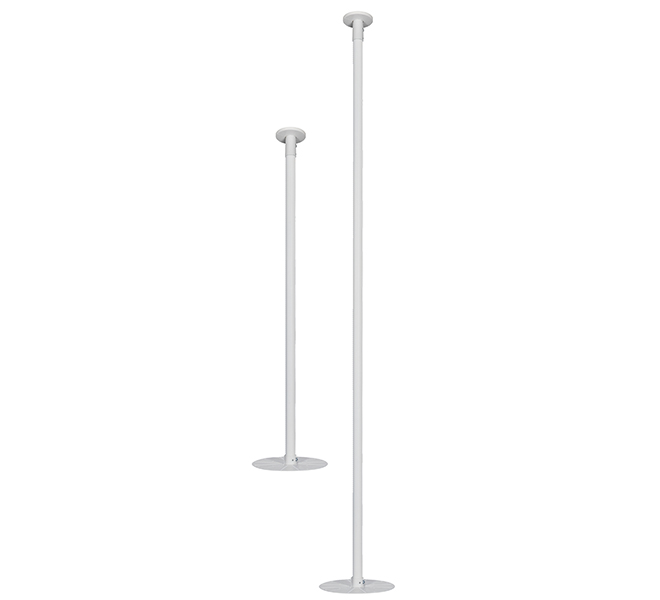

  • Available in a choice of two different drop lengths
  • Multiple grub screws allow micro-adjustment of the pole to ensure a perfectly angled drop
  • Safety bolts ensure pole and camera mount are securely joined
  • Integrated cable management allows cables to pass through the centre of the pole to the
    CCTV camera and out through the top or side of the ceiling mount
  • Maximum load: 5kg (11lbs)
  • BT5961-FD100 pole length: 1036mm (40.8")
  • BT5961-FD200 pole length: 2036mm (801")
  • Camera plate diameter: 51mm (2") to 251.5mm (9.9")
  • Colour: White

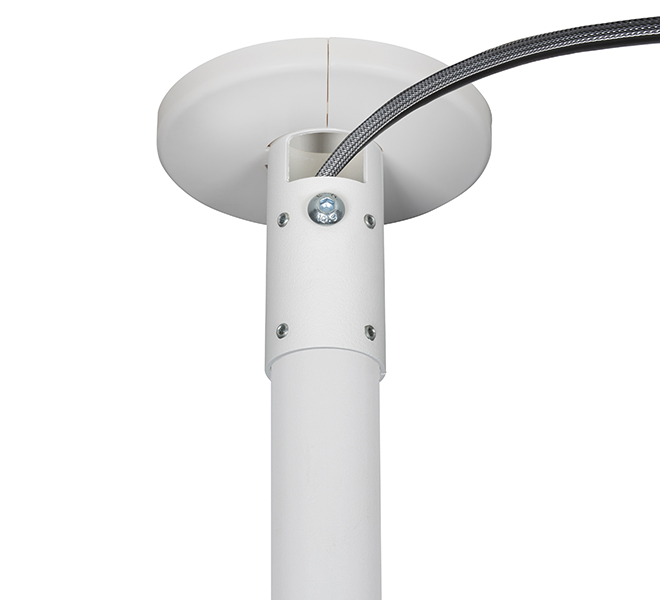

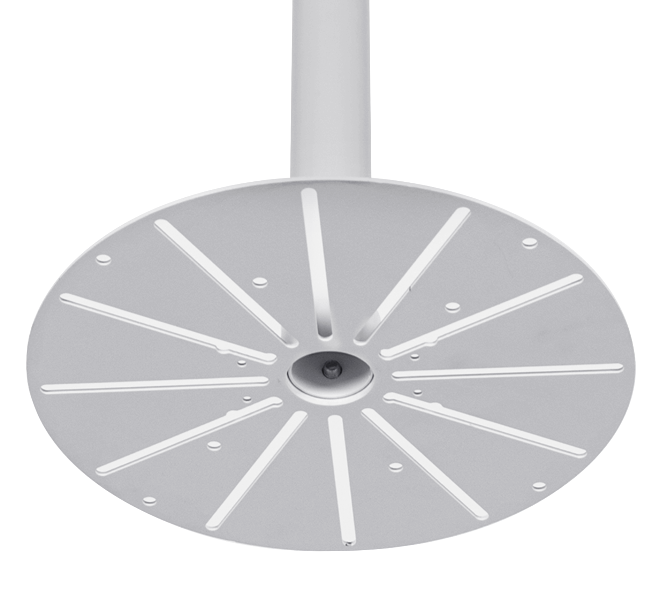

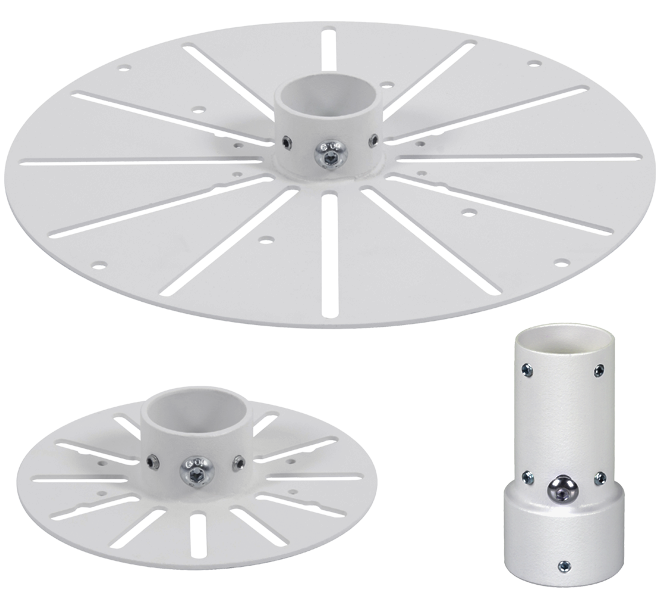

BT5961 - Mounts a large dome CCTV camera BT5961 - Integrated cable management through the top and side of the ceiling mount BT5961 - Multiple mounting points for cameras with fixing points up to 255mm diameter BT5961 - Component range also available for custom installations

Product Specification Sheet

Specification Sheet - English (PDF)

Fiche de Spécifications - Français (PDF)

Specificatieblad - Nederlands (PDF)

Hoja de especificación - Español (PDF)

Spezifikationsblatt - Deutsch (PDF)


Assembly Leaflet

Installation Guide (PDF)


Technical Drawings

Technical Drawing FD100 (PDF)

Technical Drawing FD200 (PDF)
