CCTV & Flat Screen Ceiling Mount

BT5962

For a Flat Screen & Dome Camera




The BT5962 is a CCTV ceiling mount designed for a small to medium-sized dome security camera and a small flat screen display. Available with a 1 or 2 metre ceiling drop, the BT5962 features integrated cable management allowing cables to run through the centre of the pole and out through either the top or side of the ceiling mount, ensuring finished installations are neat and tidy. For longer drops, the pole length can be extended with a joiner (BT5924) and additional poles (BT5935) from the System V Range, whilst accessories such as a flat screen can be added with the use of a ø38mm accessory collar (BT5952) and compatible screen mount.





  BT5962 - Mounts both a dome shaped cctv camera and a flat screen monitor from the ceiling
  • Mounts adome camera and small flat screen to the ceiling

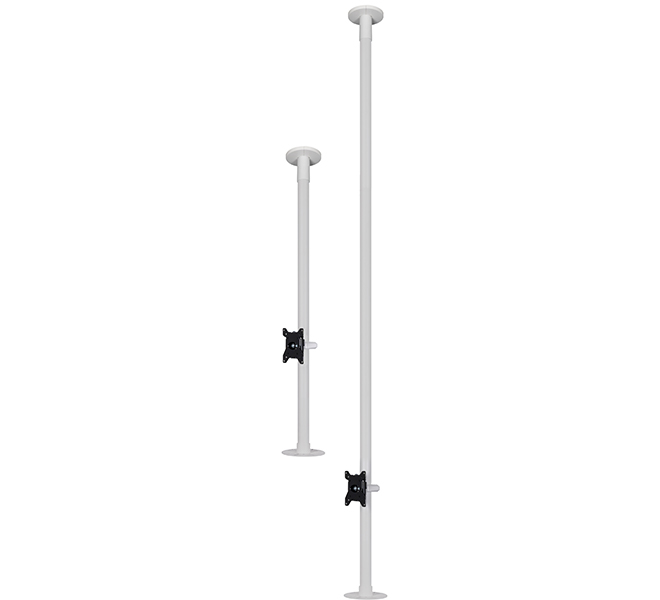

  • Available in a choice of two different drop lengths
  • Multiple grub screws allow micro-adjustment of the pole to ensure a perfectly angled drop
  • Safety bolts ensure pole and mount are securely joined

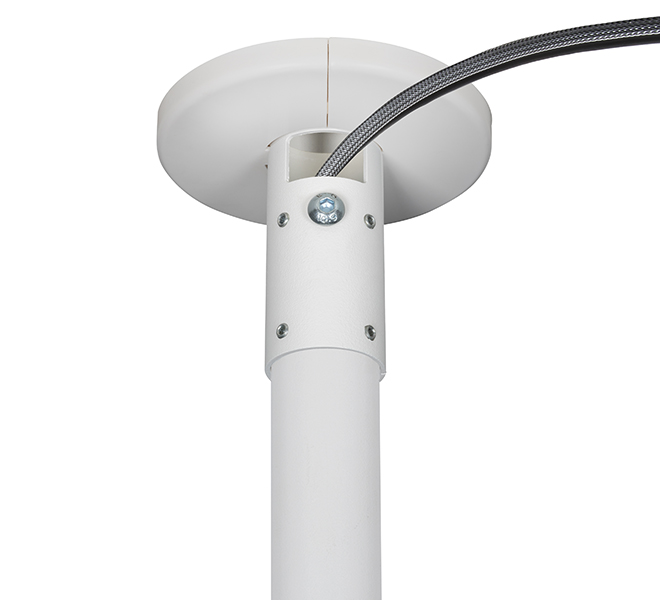

  • Integrated cable management allows cables to pass through the centre of the pole to a screen and out through the top or side of the ceiling mount
  • Recommended screen size: up to 28" (71cm)
  • Max. screen load: 20kg (44lbs)
  • Max. camera load: 5kg (11lbs)

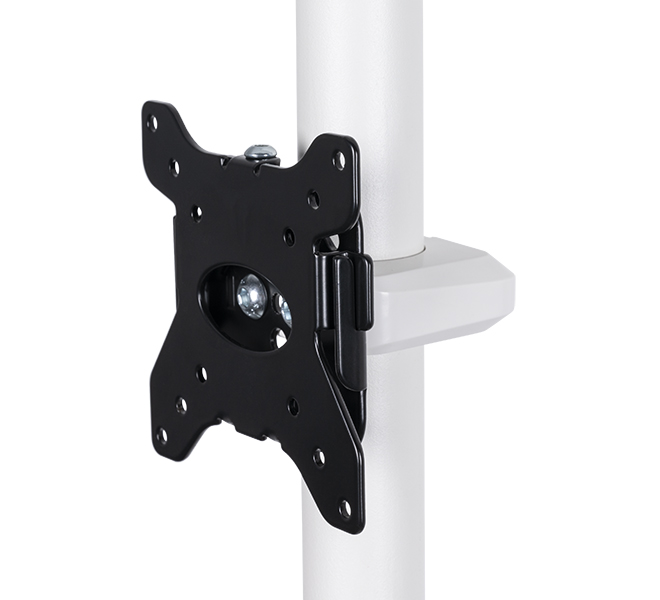

  • VESA® screen compatibility: up to 100x100
  • BT5962-FD100 pole length: 1036mm (40.8")
  • BT5962-FD200 pole length: 2036mm (80")

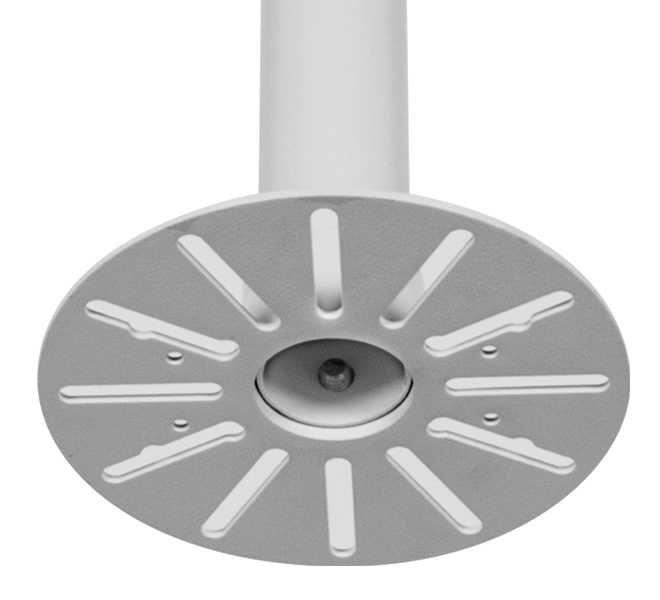

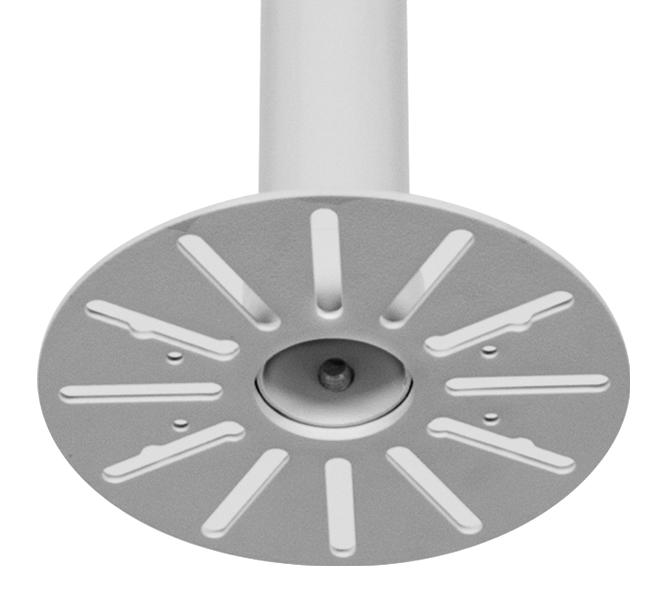

  • Camera fixing dimensions: 51mm (2") - 127.5mm (5")
  • Colour: White
BT5962 - Mounts both a dome shaped cctv camera and a flat screen monitor from the ceiling BT5962 - VESA® screen compatibility up to 100x100 BT5962 - Multiple mounting points for cameras with fixing points up to 144mm diameter BT5962 - Integrated cable management through the top and side of the ceiling mount

Product Specification Sheets

Specification Sheet - English (PDF)

Fiche de Spécifications - Français (PDF)

Specificatieblad - Nederlands (PDF)

Hoja de especificación - Español (PDF)

Spezifikationsblatt - Deutsch (PDF)



Assembly Leaflet

Installation Guide (PDF)



Technical Drawings

Technical Drawing FD100 (PDF)

Technical Drawing FD200 (PDF)
