Flat Screen Ceiling Mount


For VESA® 100 Screens


The BT5970 is a flat screen ceiling mount designed for screens up to 28" / 20kg. Available with a 1 or 2 metre ceiling drop, the BT5970 features integrated cable management allowing cables to run through the centre of the pole and out through either the top or side of the ceiling mount, ensuring finished installations are neat and tidy. For longer drops, the pole length can be extended with a joiner (BT5924) and additional poles (BT5935) from the System V Range, whilst accessories can be added with the use of additional ø38mm accessory collars (BT5952) and compatible accessory mounts.



  BT5970 - Ceiling Mount for VESA® 100 Screens
  • Mounts a small flat screen to the ceiling
  • Available in a choice of two different drop lengths
  • Multiple grub screws allow micro-adjustment of the pole to ensure a perfectly angled drop
  • Safety bolts ensure pole and mount are securely joined
  • Integrated cable management allows cables to pass through the centre of the pole to the
    CCTV scren mount and out through the top or side of the ceiling mount
  • Recommended screen size: up to 28" (71cm)
  • Max. load: 20kg (44lbs)
  • VESA® compatibility: up to 100mm x 100mm
  • BT5970-FD100 pole length: 1019mm (40")
  • BT5970-FD200 pole length: 2019mm (79.5")
  • Colour: White

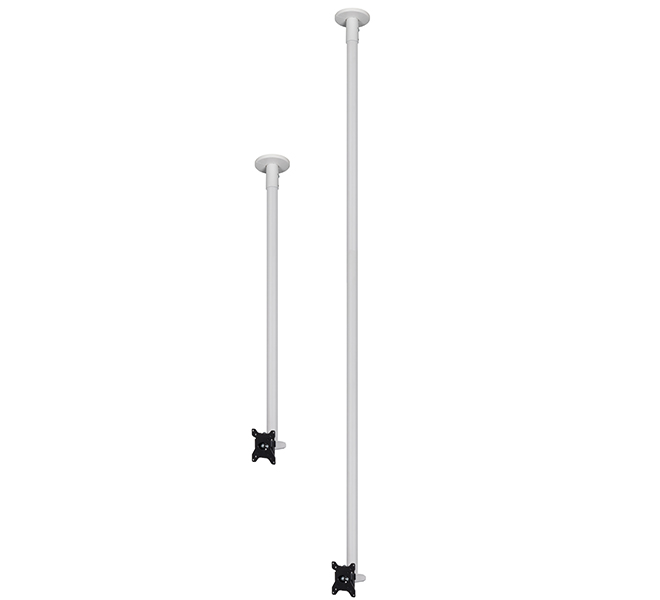

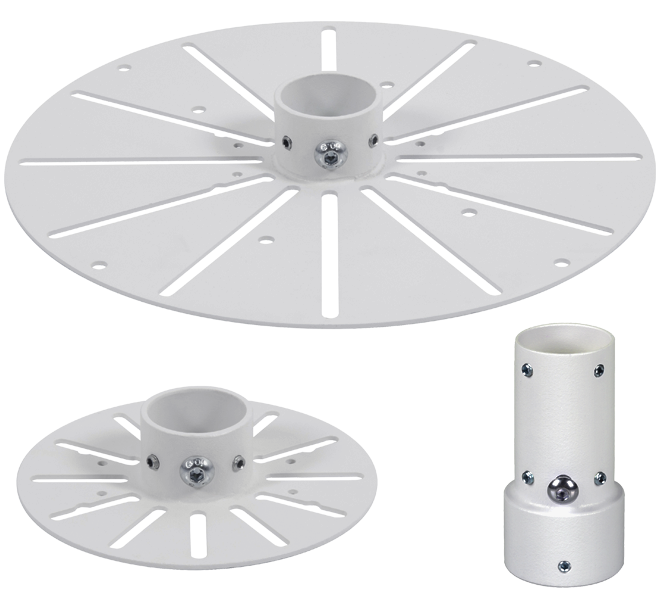

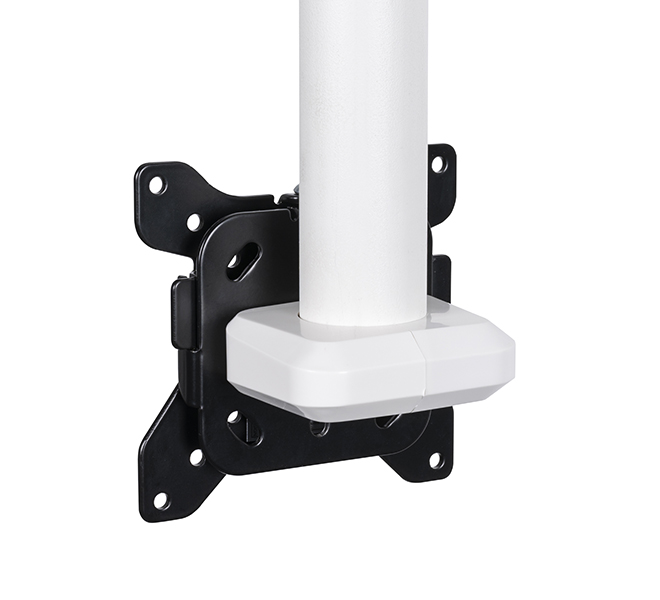

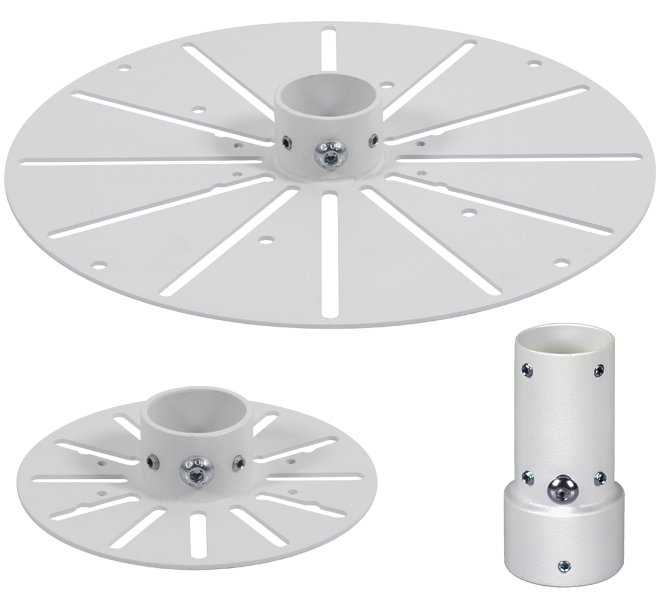

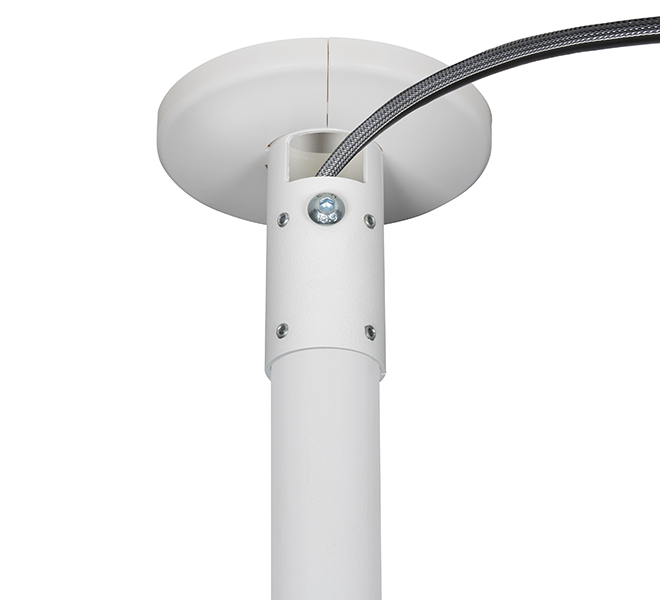

BT5970 - Flat Screen Ceiling Mount for VESA 100 Screens BT5970 - Integrated cable management through the top and side of the ceiling mount BT5970 - Screen mount features cover plates for a tidy installation BT5970 - Component range also available for custom installations

Product Specification Sheets

Specification Sheet - English (PDF)

Fiche de Spécifications - Français (PDF)

Specificatieblad - Nederlands (PDF)

Hoja de especificación - Español (PDF)

Spezifikationsblatt - Deutsch (PDF)


Installation Guide

Installation Guide (PDF)


Technical Drawings

Technical Drawing FD100 (PDF)

Technical Drawing FD200 (PDF)
