I-Beam / Girder Mount

BT7017

For Ø50mm Poles




The BT7017 enables the suspension of pole mounted solutions up to 140kg from I-Beam girders. Compatible with B-Tech’s range of BT7850 Ø50mm poles the locking bolt securely sets the pole vertically at any angle up to 36 degrees.






  • Adjustable I-Beam (girder) mount for use with 50mm poles
  • Locking bolt included to securely set the pole vertical at any angle up to 40°
  • Fits I-Beams and thick steel from 80mm (3.1") - 250mm (9.8") in width
  • Integrated cable management
  • Max load: 140kg (308lbs)
  • Tilt: up to +/- 36°
  • Adjustable width 80mm (3.1") - 250mm (9.8")

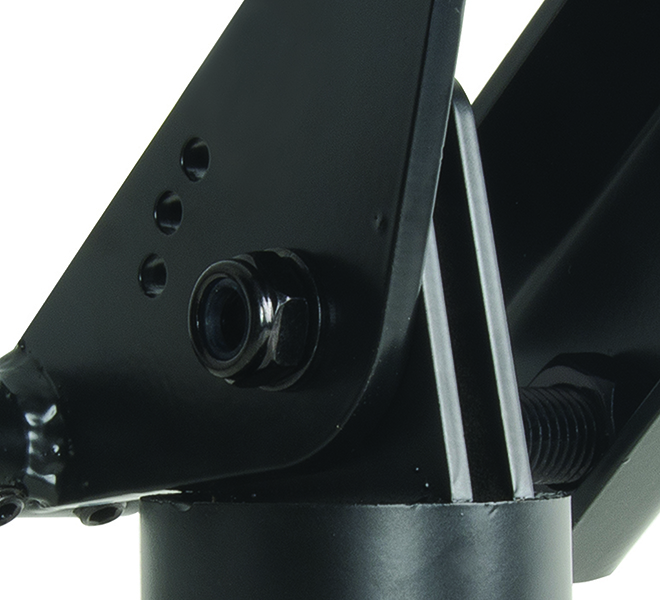

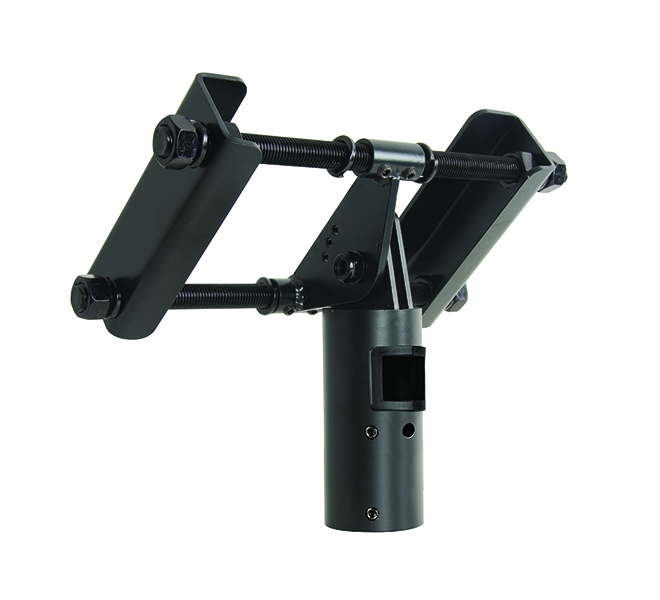

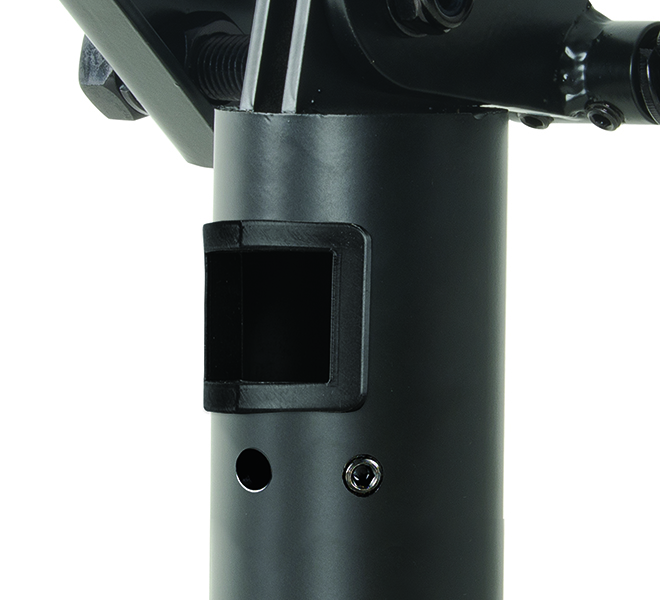

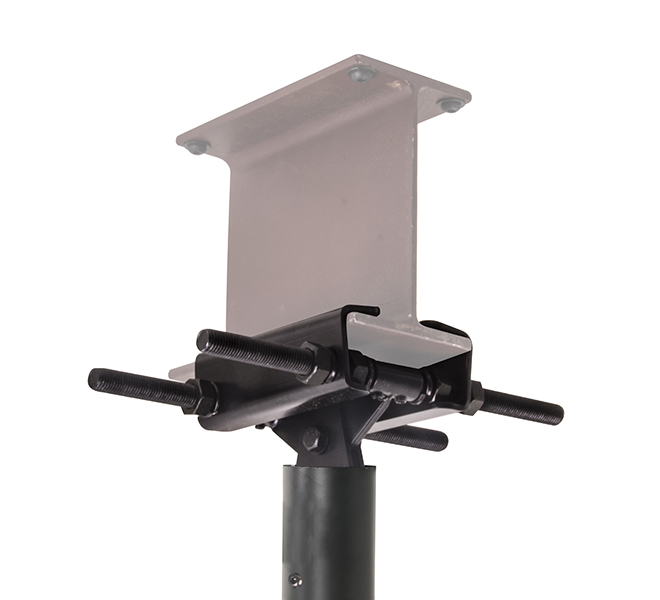

BT7017 I-Beam (Girder) Mount for 50mm Poles - Front View BT7017 - Locking bolt included to securely set the pole vertical at any angle up to 36° BT7017 - Fits I-Beams and thick steel from 80mm - 250mm in width BT7017 - Integrated cable management

Specification Sheet

Specification Sheet (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)



Greensheet

Greensheet (PDF)
