Interface Adaptor Arms

BT7566

For VESA® 900x400

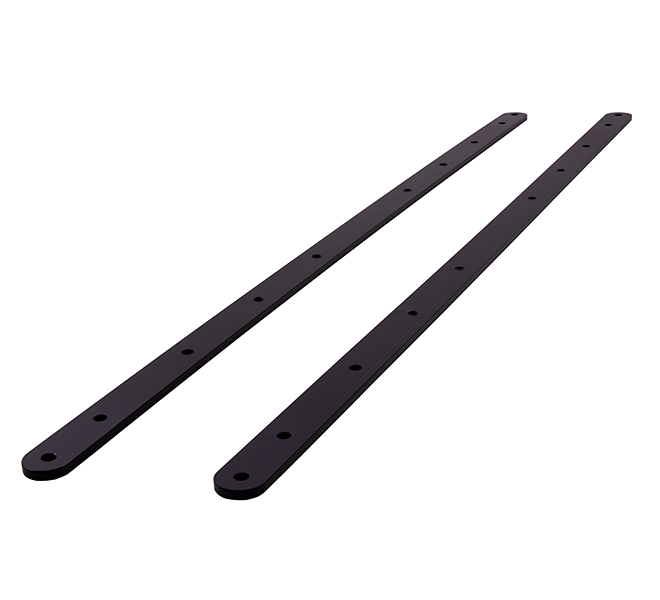

Designed to increase the VESA mounting pattern of smaller mounts to accommodate larger screens, the BT7566 allows VESA 400 fixings to be increased to VESA 900. These adaptor arms are ultra-slim to keep the depth of the install to a minimum and can be used with existing B-Tech products, such as the BT8310, BT8310XL and System X interface arms. All mounting hardware included.





  BT7566 - Interface adaptor Arms for vesa® 900 x 400

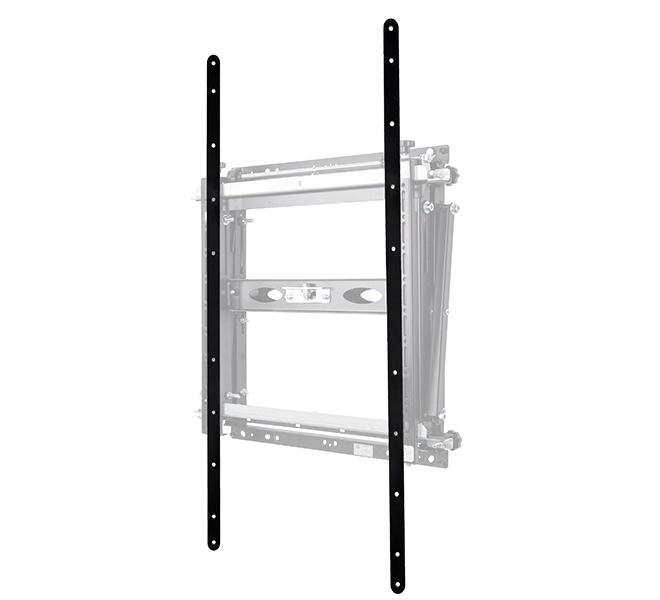

  • Attaches to a VESA 400 mount, increasing fixings to VESA 600, 800 or 900

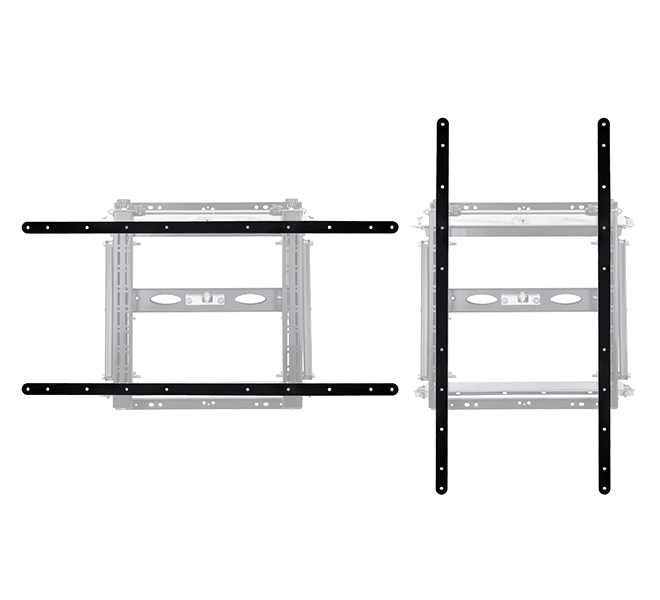

  • Can be used for both landscape and portrait installations
  • Adaptor arms are ultra-slim to keep the depth of the install to a minimum
  • Can be used with a large variety of B-Tech products such as the
    BT8310, BT8310XL and System X™ Interface Arms
  • Easily fixes onto interface plates / arms using the screws provided
  • Can be used in conjunction with another pair of adaptor arms
    (BT7564/BT7565/BT7566) to increase VESA mounting patterns
  • VESA® compatibility: 600mm (23.6"), 800mm (31.5") or 900mm (35.4")
  • Max load: dependent on mount to which the BT7566 is attached

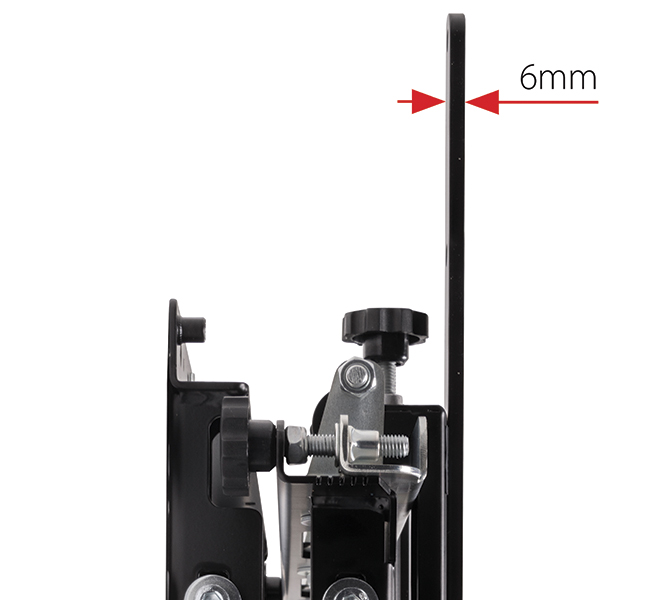

  • Depth increase to the install: 6mm (0.23")
  • Colour: Black
BT7566 - Interface adaptor Arms for vesa® 900 x 400 Can be used to accommodate both landscape and portrait installations Adaptor arms are ultra-slim to keep the depth of the install to a minimum Can be used with a large variety of existing B-Tech products such as the BT8310, BT8310XL and System X™ Interface Arms

Specification Sheet

Specification Sheet (PDF)



Installation Guide

Installation Guide (PDF)

You must log in to view this content
