Pop-Out Videowall Mount

BT8310

For Screens up to 70kg




Designed to make videowall installations as quick and simple as possible, this modular videowall mount can be used to create unlimited videowall configurations in both landscape and portrait format. The BT8310 features a pop-in, pop-out system which enables quick and easy access to the rear of mounted screens for servicing and maintenance and 8 point micro-adjustment, making accurate screen alignment quick and easy.

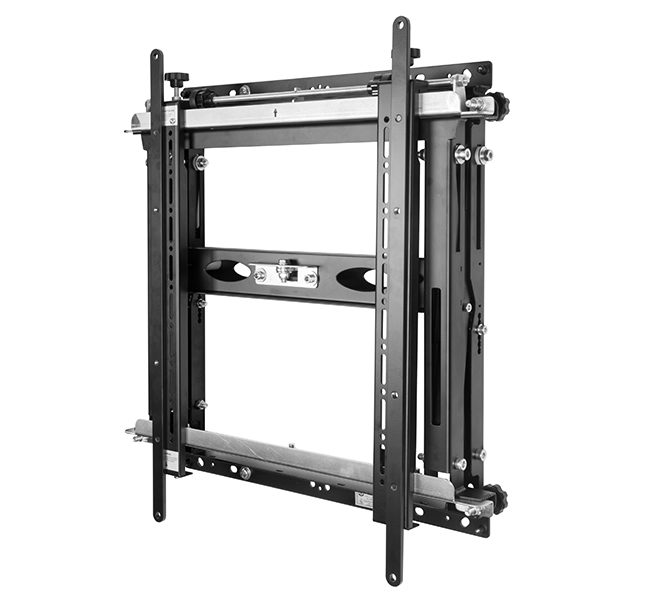

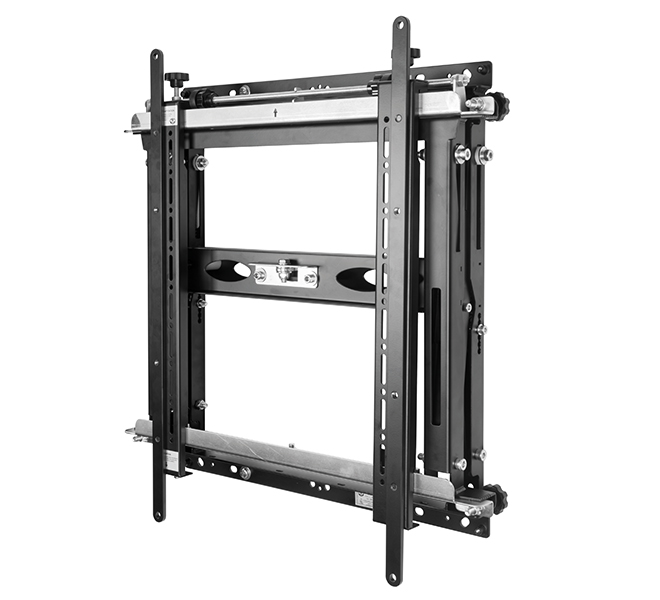

BT8310 Professional Video Wall Mount with Quick Lock Push System


  • Modular mount for unlimited wall display configurations
  • Suitable for landscape or portrait screen mounting

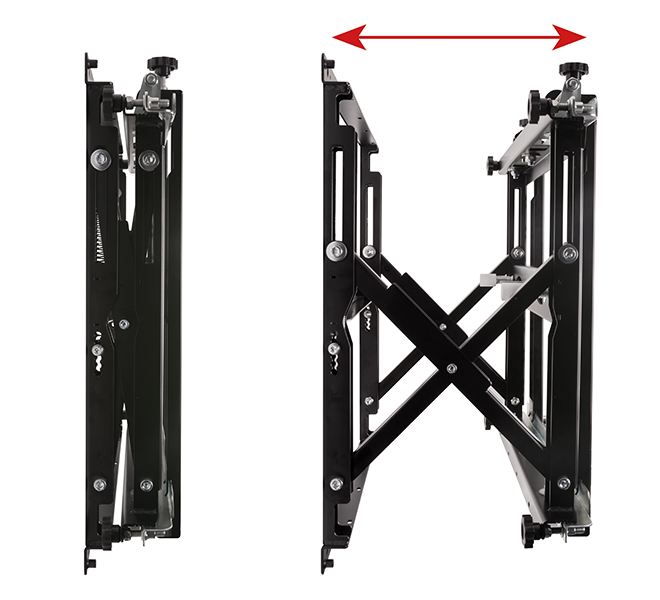

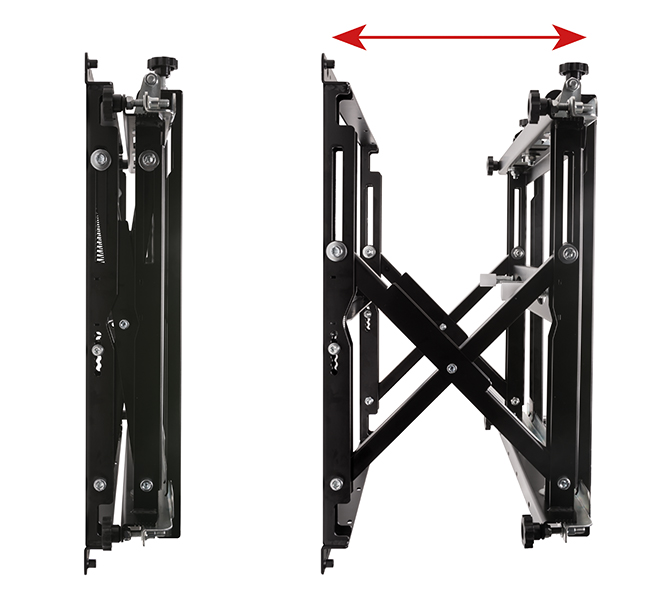

  • Push to open / push to close system provides quick and easy service access

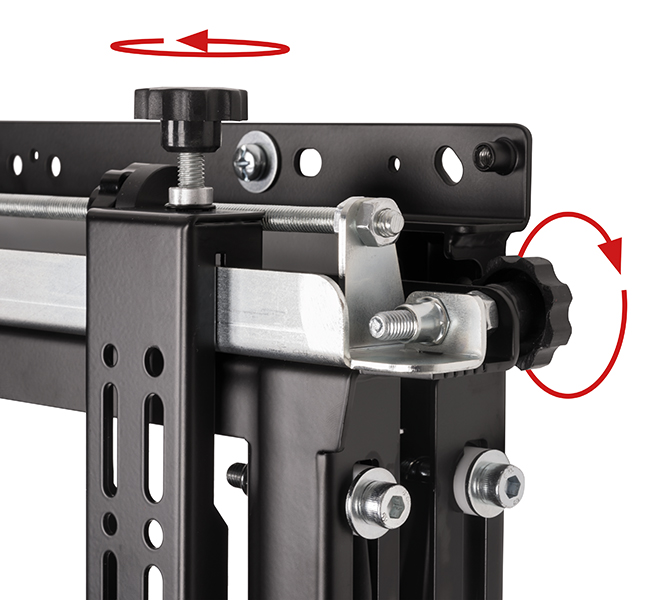

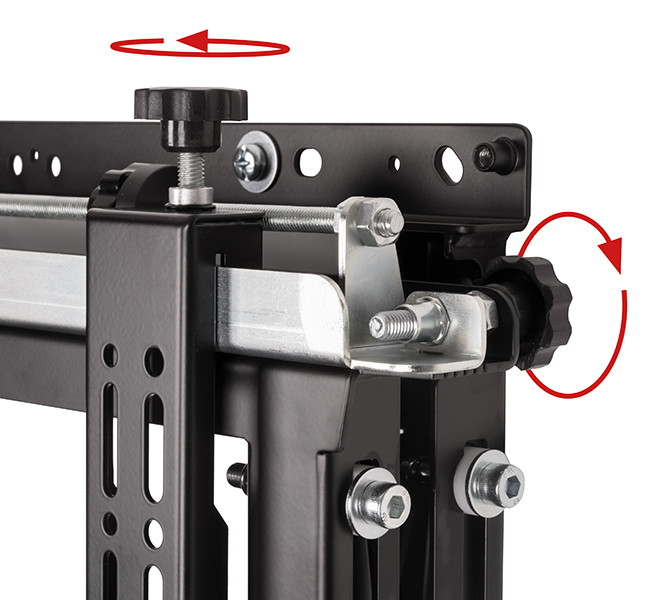

  • Tool-less micro-adjustments at 8 points for seamless display alignment
  • Suitable for both wall or pole mounting
  • Integrated cable management
  • Screen specific wall plate spacers (available separately) dramatically shorten install times by eliminating guesswork and on-site calculations
  • Perfect solution for mounting screens into a recessed wall
  • Locking kit (BT8310-LK) to prevent accidental pop-out of mount is also available (separately)
  • Safety screws help prevent unauthorised removal of screens
  • Includes Interface Adaptor Arms as standard (pictured below) for use with screens
    with VESA 600 x 400 fixings
  • All mounting hardware included
  • Recommended screen size: 42" (106cm) - 75" (190cm)
  • Max load: 70kg (154lbs)
  • VESA® compatibility (as standard): 200 x 100 to 400 x 400
  • VESA® compatibility (with included adaptors): up to 600 x 400*
  • Depth flat: 101mm* (4") (+/-7mm (0.3") with micro-adjustment)
  • Depth popped out: 293mm* (11.5") (+/-7mm (0.3") with micro-adjustment)
  • Screen height adjustment: +15mm (0.6")

    *Please note using the included Interface Adaptor Arms to mount VESA 600 x 400 screens will increase the total depth of the product by 6mm (0.2"), for a total depth of 107mm (4.2"), or 299mm (11.8") whilst popped out (+/-7mm (0.3") micro-adjustment).

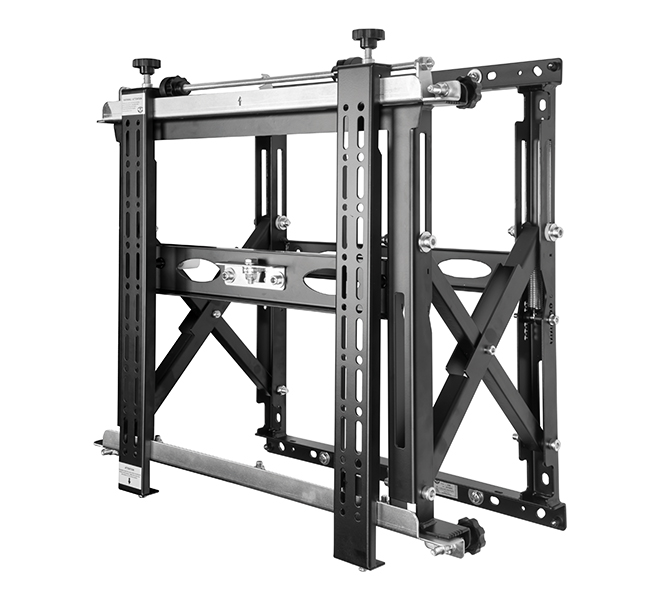

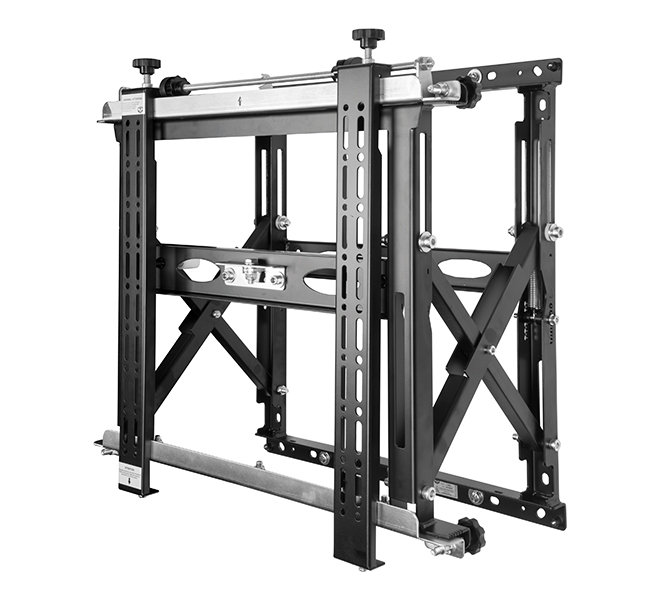

BT8310 Professional Video Wall Mount with Quick Lock Push System - Extended Push to open / push to close system provides quick and easy service access Tool-less micro-adjustment at 8 points for seamless display alignment Optional BT7564 Interface Adaptors for VESA 600 x 400 fixings included as standard

Product Overview Video



Videowall Installation



Recess Mount Your Screen
VESA Adaptors and Spacers for BT8310
BrandModelScreen SizeSpacer Available
LG42WS50B*42" (961 x 555mm)BT8310-SP422/N*
PHILIPS
BDL425242" (966 x 559mm)BT8310-SP423/N*
SAMSUNGUD46D46" (1022 x 577mm)BT8310-SP461/N
BARCOEVD-462146" (1024 x 578mm)BT8310-SP461/N
BARCONSL-462146" (1024 x 578mm)BT8310-SP461/N
CHRISTIEFHD461-X46" (1024 x 578mm)BT8310-SP461/N
SAMSUNGUD46C46" (1024 x 578mm)BT8310-SP461/N
NECX461UN46" (1026 x 580mm)BT8310-SP461/N
NECX462UN46" (1026 x 580mm)BT8310-SP461/N
NECX463UN46" (1026 x 580mm)BT8310-SP461/N
NECX464UN46" (1024 x 579mm)BT8310-SP461/N
NECX464UN-246" (1026 x 580mm)BT8310-SP461/N
ORION46RNCS46" (1026 x 580mm)BT8310-SP461/N
HANTAREX46-UNB46" (1026 x 580mm)BT8310-SP461/N
PHILIPSBDL467746" (1024 x 579mm)BT8310-SP461/N
PHILIPSBDL4675XU46" (1026 x 578mm)BT8310-SP461/N
PHILIPSBDL4681XU46" (1026 x 578mm)BT8310-SP461/N
SAMSUNG460UT-246" (1026 x 578mm)BT8310-SP461/N
SAMSUNGUD46A46" (1024 x 578mm)BT8310-SP461/N
SAMSUNGUD46C46" (1024 x 578mm)BT8310-SP461/N
SAMSUNGUE46A46" (1030 x 585mm)BT8310-SP462/N
SAMSUNGUE46C46" (1030 x 585mm)BT8310-SP462/N
SAMSUNGME46B46" (1056 x 612mm)BT8310-SP463/N
SAMSUNGUE46D46" (1031 X 585mm)BT8310-SP462/N
NECX464UNS-246" (1022 x 576mm)BT8310-SP464/N
LG4720C47" (1080 x 625mm)BT8310-SP472/N
LG49VL5B49" (1077 x 607mm)BT8310-SP491/N
LG55WV7055" (1215 x 686mm)BT8310-SP551/N
LG55LV35A-5B55" (1215 x 686mm)BT8310-SP551/N
LG55LV75A55" (1215 x 686mm)BT8310-SP551/N
LG55LV77A55" (1215 x 686mm)BT8310-SP551/N
LG55VH7B55" (1211 x 682mm)BT8310-SP554/N
LG47WV5047" (1045 x 590mm)BT8310-SP471/N
LG47LV35A-5B47" (1047 x 592mm)BT8310-SP471/N
BARCOMVD-552155" (1215 x 686mm)BT8310-SP551/N
BARCONSL-552155" (1215 x 686mm)BT8310-SP551/N
CHRISTIEFHD551-X55" (1215 x 686mm)BT8310-SP551/N
PANASONICTH-55LFV5W55" (1215 x 686mm)BT8310-SP551/N
PANASONICTH-47LFV5W47" (1047 x 592mm)BT8310-SP471/N
PHILIPSBDL4988XL49" (1077 X 607mm)BT8310-SP491/N
PHILIPSBDL5585XL55" (1215 x 686mm)BT8310-SP551/N
PHILIPSBDL558655" (1215 x 686mm)BT8310-SP551/N
NECX551UN55" (1215 x 686mm)BT8310-SP551/N
NECX554UN55" (1215 x 686mm)BT8310-SP551/N
ORION55RNCS55" (1215 x 686mm)BT8310-SP551/N
SAMSUNGUD55A55" (1215 x 686mm)BT8310-SP551/N
SAMSUNGUD55C55" (1215 x 686mm)BT8310-SP551/N
SAMSUNGUD55D55" (1215 x 686mm)BT8310-SP551/N
SAMSUNGUE55A55" (1222 x 693mm)BT8310-SP552/N
SAMSUNGUE55C55" (1222 x 693mm)BT8310-SP552/N
SAMSUNGUE55D55" (1222 x 693mm)BT8310-SP552/N
MITSUBISHIMDT552S55" (1248 x 719mm)BT8310-SP553/N
SHARPPN-V60060" (1336 x 755mm)BT8310-SP601/N
SHARPPN-V60160" (1336 x 755mm)BT8310-SP601/N
SHARPPN-V60260" (1336 x 755mm)BT8310-SP601/N

*This screen and spacer is not suitable for portrait mounting
