Adjustable Drop Ceiling Mount

BT7851

For Ø50mm Poles




BT7851 Adjustable Drop Ceiling Mount is designed for use with B-Tech’s System 2 and System X range of component based products. System 2 projector mounts fit directly to the bottom of the telescopic pole, back-to-back screen installations can be created using System X products, while B-Tech flat screen wall mounts can be attached to the pole using BT7841 accessory collars. System 2 poles can also be added to the ceiling mount for extended length using BT7823 or BT7824 pole joiners. BT7851 features a telescopic pole that allows the installation to be raised or lowered from 600m - 1000mm in 25mm increments and supports heavy loads of up to 100kg. Cover plates are included to hide ceiling fixings creating a smart and tidy finish.






  • Quick adjustable drop in 25mm increments for easy positioning of mounted screens
  • Compatible with a variety of existing B-Tech ranges such as System 2 and System X
  • Allows back-to-back configurations to be created when combined with BT8390-CFK
    Collar Fixing Kits or System X components
  • Compatible with all B-Tech Ø50mm accessory collars such as the BT7841
  • Poles are internally unobstructed for cables to pass through easily
  • Features safety bolt holes at top and bottom for secure installation
  • Poles can be added using BT7823 & BT7824 Pole Joiners
  • Cover plate and cable management included for a neat and tidy installation
  • Max load: 100kg
  • Ceiling drop: 600mm - 1000mm
  • Ceiling plate diameter (without cover plate): 150mm
  • Colour: Black

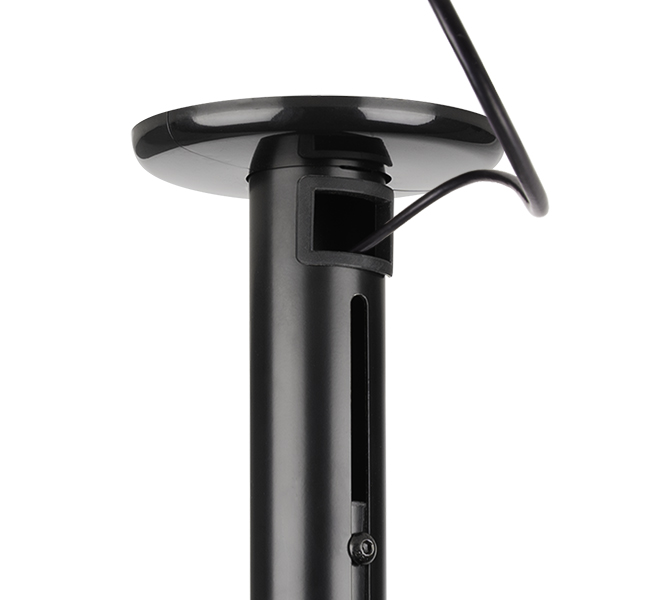

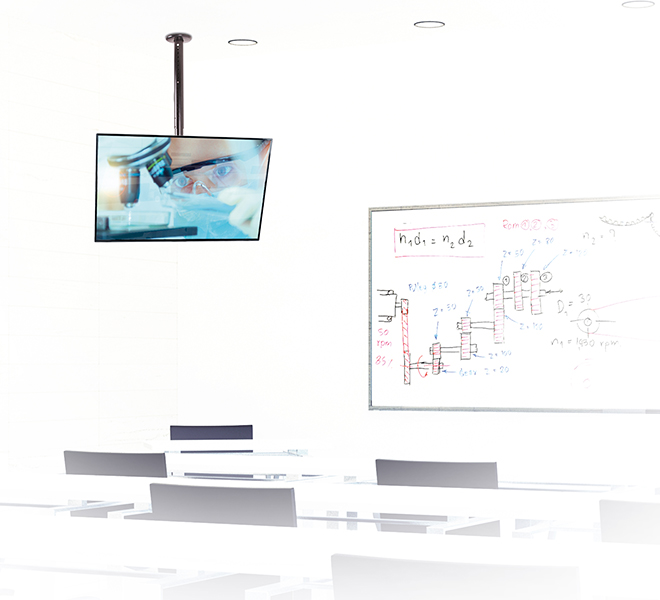

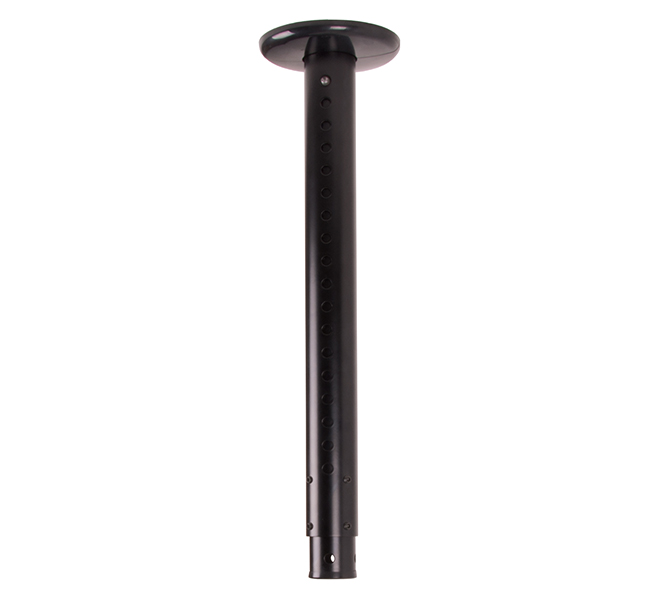

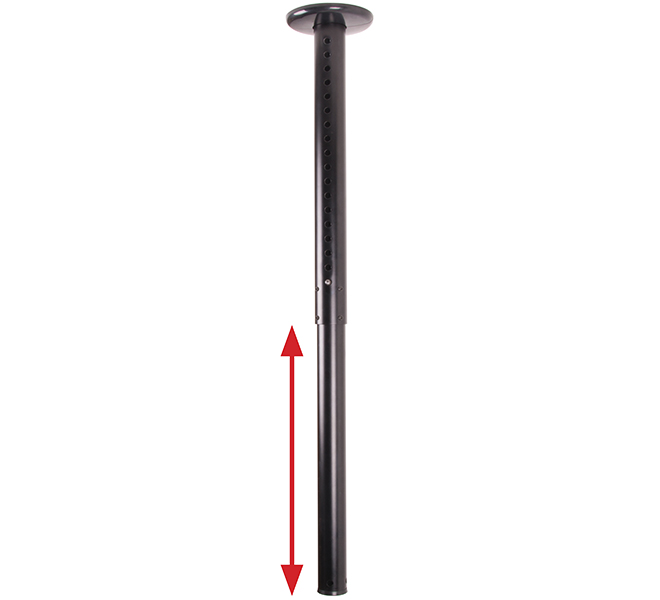

BT7851 Telescopic Ceiling Mount - Front View BT7851 Telescopic Ceiling Mount BT7851 Telescopic Ceiling Mount - Cable Management BT7851 Telescopic Ceiling Mount - Lifestyle Image

Installation Guide (PDF)

Specification Sheet (PDF)
