Flip-Down AV Storage Tray

BT7884

Max Load (for media storage): 10kg




The BT7884 is the ideal solution for fixing AV accessories such as power supplies, media players and video conferencing equipment to any solution that uses a BT8390 Mounting Rail - such as Mode-AL and System X stands. Equipment is easily fitted to the removable plate and simply attached onto the tray. A tool-less release lever and assisted soft open/close system allows the tray to smoothly swing between the open and closed positions, giving user access to the fitted equipment.







  • Designed to hold & hide AV accessories behind a display mount
  • Connects to System X mounting rails
  • Tool-less operation of tray movement with assisted soft open / close function
  • Quick release function of tray so equipment can be easily removed from tray and serviced
  • All accessories can be accessed, removed or added when in open position without screen removal
  • Can be mounted left or right sided in a portrait or landscape orientation
  • Additional trays available for purchase to allow for fast change over of AV equipment
  • Shallow profile, all mounting hardware included
  • Max storage load: 10kg (22lbs)
  • External dimensions: H:500mm (19.7") W:380mm (15") D:92mm (3.6")
  • Max width of stored AV equipment: 73mm (2.9")

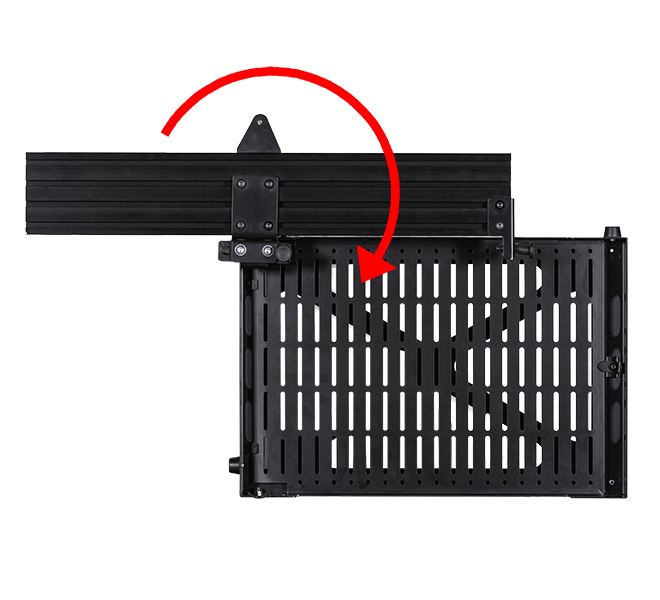

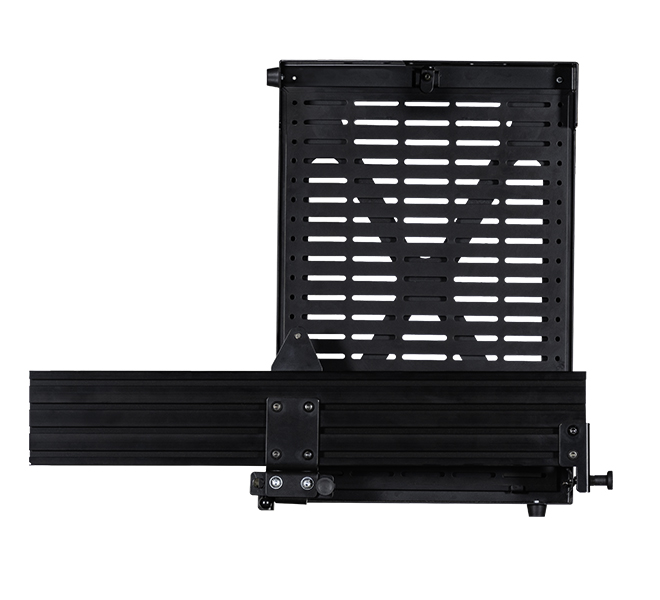

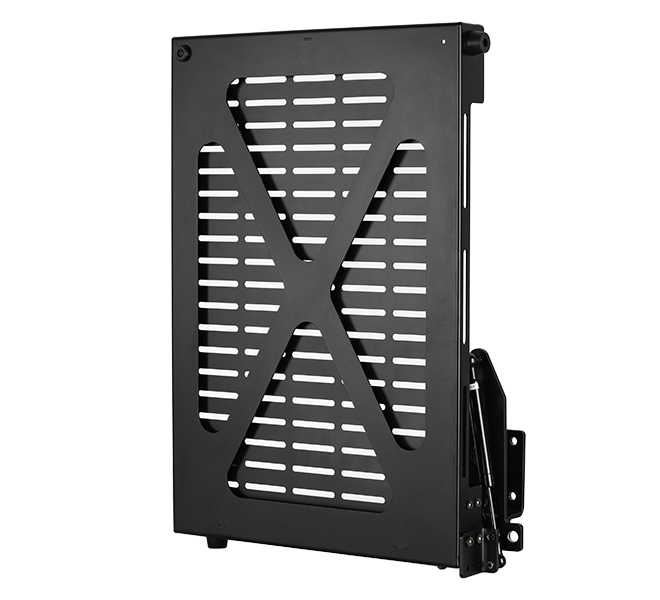

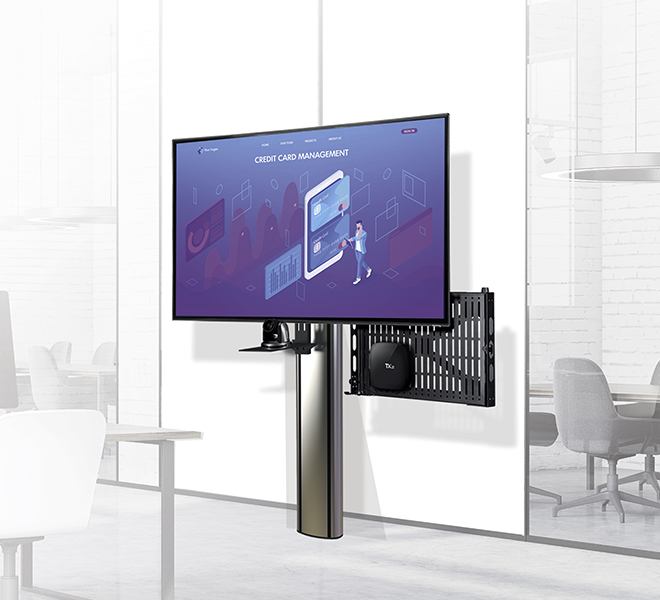

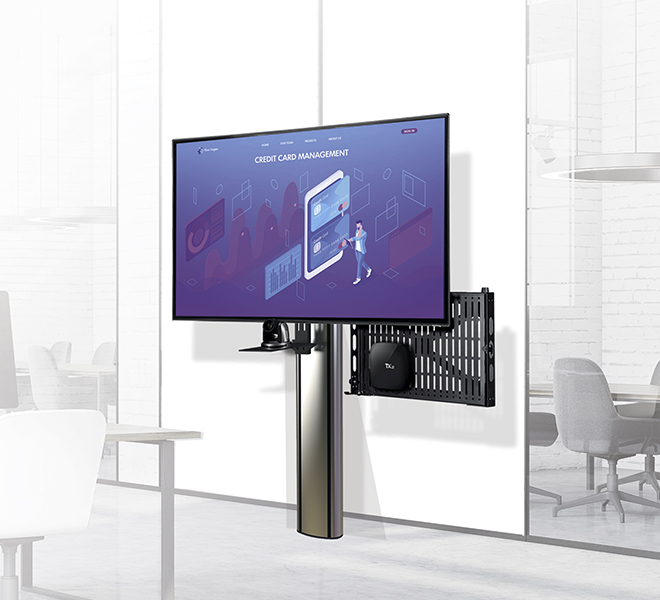

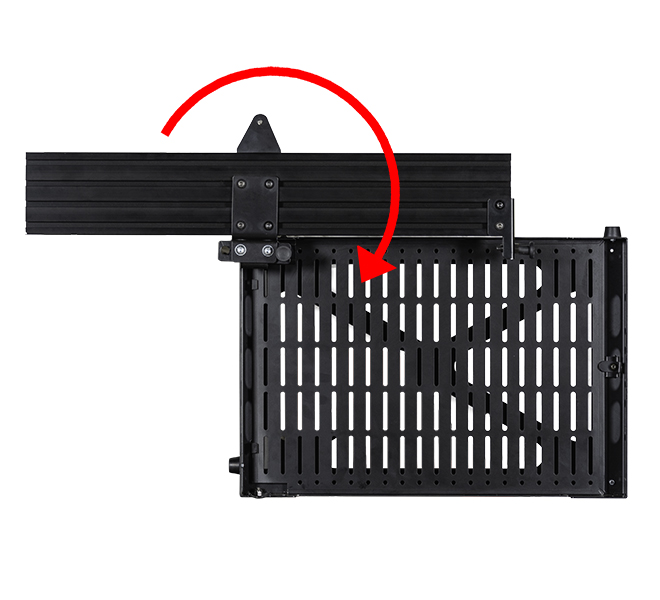

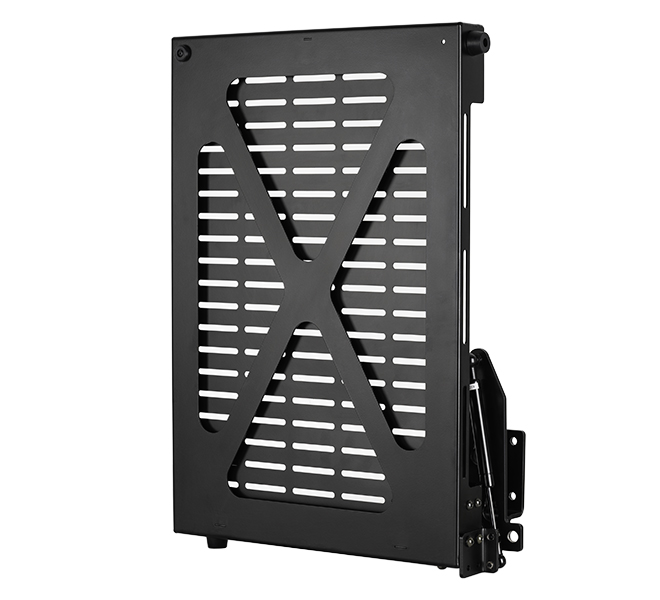

BT7884 - Flip-Down AV Tray BT7884 - Flip-Down AV Tray - Up BT7884 - Flip-Down AV Tray - Down BT7884 - Flip-Down AV Tray

Specification Sheets

Specification Sheet - English (PDF)

BT7884-TRAY Specification Sheet - English (PDF)



Technical Drawings

Technical Drawing (PDF)



Installation Guide

Installation Guide (PDF)
