Flat Screen Wall Mount with Pull-Down AV Storage Tray

BT7885

Easy Access to AV Equipment




The BT7885 is a screen mounting solution with an integrated pull-down tray for storing AV equipment behind the screen. mFeaturing a quick release equipment interface plate which can be mseparated from the mount, AV equipment can be easily added or removed from the install without needing to remove the screen first. The tray mechanism is tool-less for ease and speed of use, with the option to add a padlock (not included) to help prevent unauthorised access to the equipment. To ensure cables do not get tangled or pinched when the tray is opened and closed, an integrated cable management track moves in unison with the tray. The BT7885 is suitable for wall mounting as well as to B-Tech’s System 2 poles and System X/Mode-AL columns.







  • Flat screen mount designed to hold & hide AV accessories
  • Tool-less, operation & assisted release of the AV storage tray
  • Accessories can be accessed without screen removal
  • Interface arms include levelling screws to adjust the screen height

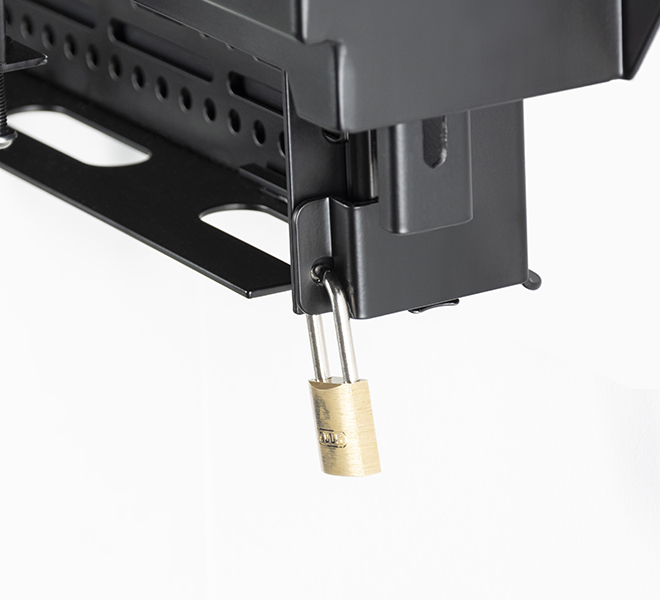

  • Locks in closed & open positions & can be secured with a padlock (not included)
  • Keyhole wall mounting for easy installation
  • Locks in closed & open positions & can be secured with a padlock (padlock not included)
  • Compatible with B-Tech's System X, Mode-AL columns & B-Tech collars
    for pole mounted installations
  • All mounting hardware included

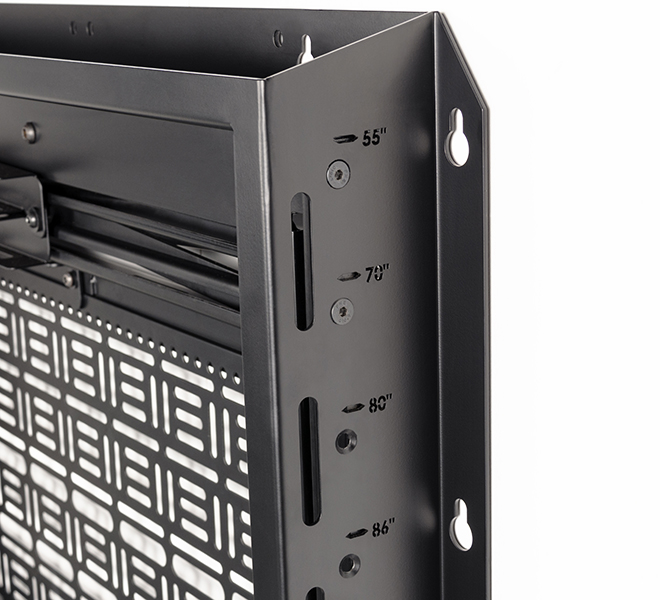

  • Recomended Screen Size: 49 - 86 inches
  • Max screen weight: 70kg
  • VESA fixings: up to 100 x 100 - 600 x 400
  • Depth from wall: 100mm
  • Max equipment dimensions: H:361mm W:575mm D:60mm
  • Max tray extension (from top of mount): 1192mm

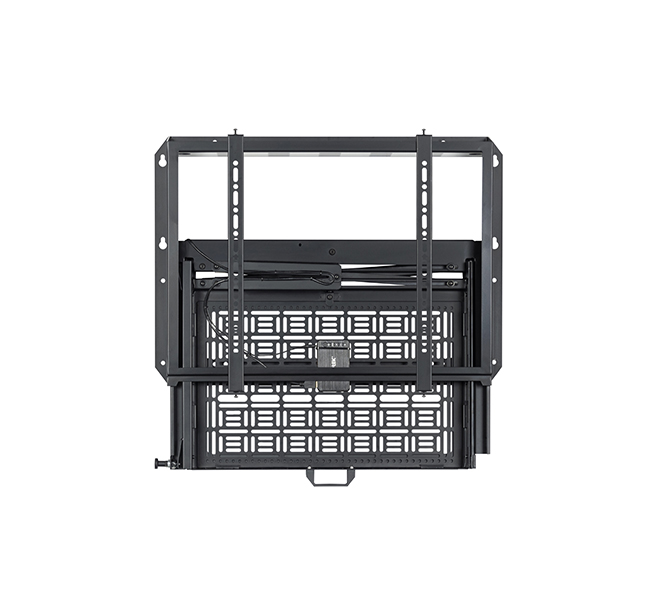

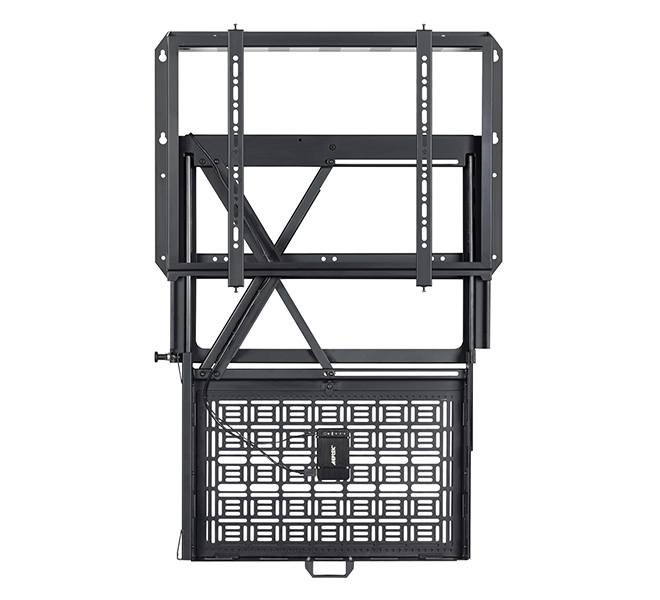

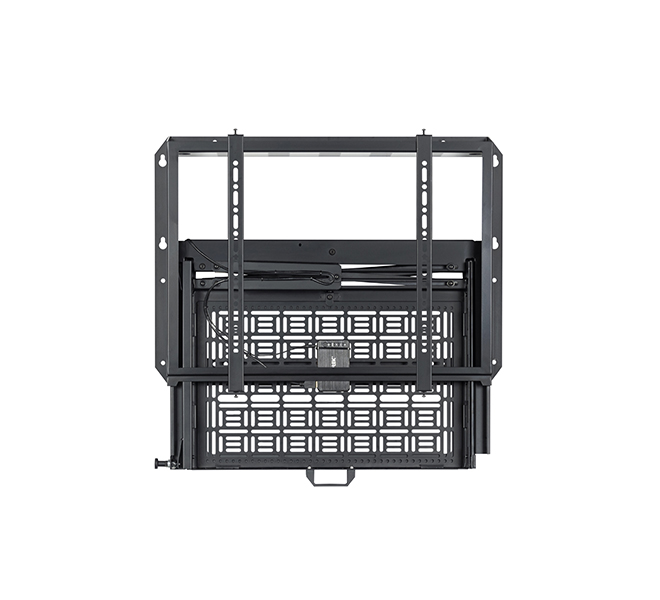

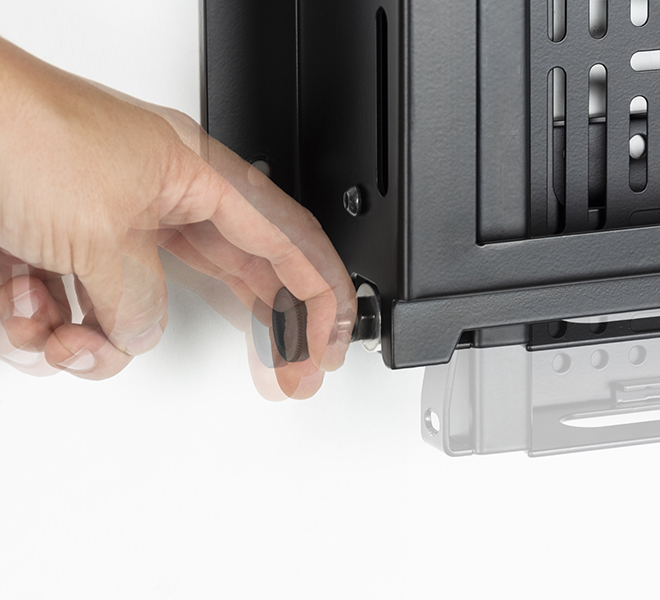

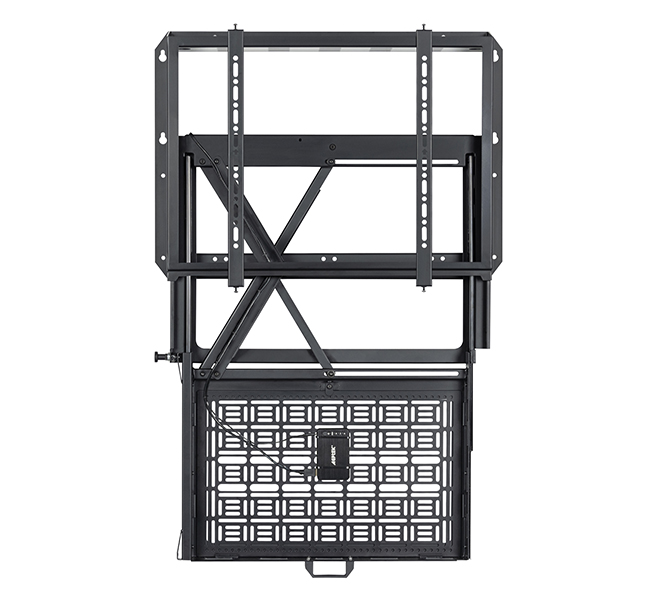

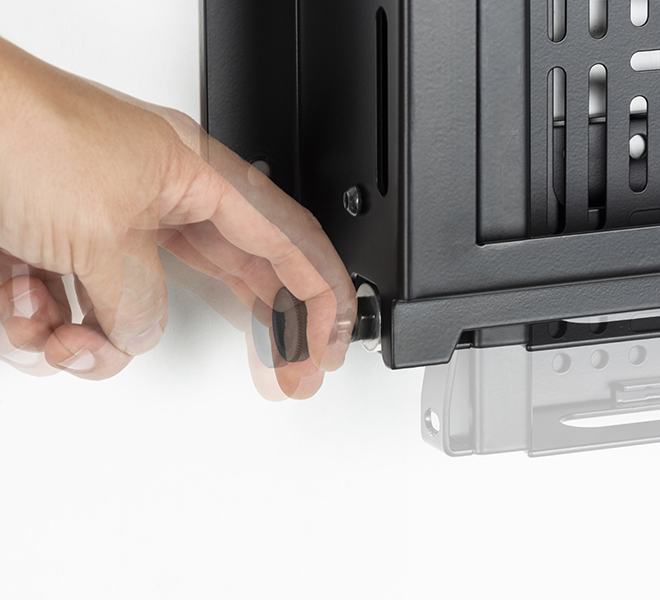

BT7885 - Flat Screen Wall Mount With Pull-Down AV Storage Tray BT7885 - Pull-Down AV Storage Tray Retracted BT7885 - Pull-Down AV Storage Tray Extended BT7885 - Pull-Down AV Storage Tray Release

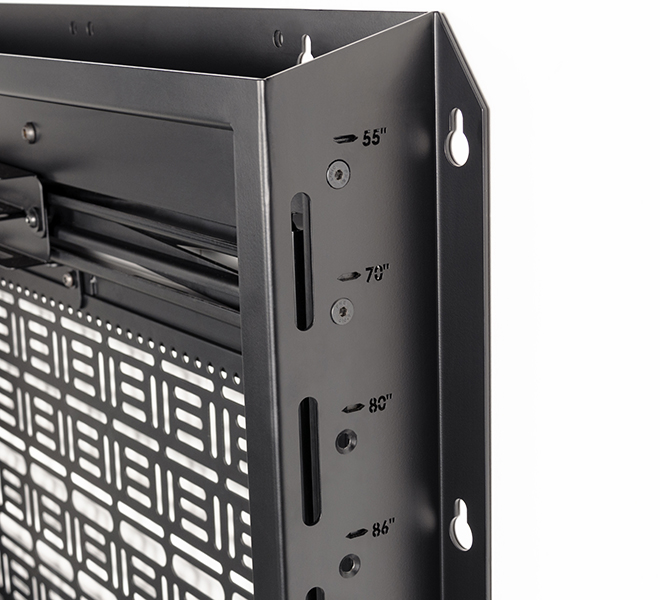

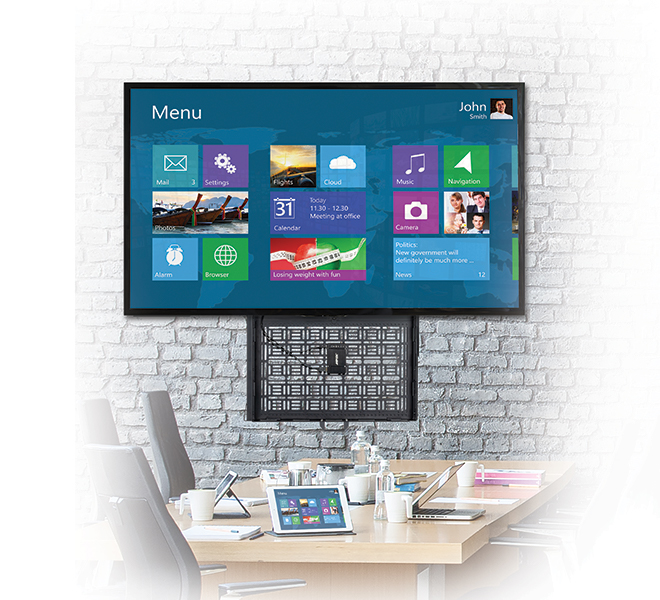

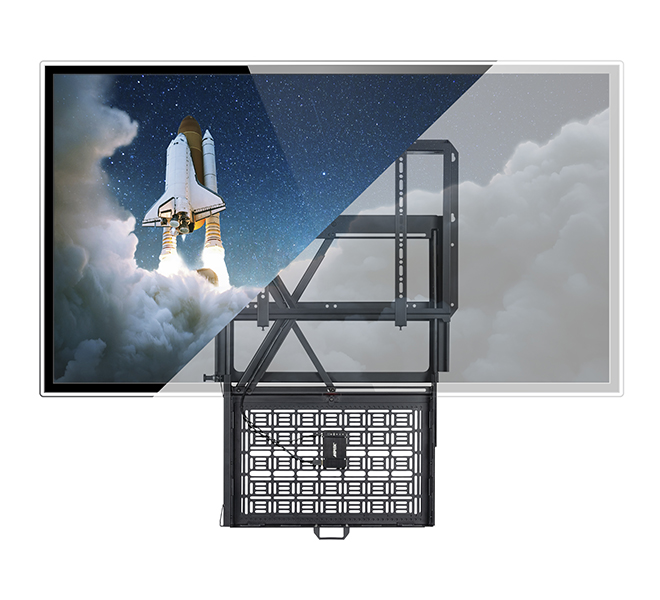

BT7885 - Adjusts to fit screens from 49 inches BT7885 -  Can be secured with a padlock (not included) BT7885 - Designed to hide AV equipment behind screens BT7885 - Flat Screen Wall Mount With Pull-Down AV Storage Tray
