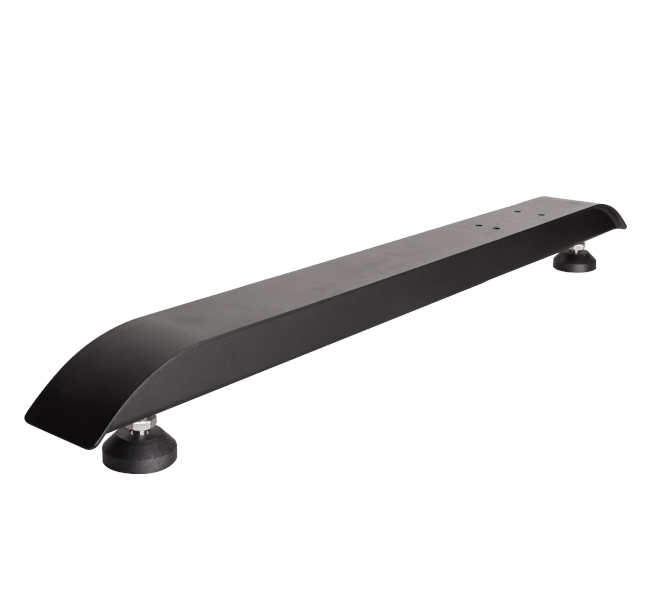

System X™ Floor Base

BT8380-BASE

For Trolleys And Stands

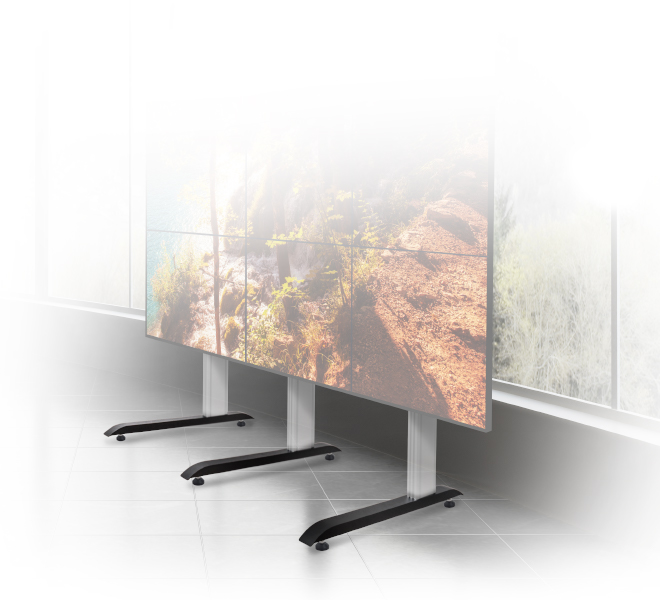

As part of the System X range the BT8380-BASE attaches directly to BT8380 Vertical Support Columns to create a secure foundation for freestanding or mobile screen mounting. The sturdy metal base is supplied with adjustable levelling feet for post-installation levelling, these feet can be removed and replaced with BT8380-CASTORS (4" Locking/Braked Castors) to create mobile mounting solutions. Bases are supplied as individual units, one base must be used per column.






  • Creates a secure foundation for System X vertical support columns
  • Attaches easily to vertical columns
  • Each base is supplied with levelling feet to allow for post installation levelling

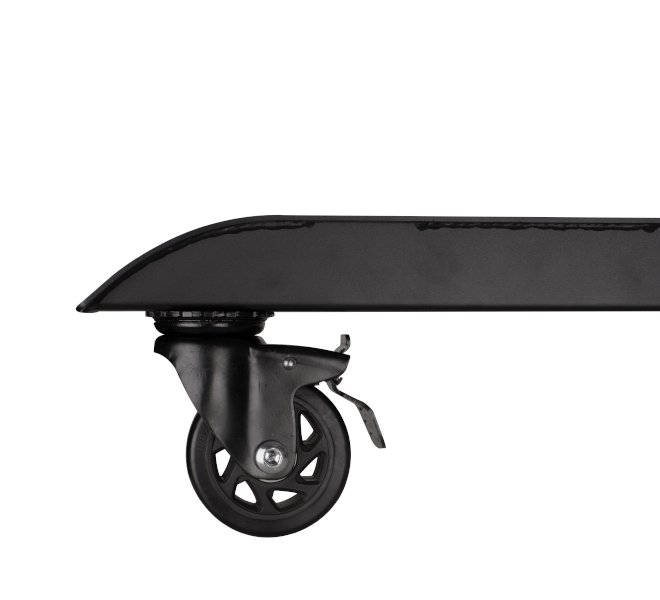

  • Can be used with BT8380-Castors (4" locking / braked castors, available separately)
    to create mobile solutions
  • Freestanding installs can be secured for added security using
  • BT8380-FBFK floor base fixing kit (available separately)
  • Supplied as individual units, one base must be used per column
  • High-end aesthetic quality
  • All mounting hardware included
  • Length: 950mm (37.4")
  • Width: 86mm (3.4")
  • Height (with levelling feet): 97.5mm (3.8") - 115.5mm (4.5")
  • Colour: Black
BT8380-BASE Floor Base for Trolleys and Stands Attaches easily to vertical columns Can be used with BT8380-CASTORS 4

Specification Sheet

Specification Sheet (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)

Technical Drawing (DXF)



Greensheet

Greensheet (PDF)
