System X™ Braked Castors

BT8380-CASTORS

For mobile installs

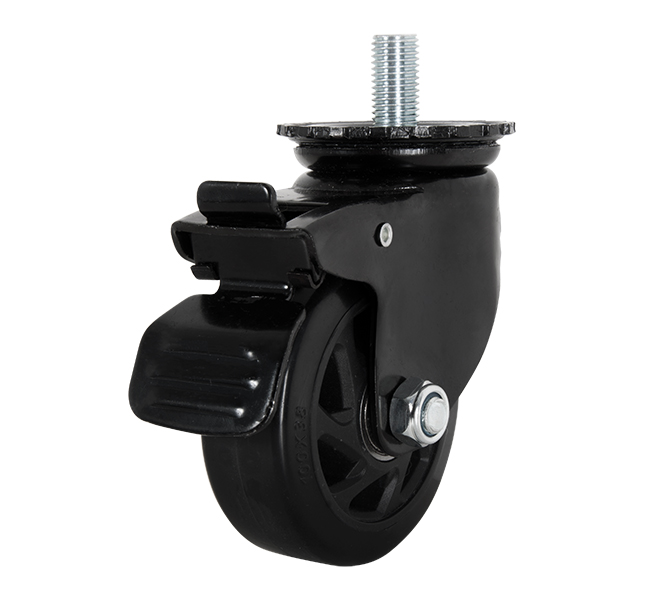

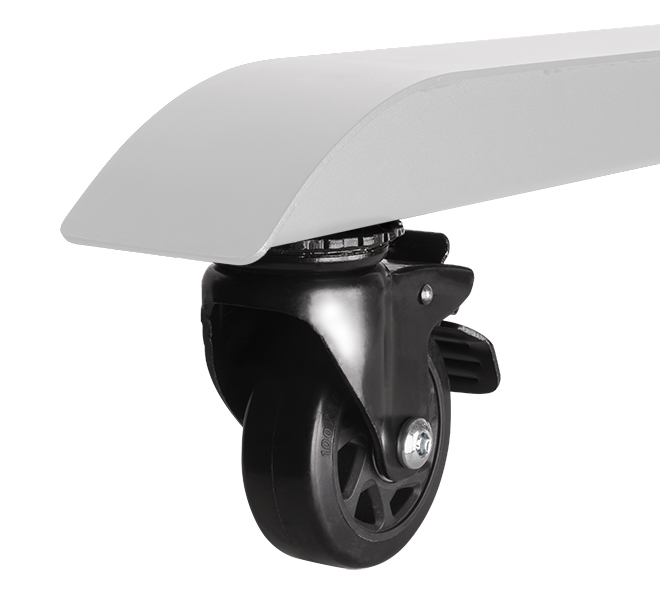

Designed to add mobility to System X stands, the BT8380-CASTORS screw directly into the BT8380-BASE and feature a 4" non-marking rubber wheel that won't damage floors when the solution is stationary or whilst being moved. Supplied in pairs, the castors come with an easy to use brake pedal that keeps installations firmly in place when needed but allows quick and simple repositioning as required.



TUV Logo

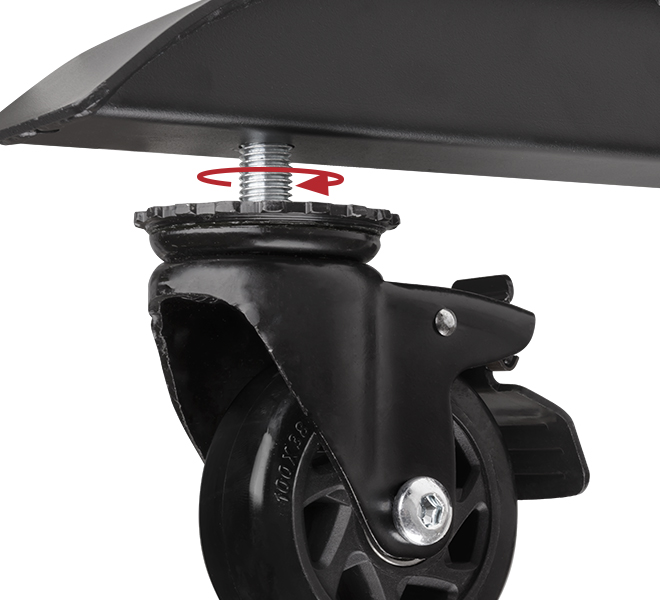

  • Screw directly into the underside of the BT8380-BASE to create a mobile mounting solution for System X
  • Non-marking castors allow installations to be re-positioned without damaging or scuffing floors

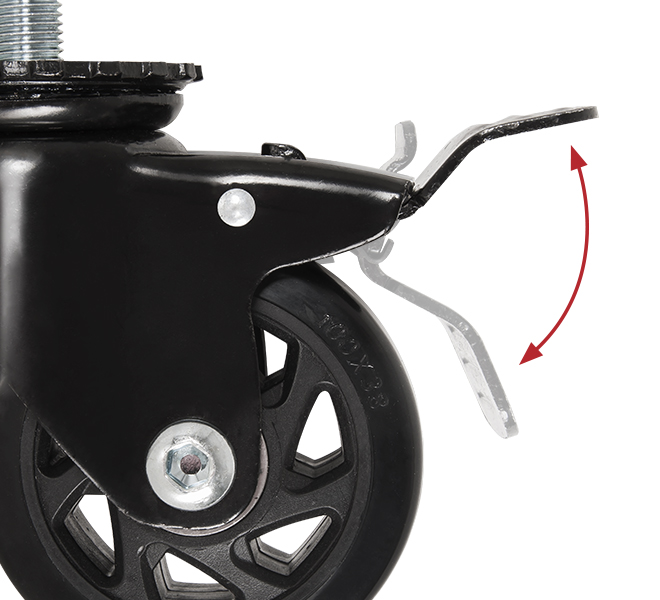

  • Features an easy to use on/off brake pedal that prevents installations from moving once
    they are positioned
  • Wheel diameter: 100mm (4")
  • Wheel width: 40mm (1.6")
  • Height (including base): 193mm (7.6")
  • Castors supplied per pack: 2
  • Colour: Black

Specification Sheet

Specification Sheet (PDF)



Parts List

Parts List (PDF)



Technical Drawing

Technical Drawing (PDF)

Technical Drawing (DXF)
