Floor-To-Wall Mounting Kit

BT8385-CTW

 Mode-AL Component Range




Designed to securely install BT8385 Vertical Columns close to a wall. The BT8385-CTW is made up from two parts; a wall plate that secures the BT8385 column to the wall and a base plate that secures the column to the floor with a minimal footprint. The brackets support substantial loads and are ideal for mounting AV installations in retail and office environments where a close to wall installation is preferred to avoid trip hazards.






  • For use with a BT8385 Vertical Column
  • Small footprint, ideal for retail applications where floor space is
    limited such as shop windows or for close to the wall displays
  • Heavy duty steel capable of supporting substantial loads
  • High-end aesthetic quality
  • Can be used to create large scale videowall installations - ideal for
    applications such as control rooms
  • Integrated cable management allows cables to run through the
    centre of the base and into the vertical column from under the floor
  • Max load 70kg (154lbs)
  • Distance from the wall to the front of column 100mm (3.9")
  • Colour: Black

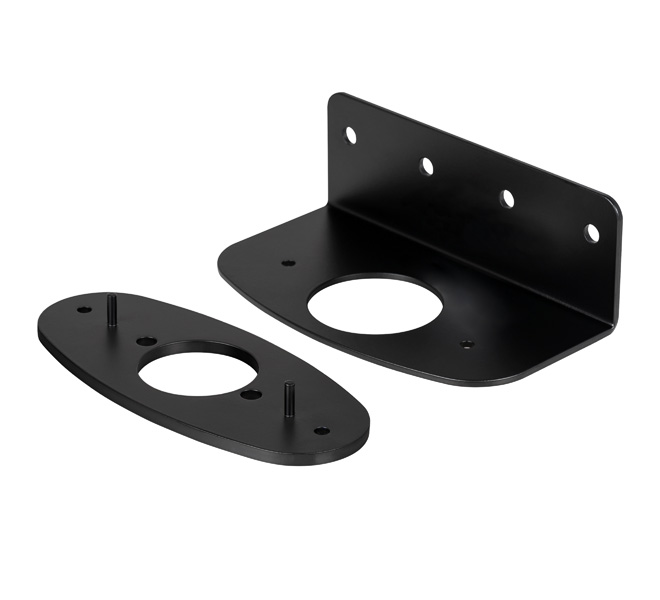

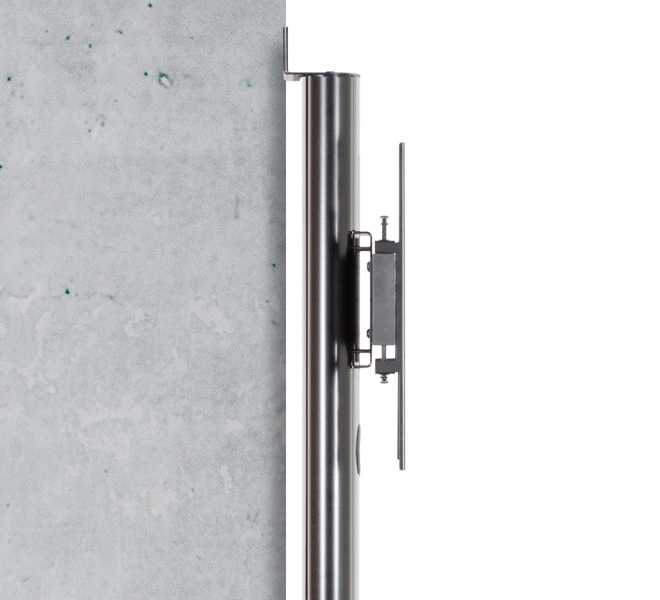

BT8385-CTW Floor-To-Wall Mounting Kit Close to the wall installation

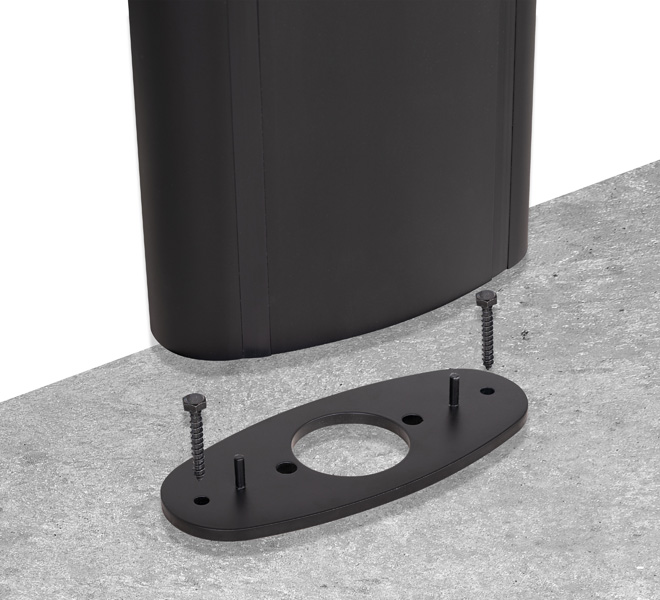

Base plate is fitted to the floor for a secure install using suitable fixings (not supplied)

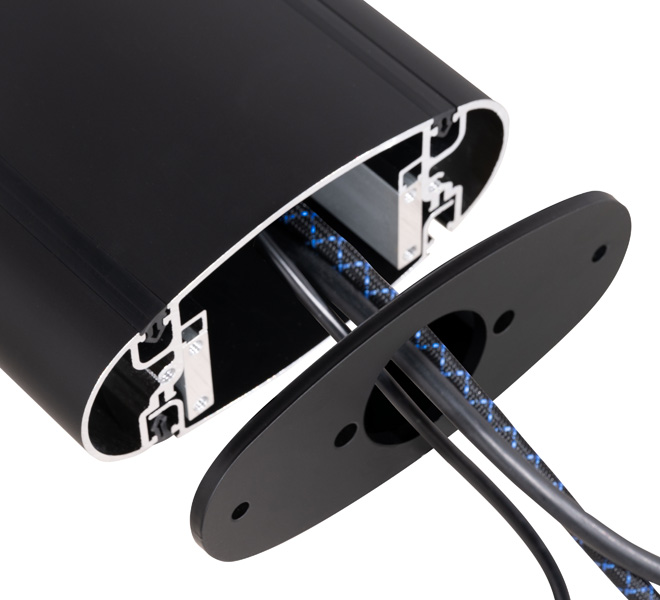

 Cables can be run through the centre of the base and into the vertical column from under the floor
