Universal Flat Screen Wall Mount With Tilt

BT8431

Easy Torsion-Tilt System




Designed to mount medium to large sized screens, the BT8431 is a flat screen wall mount that features a unique ‘Torsion-Tilt’ mechanism which allows easy tilt adjustment of the screen up to +/-15°. Also suitable for pole mounting using B-Tech’s Accessory Collars, the BT8431 features levelling screws to adjust the screen level post installation as well as locking screws which help prevent unauthorised removal of the screen.

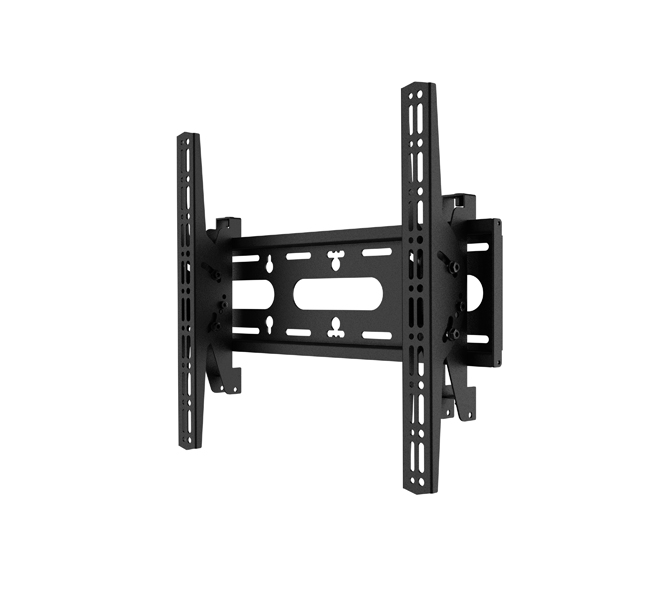

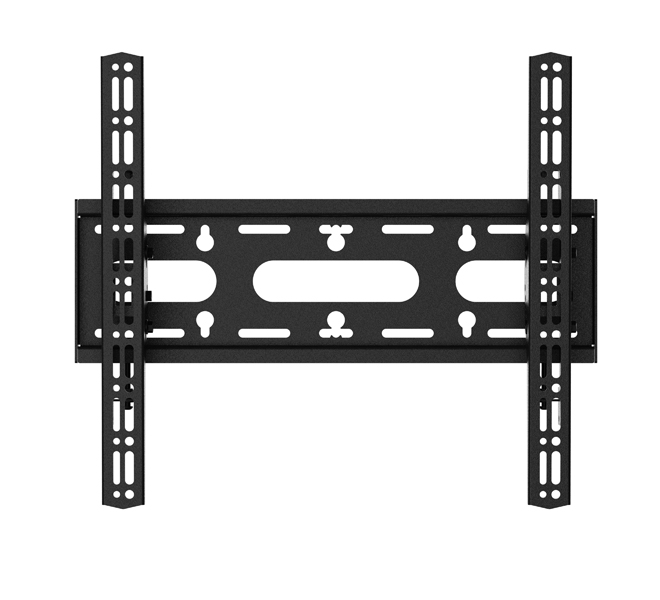

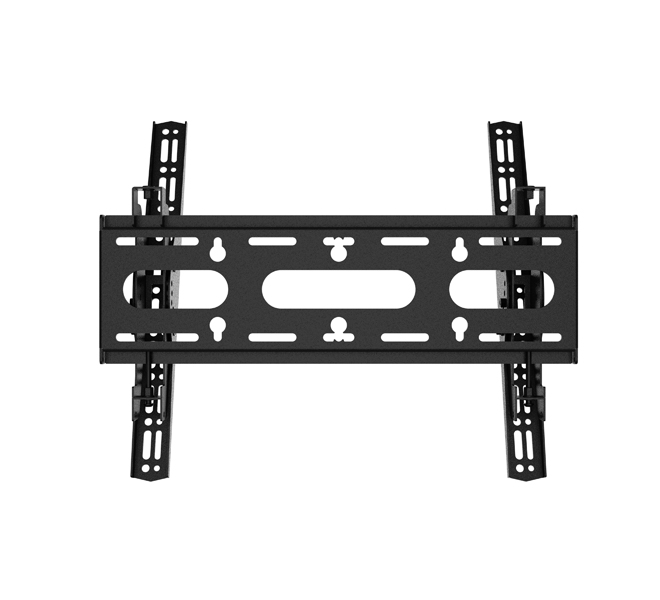

BT8431 - Universal Flat Screen Wall Mount with Tilt


  • Unique ‘Torsion-tilt’ mechanism for easy tool-less adjustment
  • Lateral adjustment of screen once mounted
  • Levelling screws allow adjustment of screen height

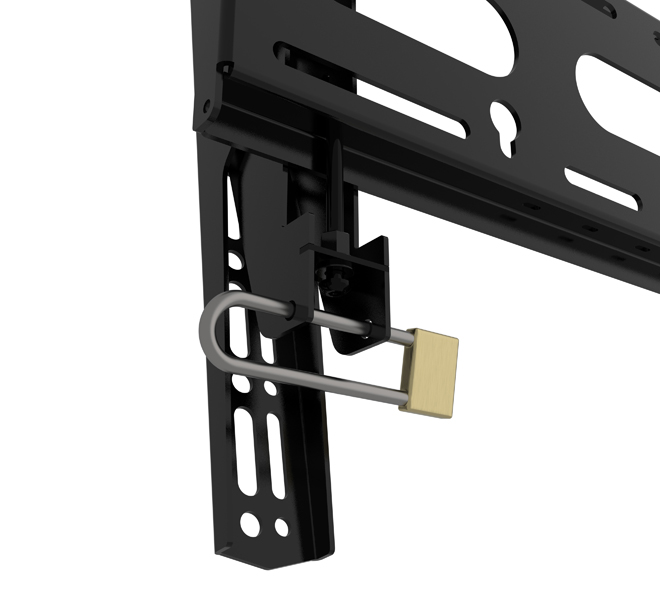

  • Security locking screws and Allen key to prevent unauthorised screen removal

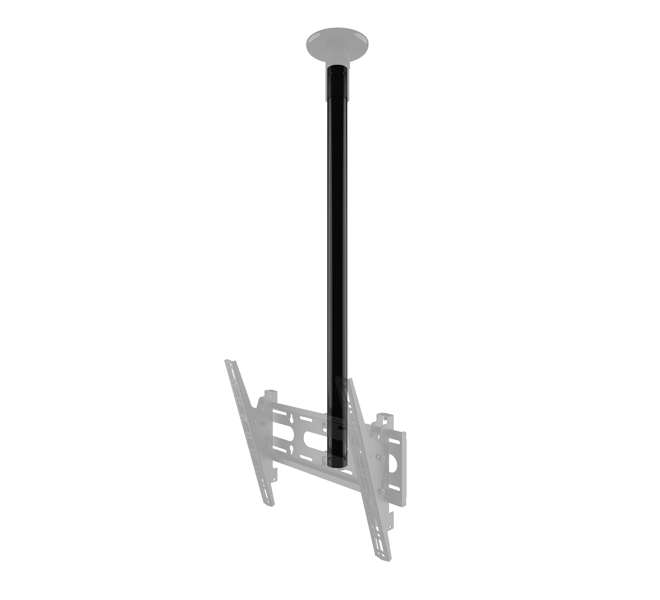

  • Collar compatible ideal for pole mounting
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recommended screen size: 39” (99cm) - 55" (140cm)
  • Max load: 50kg (110lbs)
  • VESA® & non-VESA fixings: up to 468 x 400mm

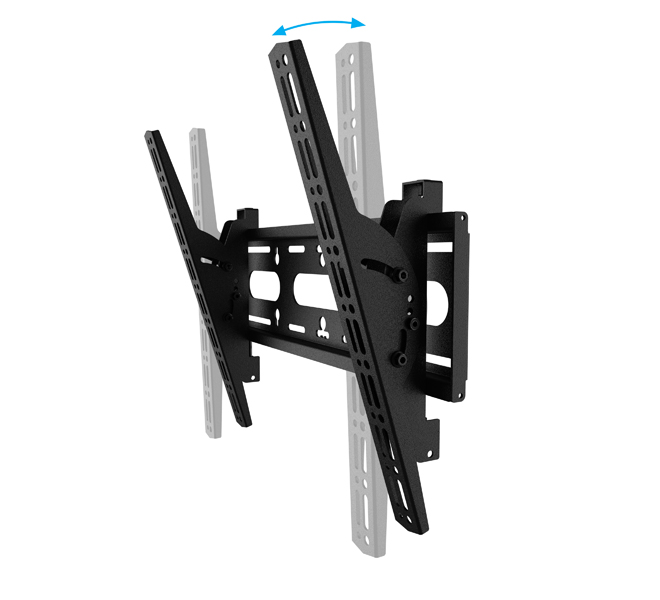

  • Tilt: +/-15°

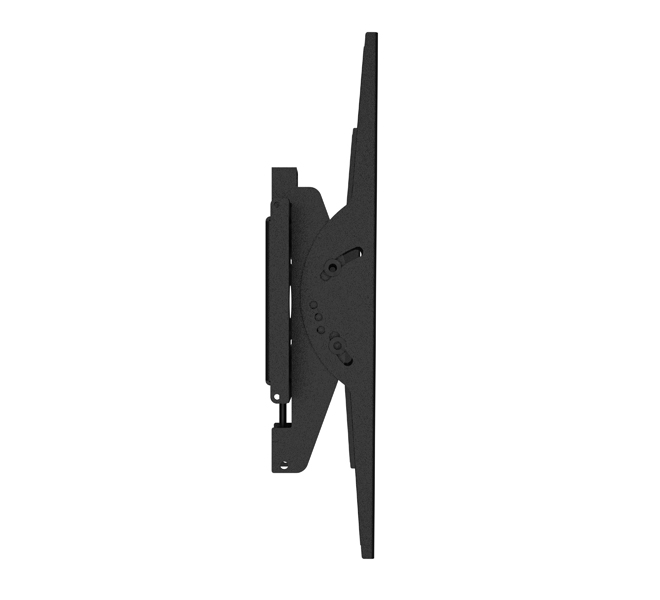

  • Distance from wall (flat): 81mm (3.2”)
  • Distance from wall (full tilt): 148mm (5.8”)
  • Colour: Black

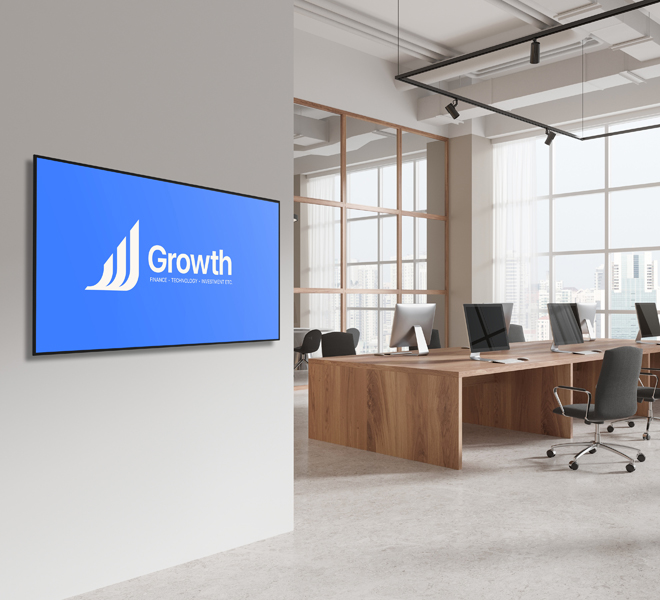

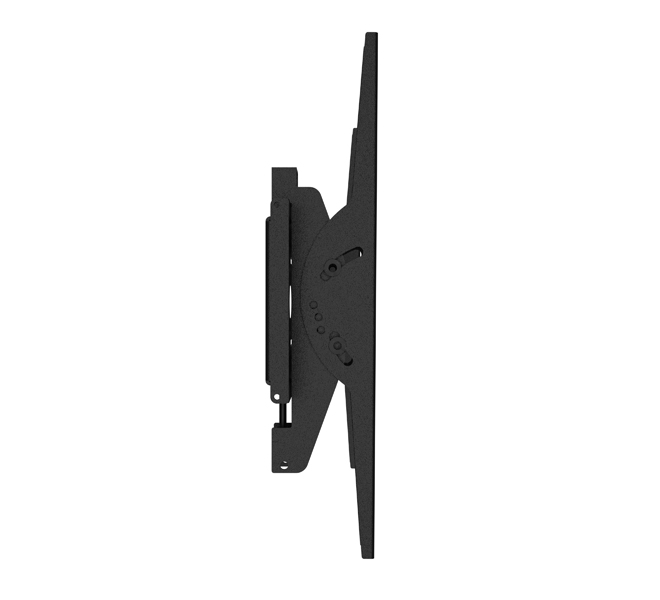

BT8431 - Universal Flat Screen Wall Mount with Tilt BT8431 - Arms feature levelling screws to adjust the screen height once mounted BT8431 - Security locking screws and Allen key provided for a secure installation BT8431 - Universal Flat Screen Wall Mount with Tilt - Lifestyle Image

Specification Sheet

Specification Sheet (PDF)

Spezifikationsblatt - Deutsch (PDF)

产品规格书 — 中文（PDF)

Specification Sheet - US Letter (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)

Technical Drawing (DXF)
