Universal Flat Screen Wall Mount With Tilt

BT8432

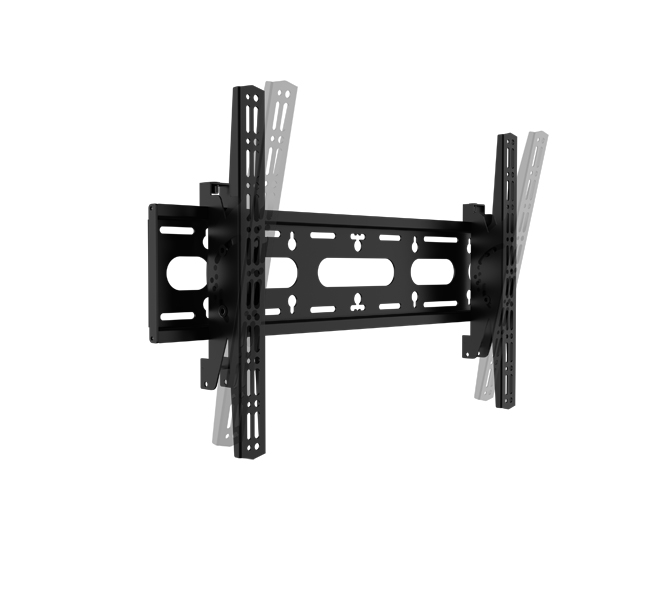

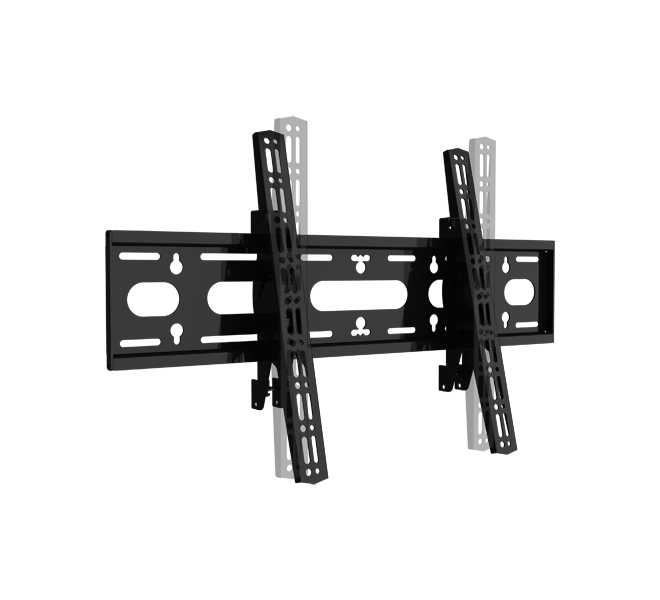

Easy Torsion-Tilt System




Designed to mount large to extra-large sized screens, the BT8432 is a flat screen wall mount that features a unique ‘Torsion-Tilt’ mechanism which allows easy tilt adjustment of the screen up to +/-15°. Also suitable for pole mounting using B-Tech’s Accessory Collars, the BT8432 features levelling screws to adjust the screen level post installation as well as locking screws which help prevent unauthorised removal of the screen.

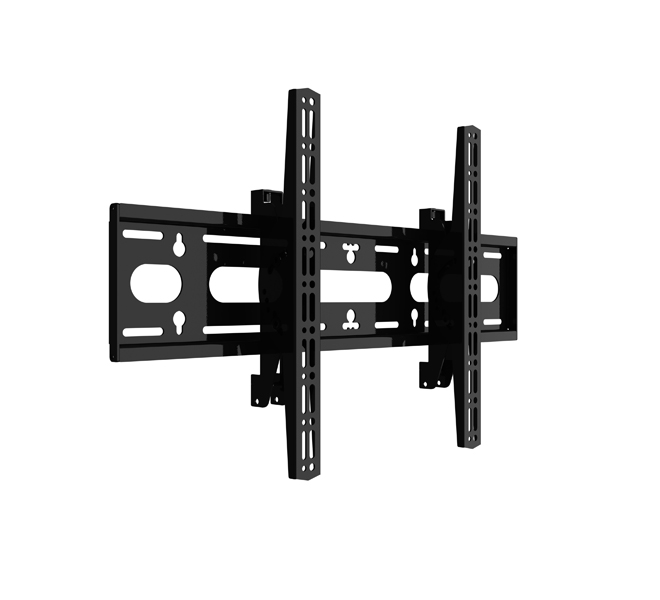

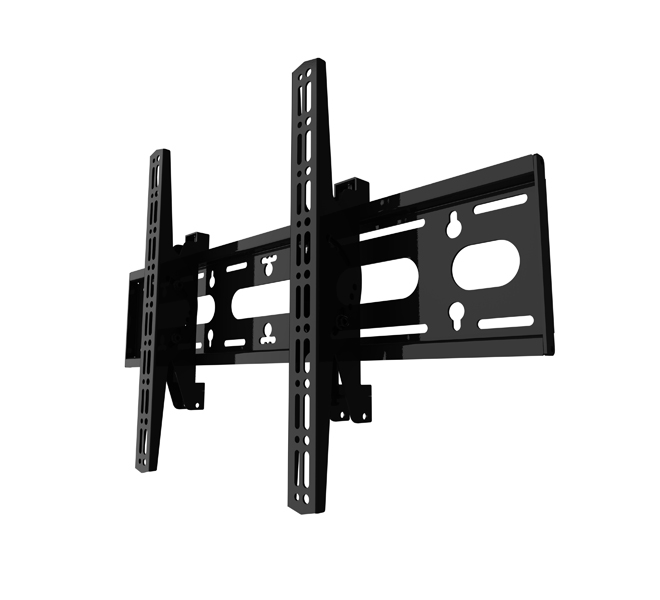

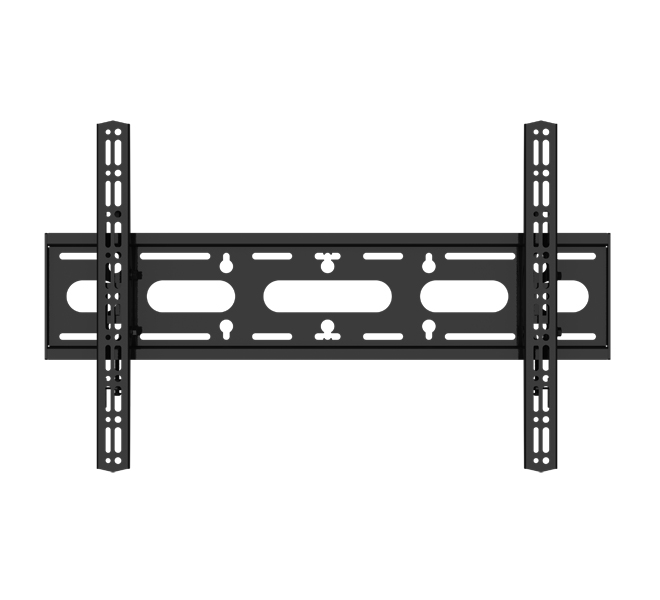

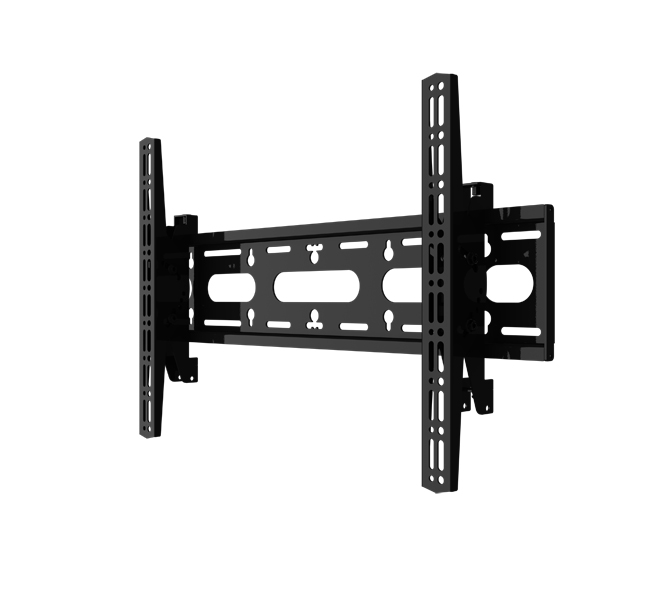

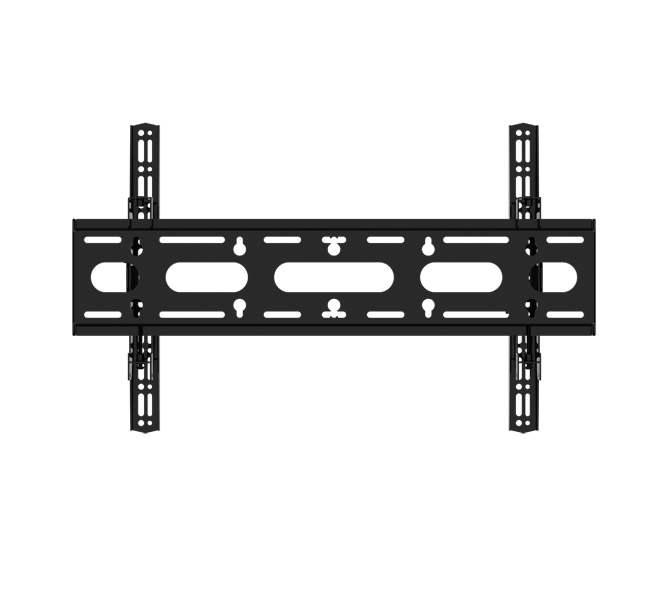

BT8432 - Universal Flat Screen Wall Mount with Tilt

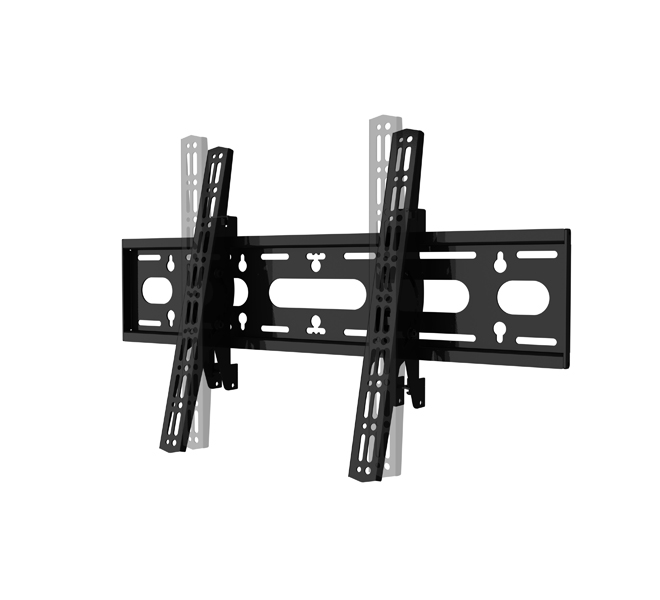

  • Unique ‘Torsion-tilt’ mechanism for easy tilt adjustment
  • Lateral adjustment of screen once mounted

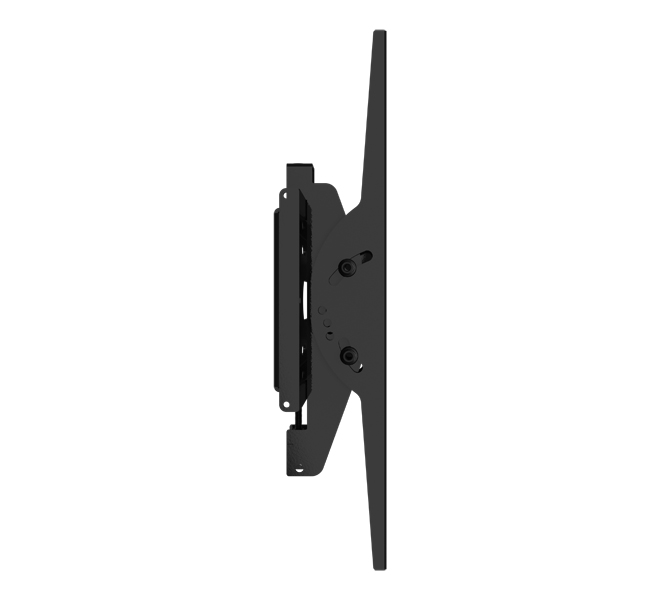

  • Levelling screws allow adjustment of screen height
  • Security locking screws and Allen key to prevent unauthorised screen removal

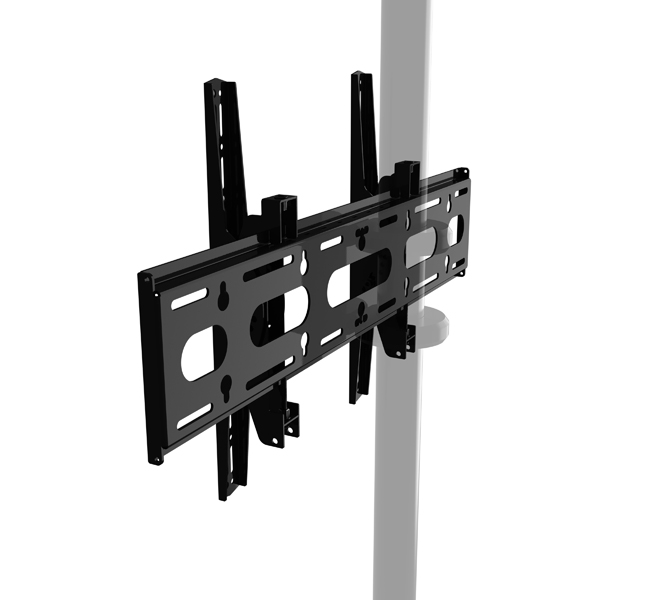

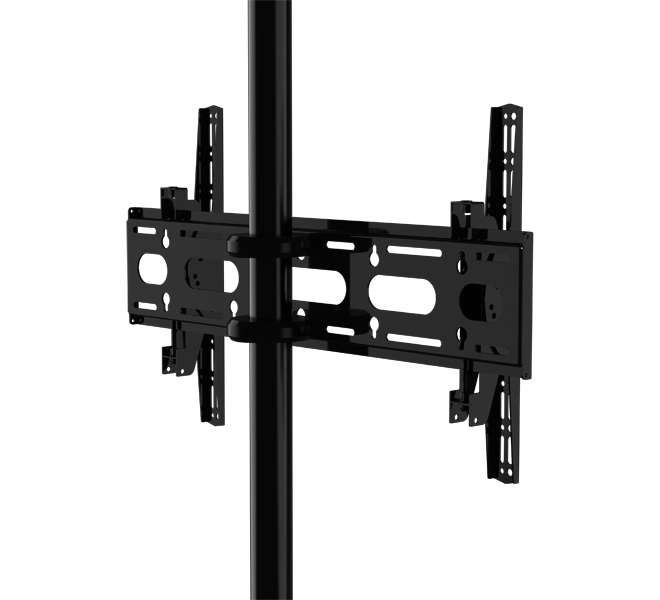

  • Collar compatible ideal for pole mounting
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recommended screen size: up to 80" (203cm)
  • Max load: 70kg* (154lbs)
  • VESA® compatibility: up to 600 x 400
  • Universal fixings: up to 677 x 400mm
  • Tilt: +/-15°
  • Distance from wall (flat): 81mm (3.2")
  • Distance from wall (full tilt): 148mm (5.8")

    *Please note the maximum load is reduced to 50kg when pole mounted

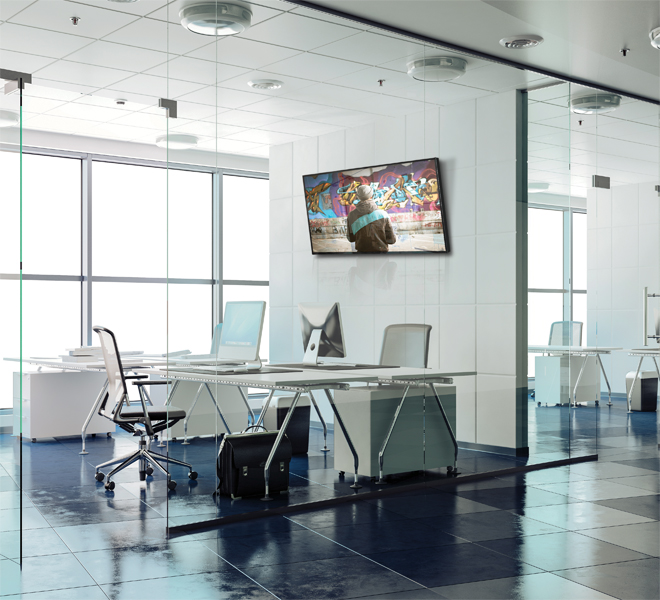

BT8432 - Universal Flat Screen Wall Mount with Tilt BT8432 - Arms feature levelling screws to adjust the screen height once mounted BT8432 - Security locking screws and Allen key provided for a secure installation BT8432 - Universal Flat Screen Wall Mount with Tilt - Lifestyle Image

Specification Sheets

Specification Sheet - English (PDF)

Fiche de spécifications - Français (PDF)

Specificatieblad - Nederlands (PDF)

Hoja de especificaciones - Español (PDF)

Spezifikationsblatt - Deutsch (PDF)



Installation Guides

Installation Guide (PDF)



Technical Drawings

Technical Drawing (PDF)

Technical Drawing (DXF)
