System X Touchscreen Trolley for 55" Surface Hub™

BT8507

For 55" Microsoft Surface Hub™

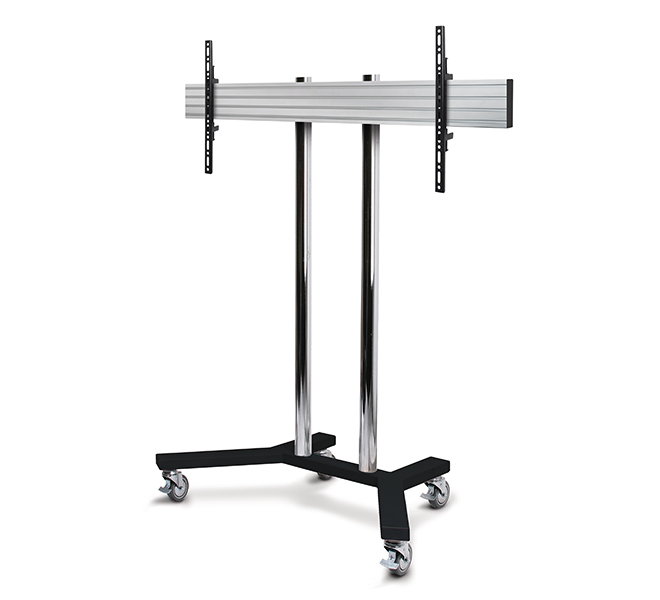

The BT8507 is a mobile solution designed to mount Microsoft's 55" Surface Hub and other large interactive displays up to 65". Capable of supporting heavy duty loads, the trolley has a welcome rigidity which means mounted touchscreens do not move or flex whilst in use. Levelling screws allow easy height adjustment of the screen once mounted and integrated cable management keeps finished installations neat and tidy. Non-marking 4" braked castors allow the trolley to be re-located easily and safely without marking or scuffing floor surfaces.






  • Designed to mount Microsoft's 55" Microsoft Surface Hub display
  • Universal design is also ideal for other standard or interactive screens
    up to 65" (such as Sahara Clevertouch®)
  • High-end aesthetic quality
  • Integrated cable management
  • Interface arms include levelling screws to adjust the height of the screen
  • Screens can be adjusted to any height on the poles, for the perfect viewing angle
  • Includes non-marking 4" locking/braked castors
  • Collar compatible accessories such as shelves can be fitted to the poles
  • Safety screws help prevent unauthorised removal of screens
  • Simple 'hook-on' installation
  • All mounting hardware included
  • Recommended screen size: up to 65"
  • Recommended surface hub size: 55"
  • Max load: 70kg
  • Universal fixing compatibility: up to 1400 x 400
  • Colour (mounting rail): Silver
  • Colour (poles): Chrome or Black
  • Colour (base): Black
BT8507 - Touchscreen Trolley for Microsoft® SurfaceHub™ Screens can be adjusted to any height on the poles, for the perfect viewing angle Includes non-marking 4 Collar compatible accessories such as shelves can be fitted to the poles
