Universal Twin Screen VC Trolley

BT8514

Includes VC Shelf




The BT8514 is a premium mounting solution designed to mount two screens side by side for video conferencing applications. The Trolley is supplied with a shelf for VC cameras that can be fitted above or below the screen while integrated cable management hides cables for a smart installation in any environment. Nonmarking braked castors allow the trolley to be relocated easily and safely without marking floor surfaces. Screw-in levelling feet for freestanding applications are available separately






  • Universal design suitable for mounting two screens side by side
  • High-end aesthetic quality
  • Heavy duty steel base construction provides stability, eliminating
    the need to bolt to the floor
  • Includes VC shelf which can be fixed above or below the screen
  • VC shelf fits most cameras with 1/4" thread with 100 x 100mm fixing points
  • Interface arms include levelling screws to adjust the screen height
  • Integrated cable management for a smart installation
  • Safety screws help prevent unauthorised screen removal
  • Dual colour options available for a modern contemporary look
  • Adjustable levelling feet for a freestanding installation
    are available separately (BT856-FEET)
  • Simple 'hook-on' screen installation with all mounting hardware included
  • Recommended screen size: 39" (99cm) - 46" (116.8cm)
  • Max screen width: 1318mm (51.8") per screen
  • Max load: 40kg (88lbs) per screen
  • VESA® and non-VESA fixings: up to 400mm x 400mm
  • Dimensions (Trolley): W:1504mm  (59.2") H:1905mm (75") D:863mm (34")
  • Dimensions (VC Shelf): W:120mm (4.7") H:3mm (0.11") D:235mm (9.2")
  • Colour options: Black, Black & Silver or White

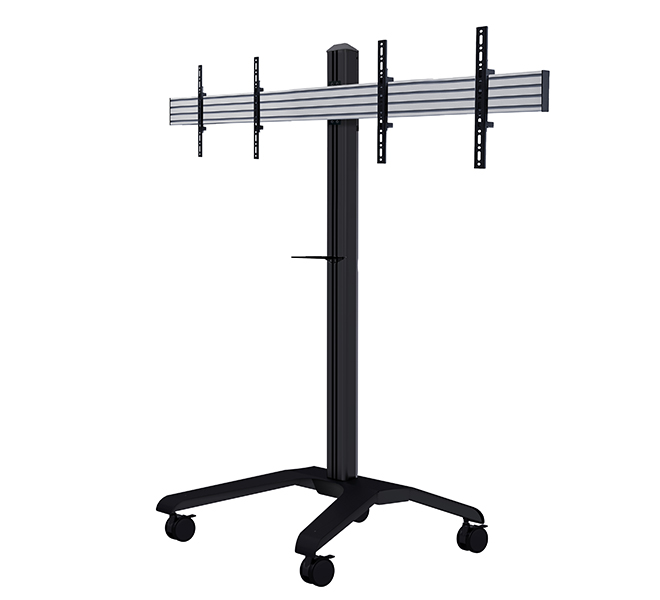

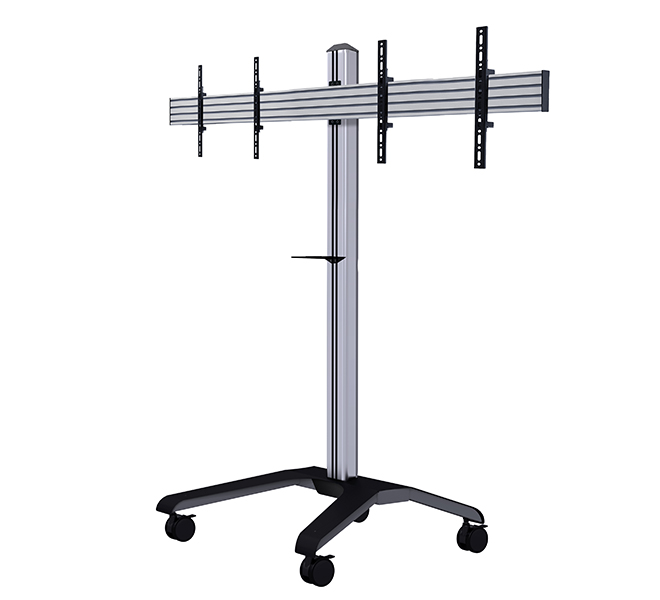

BT8514 - Black/Silver Universal Twin Screen VC Trolley BT8514 - Black Universal Twin Screen VC Trolley

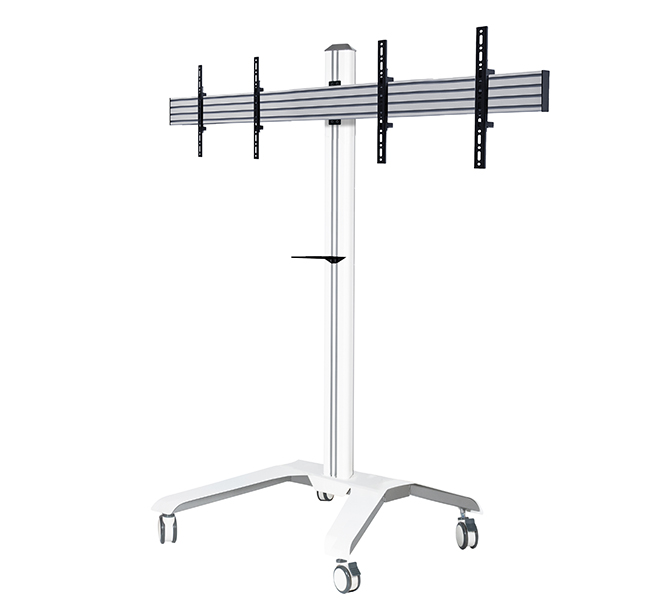

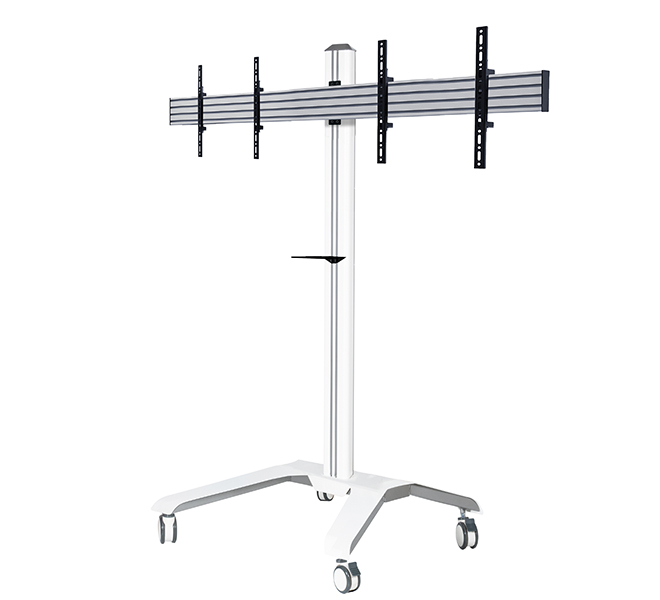

BT8514 - White Universal Twin Screen VC Trolley

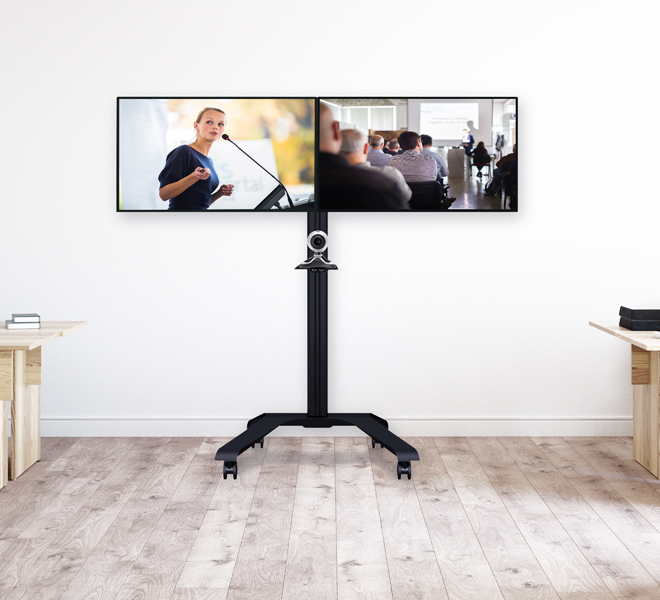

BT8514 - Universal Twin Screen VC Trolley

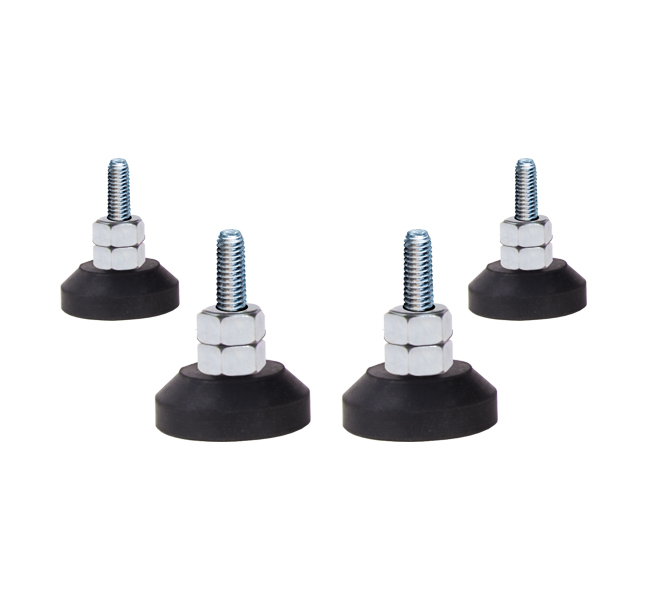

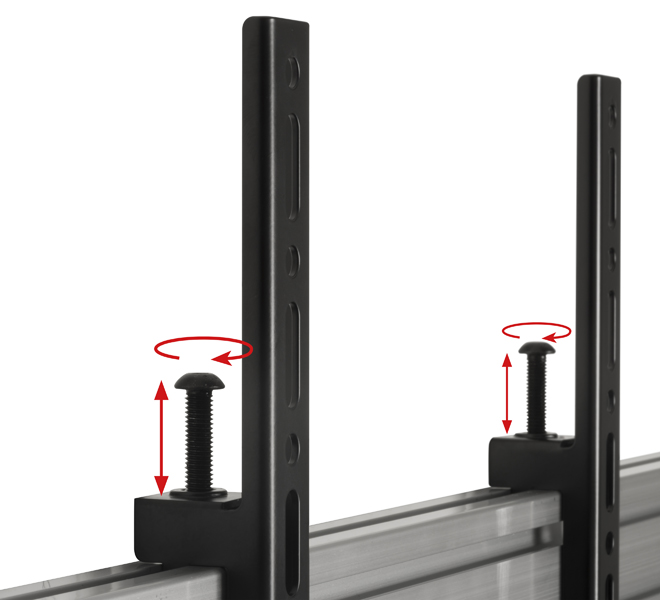

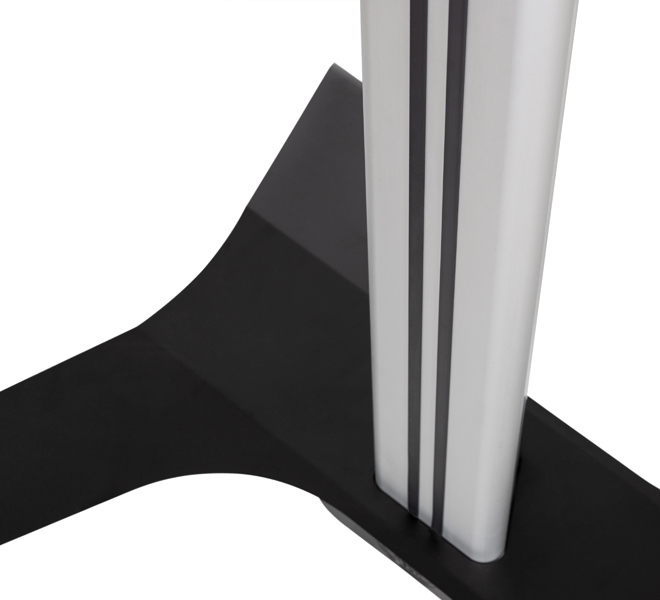

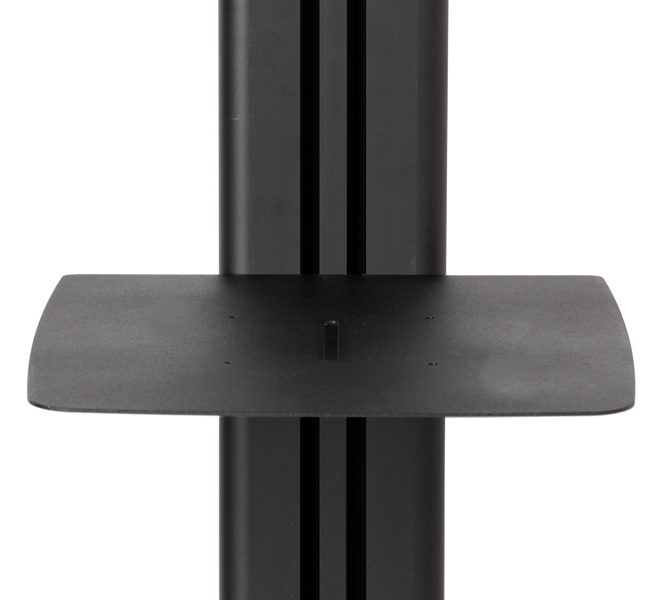

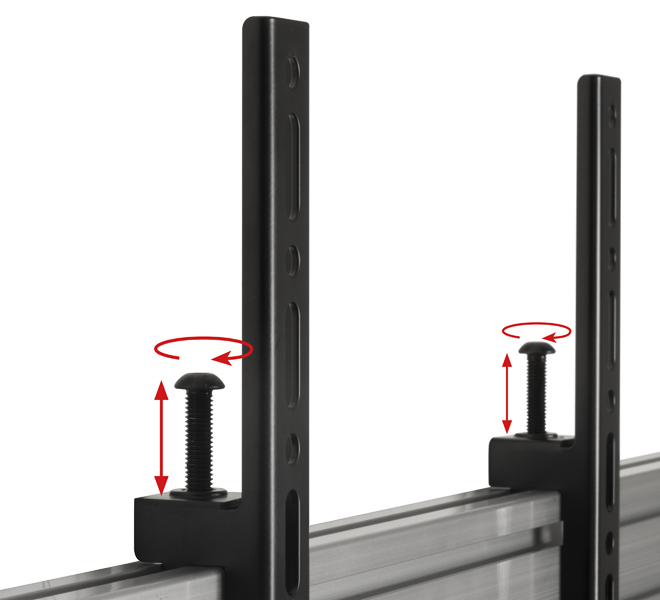

BT8514 - Interface arms include levelling screws to adjust the height of the screen Additional AV accessory shelves can be fitted directly to the column BT8514 - Dual colour options available for a modern contemporary look BT8514-FEET - Available separately to create a freestanding installation

Specification Sheets

Specification Sheet - English (PDF)

Fiche de Spécifications - Français (PDF)

Hoja de Especificación - Español (PDF)

Spezifikationsblatt - Deutsch (PDF)

Specificatieblad - Nederlands (PDF)



Installation Guides

Installation Guide (PDF)



Technical Drawing

Technical Drawings (PDF)

Technical Drawings (DXF)



You must log in to view this content
