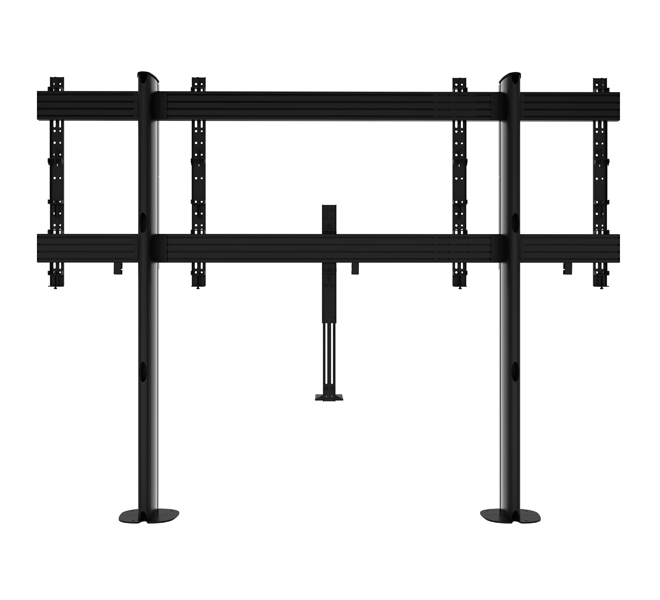

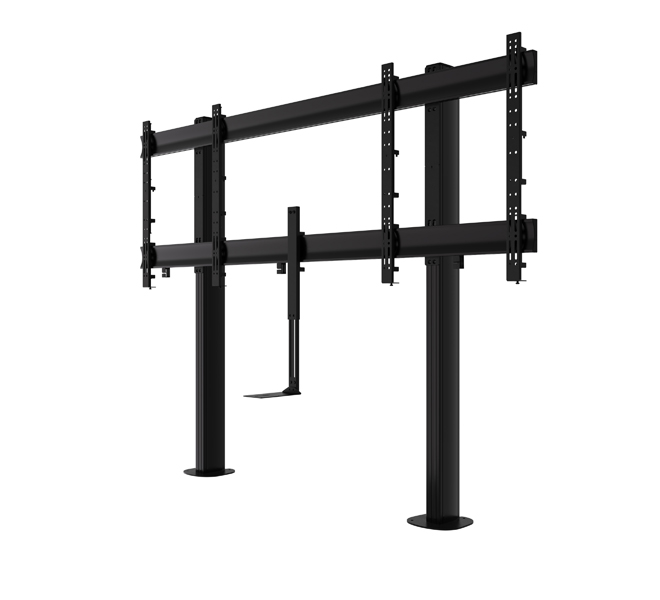

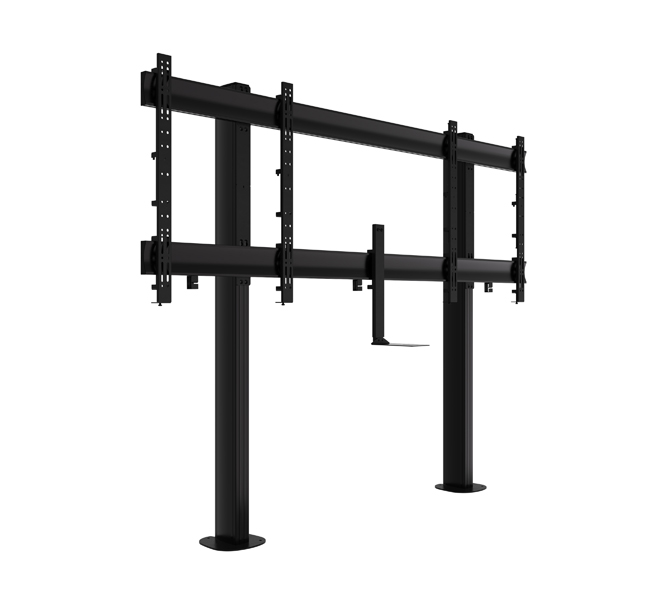

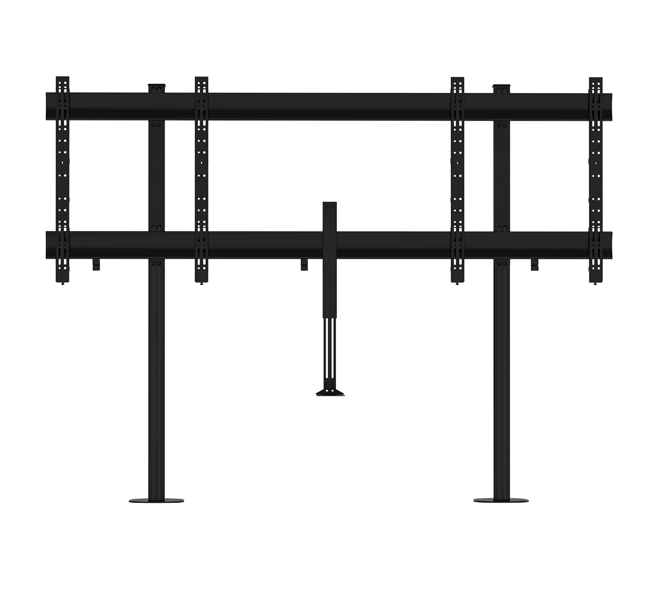

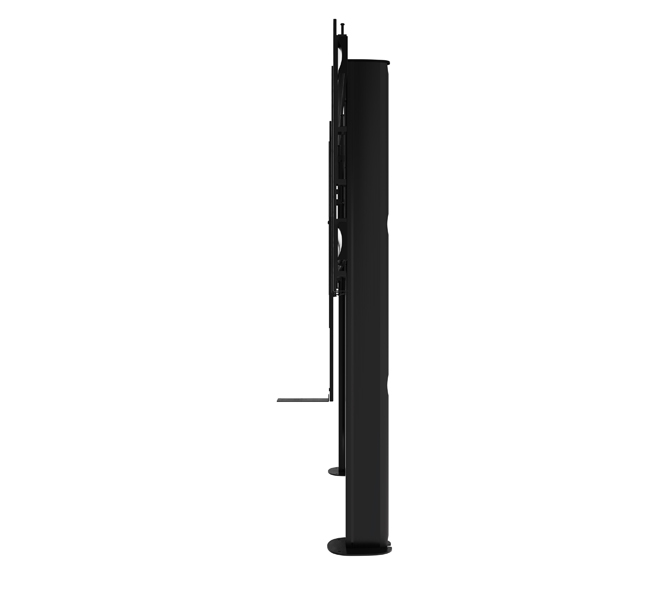

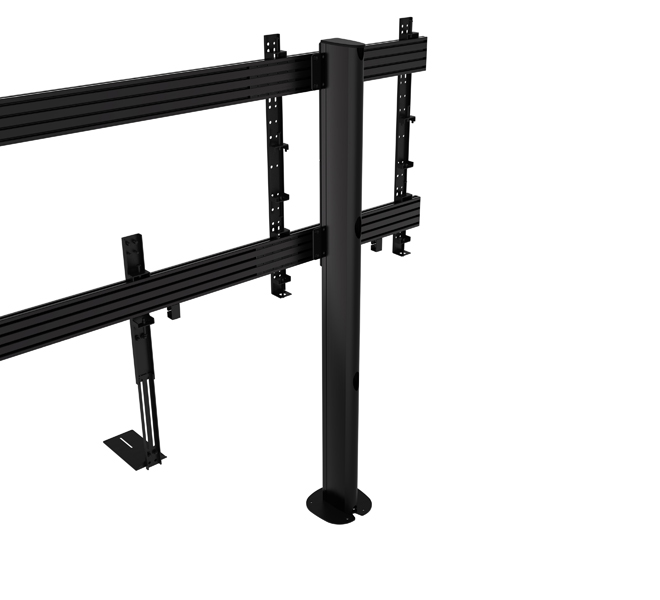

XL Twin Screen VC Bolt-Down Stand

BT8537

For twin screens up to 75"

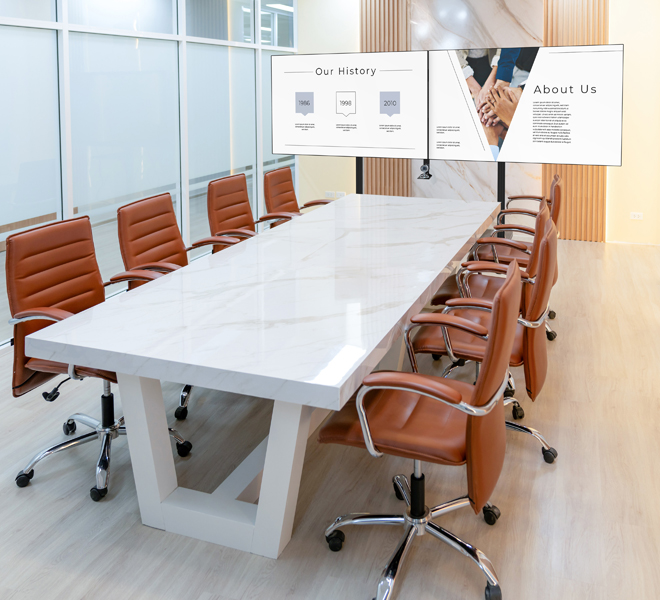

The BT8537 is a premium bolt-down mounting solution designed to mount two screens side by side, ideal for video conferencing applications. The stand is bolted down to allow for a secure installation and the integrated cable management hides cables for a smart installation in any environment. Interface arms feature level adjustment screws to help align the screens height.






  • Universal design suitable for mounting two screens side by side

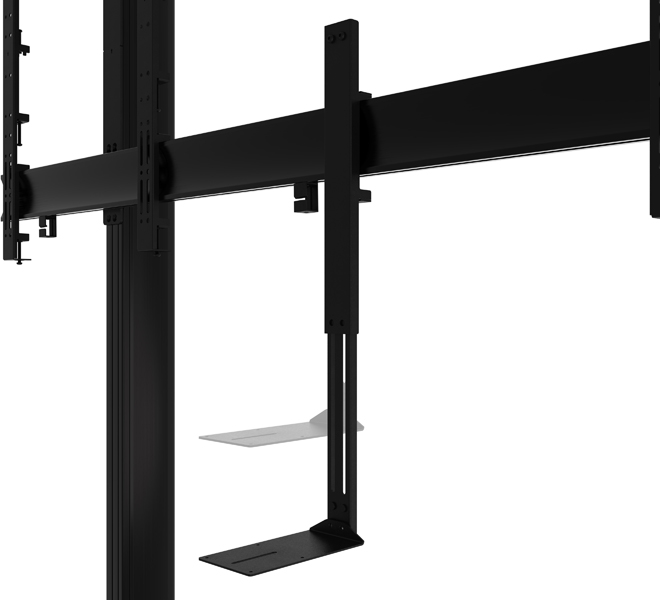

  • Adjustable mounting arm mounts the included VC shelf above or below the screen
  • Interface arms include levelling screws to adjust the screen height
  • Integrated cable management for a smart installation
  • Safety screws help prevent unauthorised screen removal
  • VC shelf fits most cameras with 1/4" thread with 100 x 100mm fixing points
  • Simple 'hook-on' screen installation
  • Recommended screen size: 75" (190cm)
  • Max load (Per Screen): 100kg (220lbs) per screen
  • Max load (Shelf): 4kg (9lbs)
  • VESA® and non-VESA fixings: up to 600 x 800mm
  • Dimensions (Trolley): W:2450mm (96.50") H:1841mm (72.4") D:240mm (9.4")
  • Dimensions (VC Shelf): W:120mm (4.72") H:3mm (0.11") D:235mm (9.25")
  • Colour: Black
BT8537 - XL Twin Screen VC Bolt-Down Stand BT8537 - XL Twin Screen VC Bolt-Down Stand

BT8537 - XL Twin Screen VC Bolt-Down Stand

 BT8537 - XL Twin Screen VC Bolt-Down Stand
BT8537 - XL Twin Screen VC Bolt-Down Stand BT8537 - XL Twin Screen VC Bolt-Down Stand BT8537 - XL Twin Screen VC Bolt-Down Stand BT8537 - XL Twin Screen VC Bolt-Down Stand

Specification Sheets

Specification Sheet - English (PDF)



Technical Drawings

Technical Drawing (PDF)
