Universal Twin Screen VC Trolley

BT8516

For two screens up to 65"




The BT8516 is a premium mounting solution designed to mount two screens side by side for video conferencing applications. The Trolley is supplied with an adjustable VC shelf that allows cameras to be fitted above or below the screen. Integrated cable management hides cables for a smart installation in any environment and nonmarking braked castors allow the trolley to be relocated easily and safely without marking floor surfaces. Screw-in levelling feet for freestanding applications are available separately






  • Universal design suitable for mounting two screens side by side
  • High-end aesthetic quality
  • Heavy duty steel base construction provides stability, eliminating
    the need to bolt to the floor
  • Includes VC shelf which can be fixed above or below the screen
  • VC shelf its most cameras with 1/4" thread with 100 x 100mm fixing points
  • Interface arms include levelling screws to adjust the screen height
  • Integrated cable management for a smart installation
  • Safety screws help prevent unauthorised screen removal
  • Dual colour options available for a modern contemporary look
  • Adjustable levelling feet for a freestanding installation
    are available separately (BT856-FEET)
  • Simple 'hook-on' screen installation with all mounting hardware included
  • Recommended screen size: 56" (142cm) - 65" (165cm)
  • Max load: 70kg (154lbs) per screen
  • VESA® and non-VESA fixings: up to 600mm x 400mm
  • Dimensions (Trolley): W:2004mm (78.9") H:1905mm (75") D:991mm (39")
  • Dimensions (VC Shelf): W:120mm (4.7") H:3mm (0.11") D:235mm (9.2")
  • Colour options: Black, Black & Silver or White

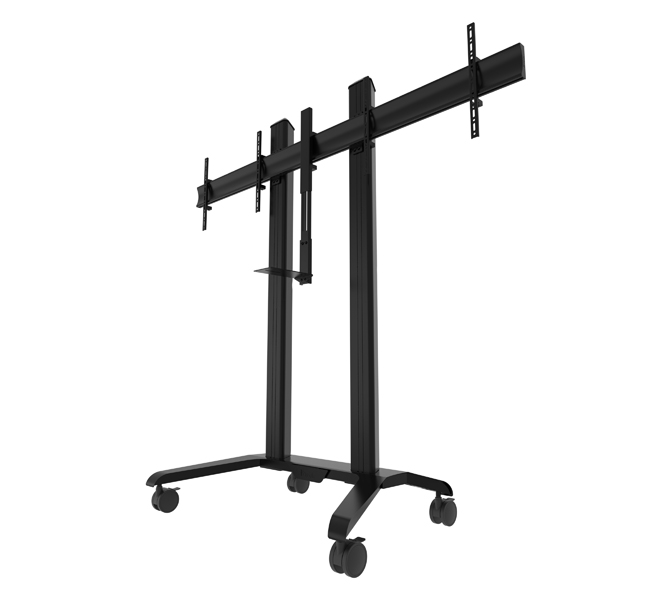

BT8516 - Universal Twin Screen VC Trolley - Black BT8516 - Interface arms include levelling scews to adjust the height of the screen

BT8516 - Includes VC shelf which can be fixed above or below the screen

BT8516 - Universal Twin Screen VC Trolley - Lifestyle Image

Specification Sheets

Specification Sheet - English (PDF)

Fiche de Spécifications - Français (PDF)

Hoja de Especificación - Español (PDF)

Spezifikationsblatt - Deutsch (PDF)

Specificatieblad - Nederlands (PDF)



Installation Guides

Installation Guide (PDF)



Technical Drawings

Technical Drawing (PDF)

Techincal Drawing (DXF)
