BT8545 - Momentum Edge Interactive Touch Screen Trolley

Momentum Edge Interactive Touch Screen Trolley

BT8545

For screens up to 86"

Part of B-Tech’s Momentum Range, the BT8545 Momentum Edge is a modern, durable, and easy-to-use flat screen trolley designed to support displays and interactive touchscreens from 55" to 86". The Trolleys braked castors provide smooth, safe mobility, while the sturdy design ensures stable use, preventing unintended movement when using the touchscreen. Capable of holding displays up to 100kg with multiple screen mounting heights available, the BT8545 has versatile display options including an AV equipment shelf, which can also serve as a sleek blanking panel. This versatile solution is ideal for both installers and end users, delivering flexibility and performance across a range of applications.

BT8545

Features
Specifications
Photos
Downloads
For Dealers

Sturdy steel construction prevents unwanted movement when
using a touch screen display
Includes an accessory shelf that can be mounted at the front or
rear of the trolley

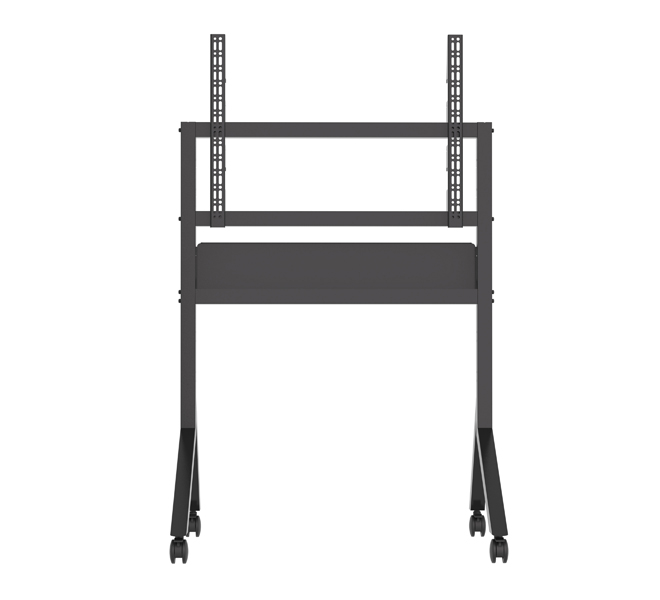

The shelf can be installed vertically at the front, or as a blanking panel
when fitted vertically at the rear

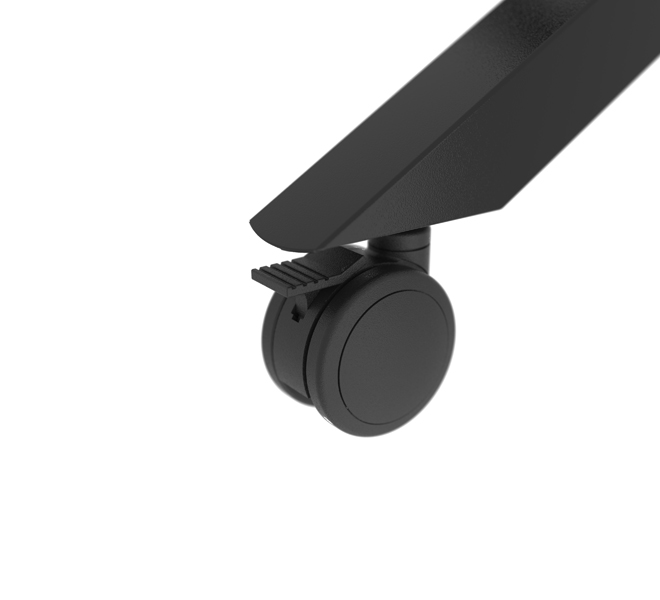

Equipped with non-marking, lockable, braked castors for secure mobility

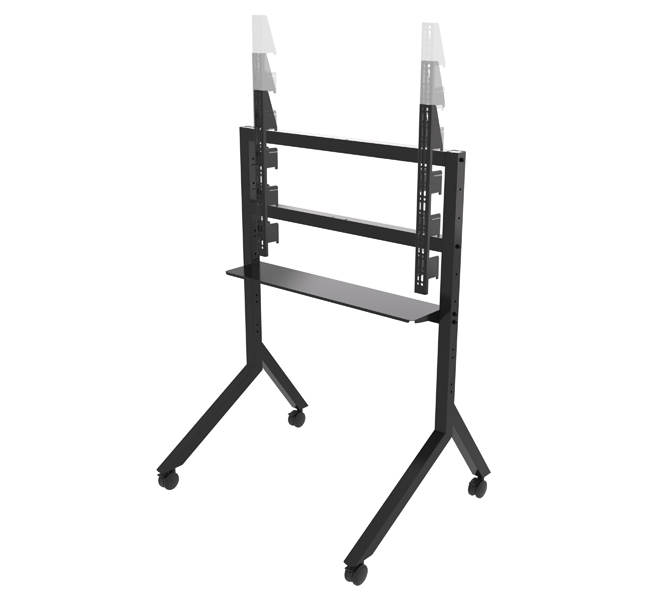

Provides six height adjustments for screen mounting and three for the shelf
Safety screws help to prevent unauthorised removal of the screen
Simple hook-on installation
All necessary mounting hardware is included

Recommended screen size: 55" (167cm) up to 86" (218cm)
VESA fixings: up to 800 x 600
Max load (Screen): 100kg (220lbs)
Max load (Shelf): 5kg (11lbs)
Trolley Dimensions: H: 1428mm (56.2") - 1722mm (67.7") W: 1050mm (41.3") D: 882mm (34.7")
Shelf Dimensions: W: 950mm (37.4") D: 210mm (8.26")
