XL Heavy Duty Universal Flat Screen Wall Mount

BT9903

For XXL Screens





Designed to mount the largest screens on the market, the heavy duty BT9903 is capable of supporting weights of 200kg when wall mounted. It is ideal for heavy touchscreens over 65" with the universal interface accommodating screens with mounting patterns up to 1000mm x 600mm. With keyhole fixings on the wall plate and a hook-on mounting system, the BT9903 is designed for an easy installation and features height adjustment screws which allow the screen to be levelled once mounted.

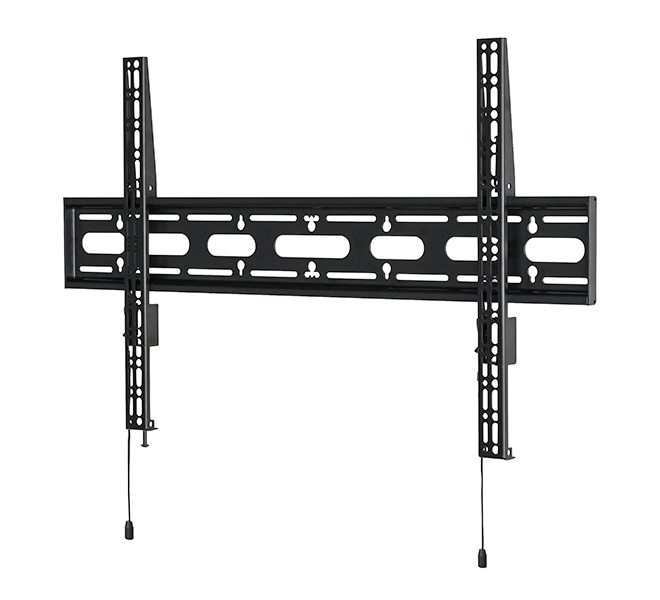

   BT9903 - Heavy Duty Universal Flat Screen Wall Mount
  • Designed to mount XL screens 65” and over
  • Low profile design

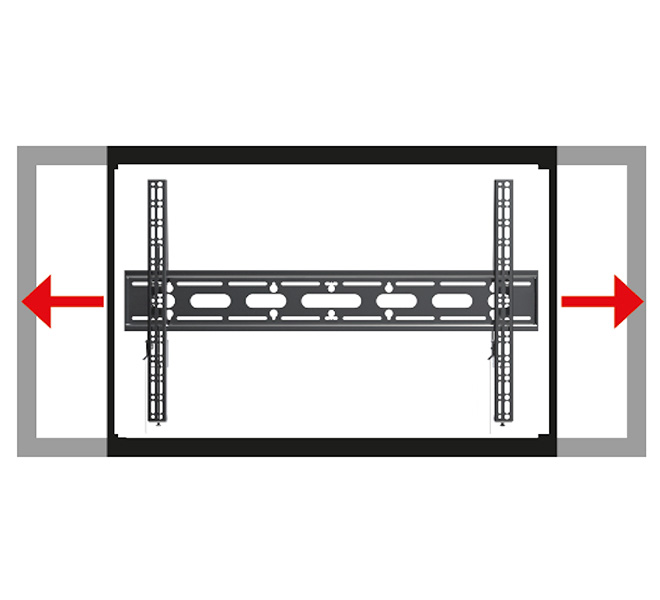

  • Lateral adjustment of screen once mounted

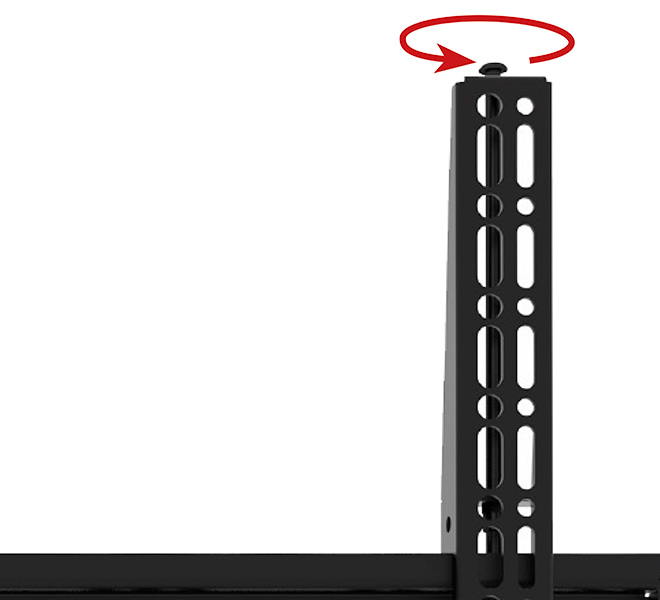

  • Adjustment screws allow screen to be levelled once mounted
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recommended screen size: 65” (165cm) up to 120" (305cm)
  • Max load: 200kg* (440lbs)
  • VESA® and non-VESA Fixings: up to 1000 x 600mm
  • Distance from wall: 35mm (1.4")

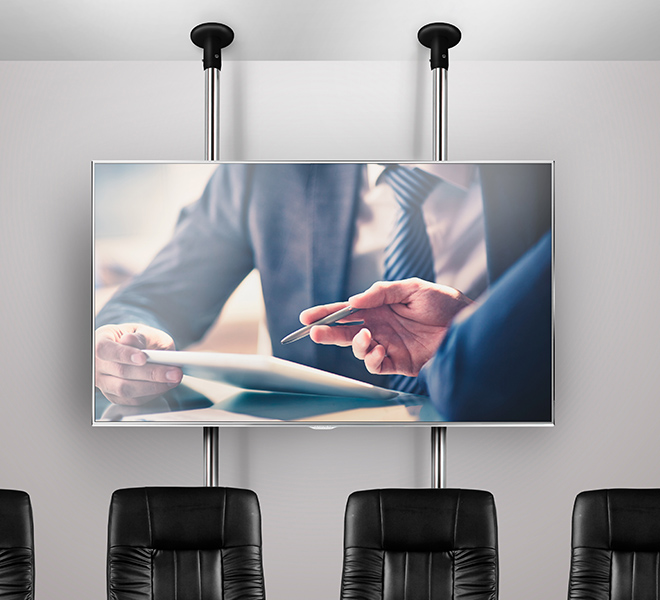

BT9903 - Heavy Duty Universal Flat Screen Wall Mount BT9903 - Heavy Duty Universal Flat Screen Wall Mount - Side View BT9903 - Heavy Duty Universal Flat Screen Wall Mount - Low Profile Design BT9903 - Compatible with B-Tech's System 2 collar and pole mounting systems

Specification Sheets

Specification Sheet - English (PDF)

Specification Sheet - US Letter (PDF)

Spezifikationsblatt - Deutsch (PDF)

产品规格书 — 中文（PDF)

Thông số kỹ thuật - Tiếng Việt (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)

Technical Drawing (DXF)



Greensheet

Greensheet (PDF)
