XL Heavy Duty Universal Flat Screen Wall Mount with Tilt

BT9910

For Screens up to 130kg




Designed to mount the largest screens on the market, the heavy duty BT9910 is capable of supporting weights of 130kg when wall mounted. Ideal for screens over 65" the mount features a choice of 4 tilt positions from 0° up to 15° with the universal interface accommodating screens with mounting patterns up to 1000 x 600mm. With keyhole fixings on the wall plate and a hook-on mounting system, the BT9910 is designed for an easy installation and features height adjustment screws which allow the screen to be levelled once mounted.





  BT9910 - XL Heavy Duty Universal Flat Screen Wall Mount with Tilt
  • Designed to mount extra-large screens 65” and over
  • Lateral adjustment of screen once mounted
  • Adjustment screws allow screen to be levelled once mounted
  • Heavy duty 4mm steel capable of supporting the heaviest screens
  • Safety screws included to prevent removal of screen
  • Compatible with B-Tech's System 2 pole mounting system
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recommended screen size: 65" up to 100"
  • Max load: 130kg*
  • VESA® and non-VESA fixings: up to 1000 x 600mm
  • Tilt positions: 0°, 5°, 10° and 15°
  • Distance from wall (when mounted flat): 82mm
  • Colour: Black

*Please note the max weight is limited to 80kg when mounted across two poles

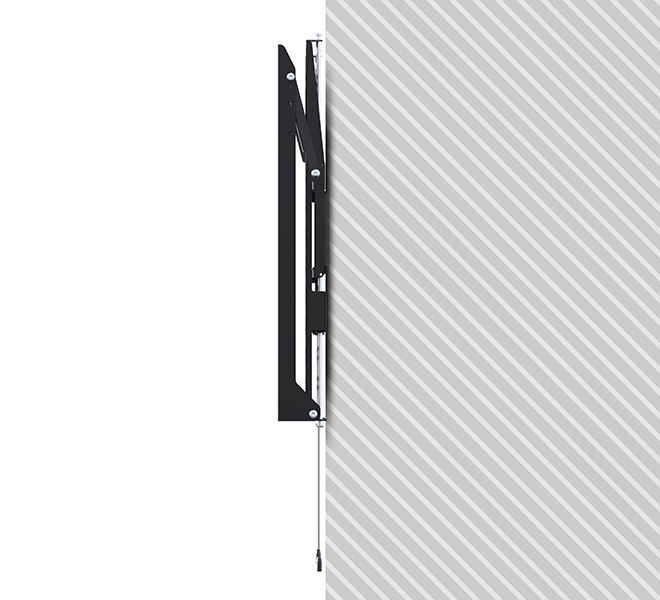

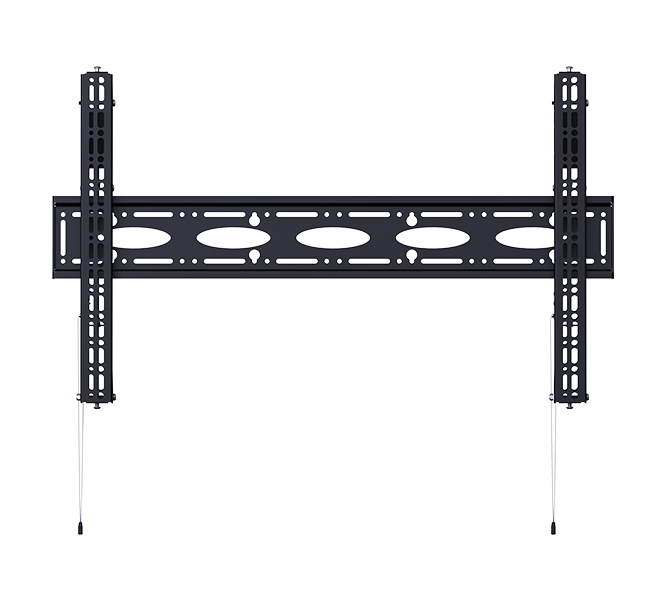

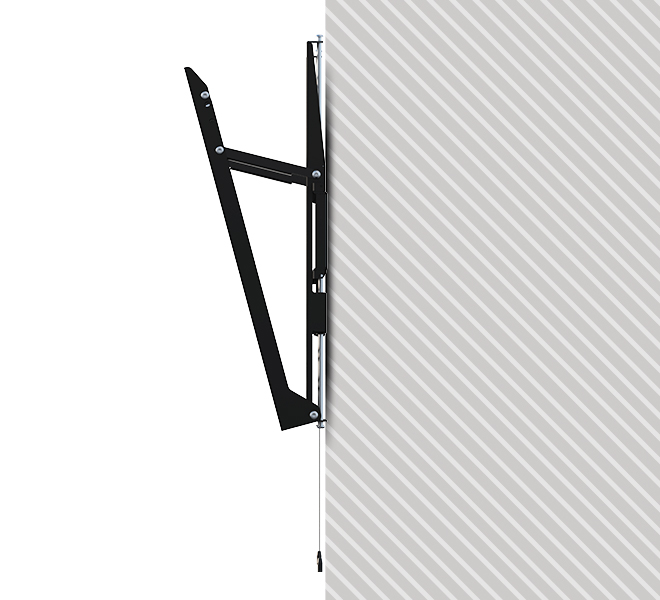

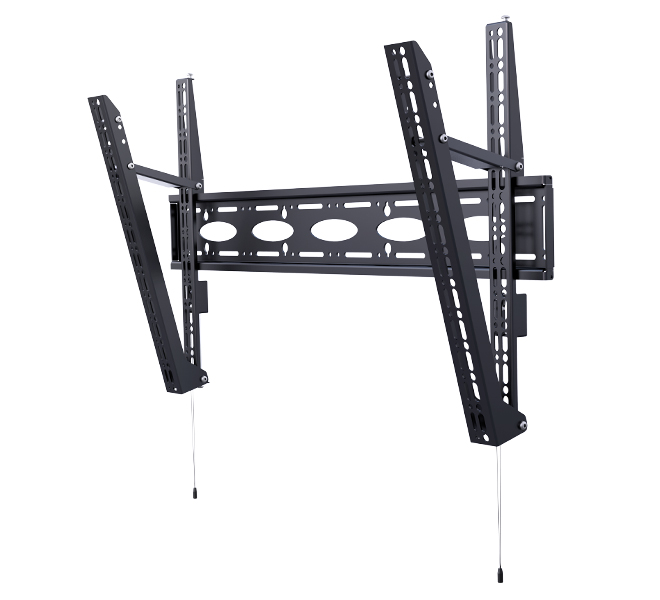

BT9910 - XL Heavy Duty Universal Flat Screen Wall Mount with Tilt BT9910 - XL Heavy Duty Universal Flat Screen Wall Mount with Tilt BT9910 - Features a choice of 4 tilt positions from 0° up to 15° BT9910 - Mounts screen just 82mm from the wall when mounted flat

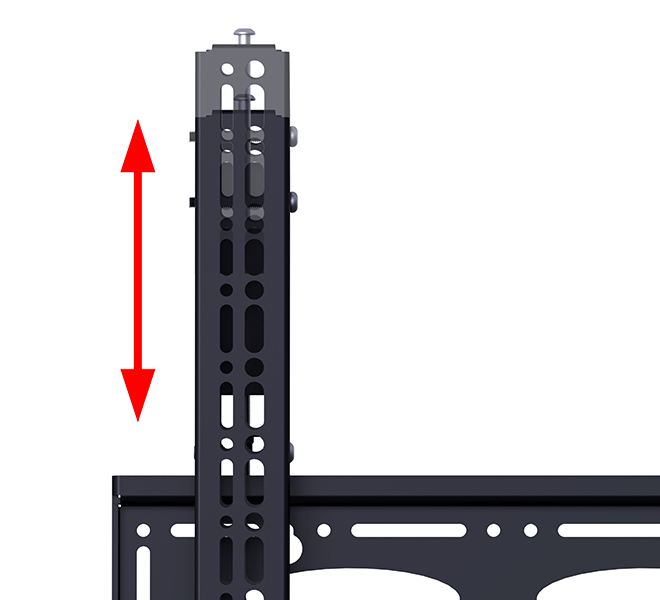

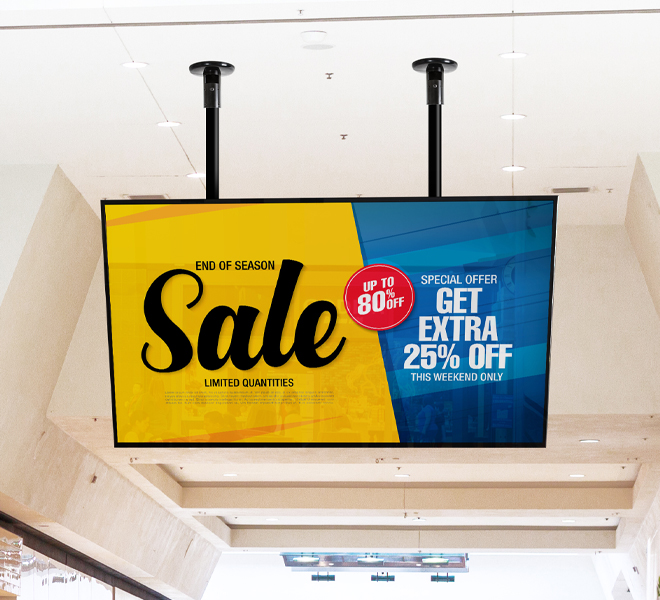

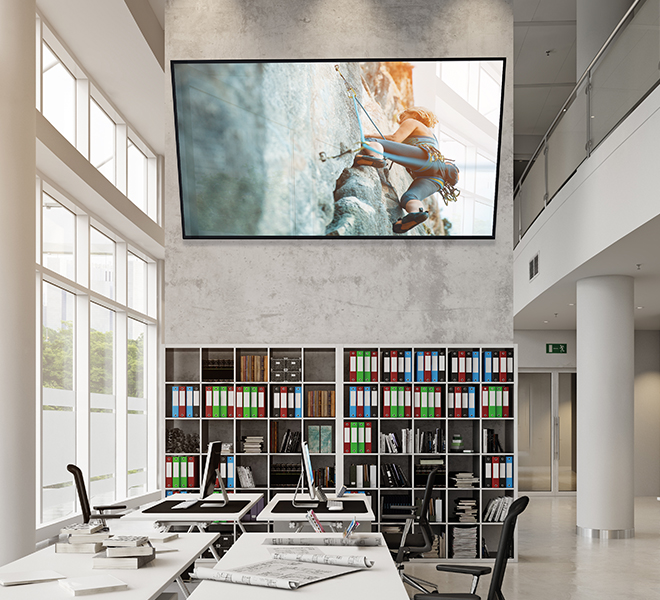

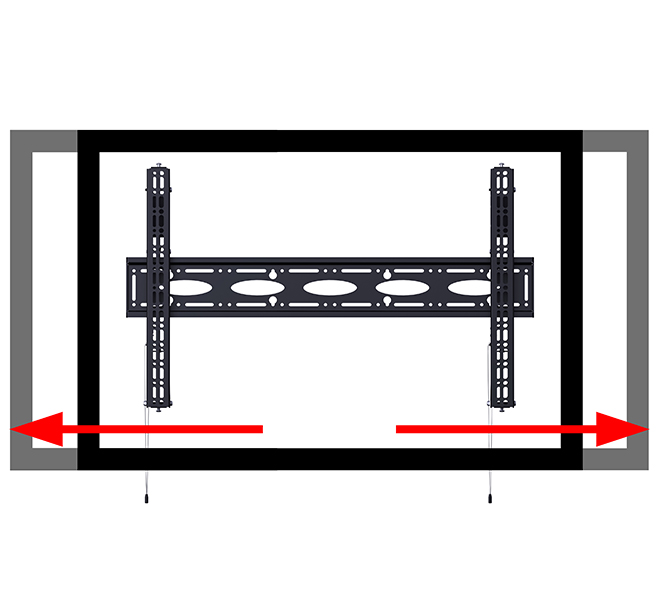

BT9910 - Post installation screen alignment BT9910 - Adjustment screws allow screen to be levelled once mounted BT9910 - Lifestyle Image BT9910 - Compatible with B-Tech’s collar and pole system for pole mounting heavy duty screens

Assembly Leaflet (PDF)

Specification Sheet - (PDF)

Technical Drawing (DXF)

Technical Drawing (PDF)
