System X™ Freestanding Floor Base

BT8380-FSB

Premium Base for floor stands

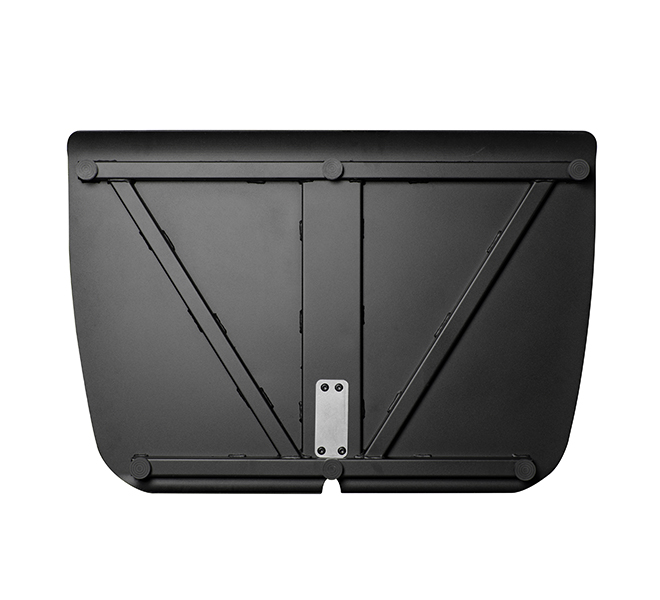

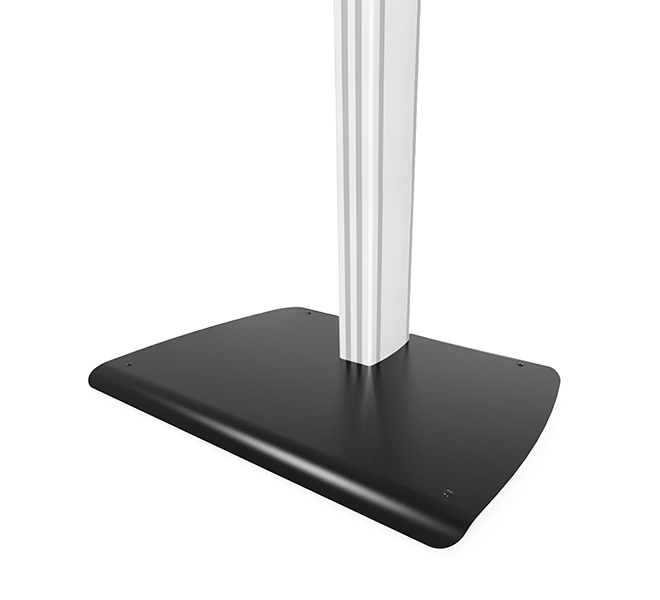

	Designed to create freestanding, flat screen floor stands, the BT8380-FSB is a robust steel base that works in conjunction with BT8380 columns to create stylish display mounting solutions with a high-end aesthetic. Ideal for video conferencing, the heavy duty construction allows for single or multi-screen setups without the need to permanently fix to the floor. Designed with versatility in mind, the BT8380-FSB can also be used with B-Tech’s Ø60mm pole range for an even greater number of mounting options. Adjustable levelling feet are included to accommodate uneven floor surfaces and integrated cable management ensures installations have a neat and tidy finish.

Versatile solution suitable for a range of different freestanding setups; single screen, twin screen etc.
High-end aesthetic with premium quality finish
Heavy duty steel construction provides stability, eliminating the needto bolt to the floor
Can also be bolted to the floor to help prevent unauthorised relocation of the display(s)

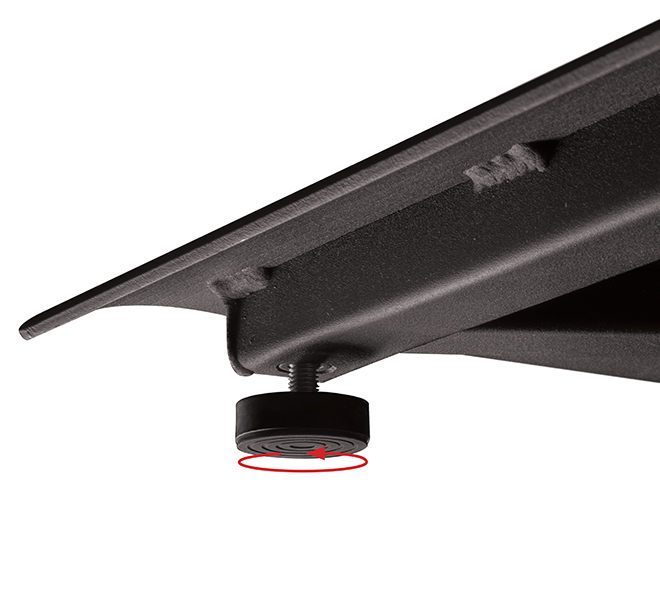

Supplied with adjustable levelling feet to accommodate uneven floor surfaces
Integrated cable management for a neat and tidy installation

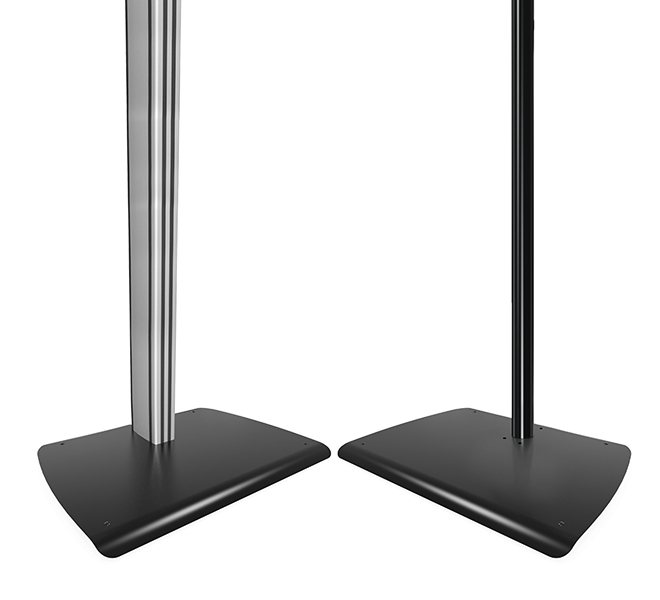

Also suitable for use with B-Tech Ø60mm poles
All mounting hardware supplied

Max load: 70kg*
Compatible with: BT8380, BT4005, BT4011, BT4015, BT4020
Base dimensions: W:890mm H:40mm D:604mm
Colour: Black

*Please note the max weight and screen size are dependent on the type of install. The maximum weight when used with a BT8380 column at a height of 1.8m is 70kg. When used with a Ø60mm pole at a height of 2m, the max load is 30kg. Please refer to the assembly manual for full details.
