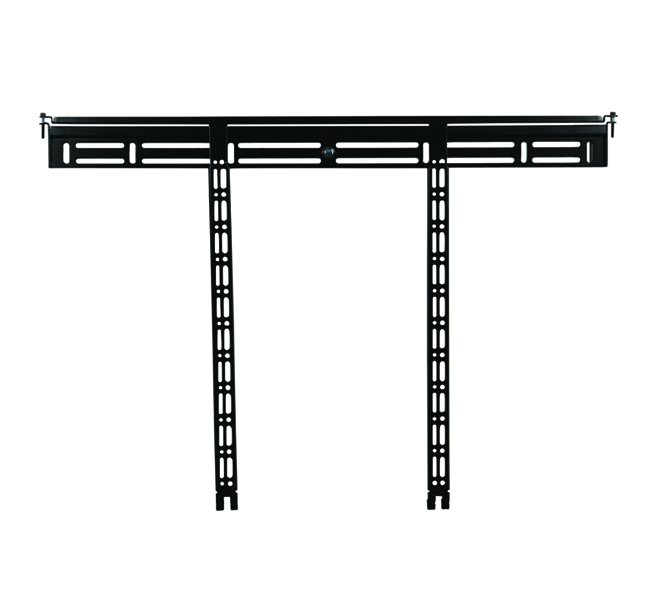

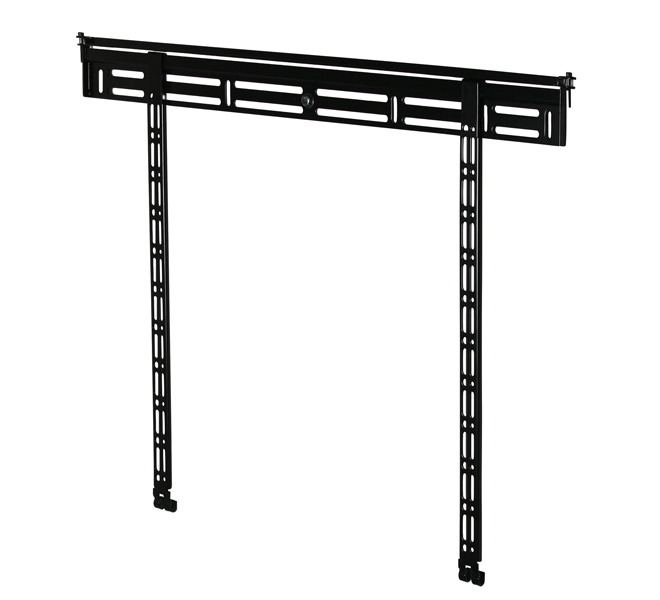

• Designed for flat screens up to 80” (203cm) / 70kg (154lbs)
• Fits screens with mounting patterns up to H: 830mm (33.2") x V: 500mm (19.7") including VESA®:
  75 x 75mm, 100 x 100mm, 200 x 100mm, 200 x 200mm, 300 x 200mm, 300 x 300mm,
  400 x 200mm, 400 x 300mm, 400 x 400mm, 600 x 400mm, 800 x 400mm and 800 x 500mm

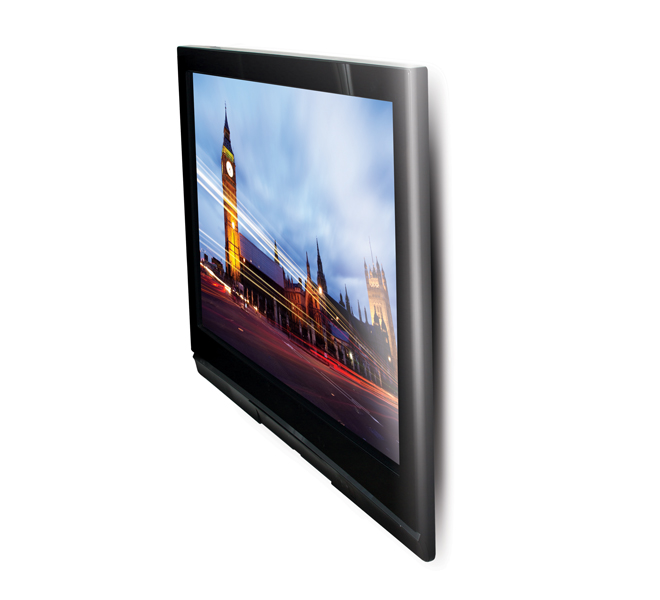

• Ultra-slim design mounts screen only 14mm (0.6”) from wall

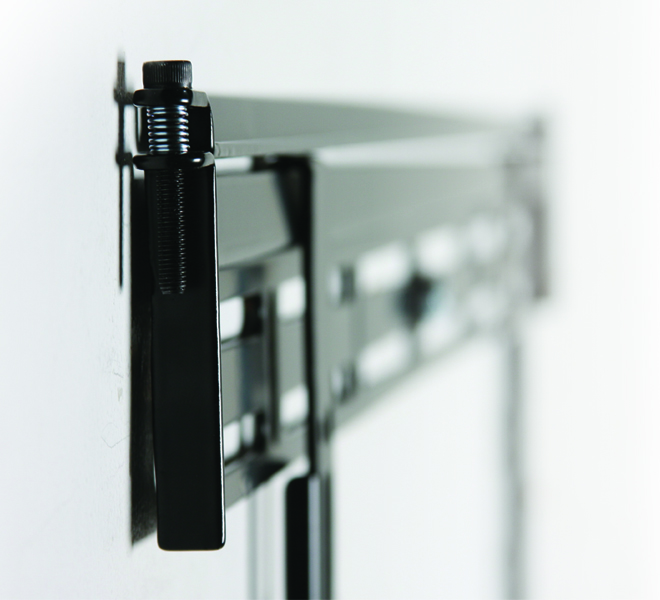

• Features ‘OWLS’™ On Wall Levelling System
• Suitable for concrete / brick or up to 32” stud walls
• Security locking screws, Allen key and locking bar provided for secure installation
• Universal screen fixing kit supplied, including M4, M5, M6, M8 screws and spacers
• Simple ‘hook-on’ installation with all mounting hardware included

• Screen Size: up to 80”
• Dist from Wall: 14mm (0.6”)
• VESA Compatibility:
  75 x 75, 100 x 100, 200 x 100, 200 x 200, 200 x 300, 300 x 200,
  300 x 300, 400 x 200, 400 x 300, 400 x 400, 600 x 400, 800 x 400, 800 x 500
• Community Design: 001713280-0018
• Patent Number: 2416050
