Universal Flat Screen Wall Mount with Tilt

BT8432

Easy Torsion-Tilt System




Designed to mount large to extra-large sized screens, the BT8432 is a flat screen wall mount that features a unique ‘Torsion-Tilt’ mechanism which allows easy tilt adjustment of the screen up to +/-15°. Also suitable for pole mounting using B-Tech’s Accessory Collars, the BT8432 features levelling screws to adjust the screen level post installation as well as locking screws which help prevent unauthorised removal of the screen.

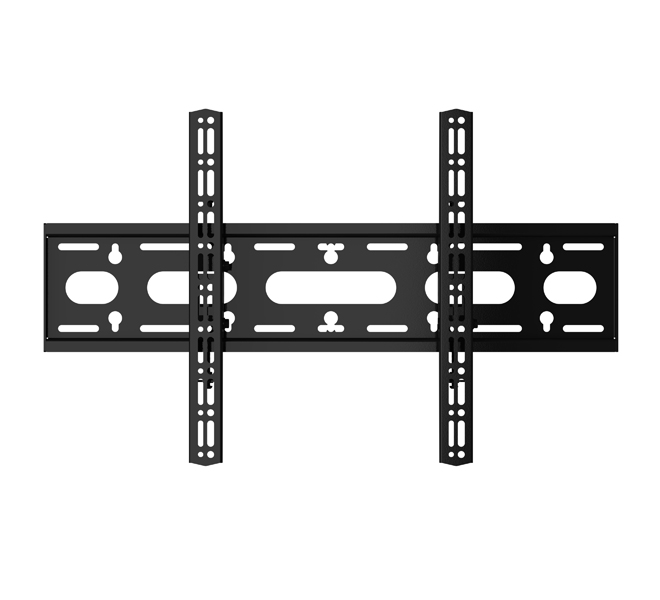

BT8432 - Universal Flat Screen Wall Mount with Tilt


  • Unique 'Torsion-Tilt' mechanism for easy tilt adjustment
  • Post installation screen alignment for perfect screen positioning

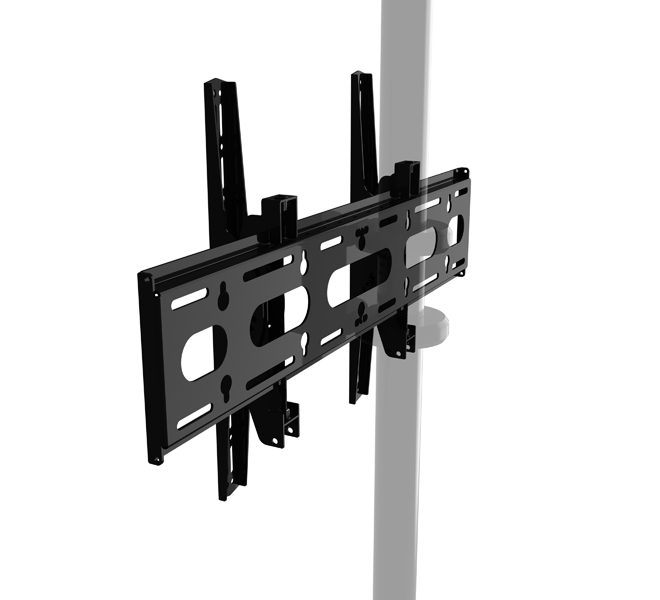

  • Compatible with B-Tech's collar and pole system for pole mounting screens
  • Arms feature levelling screws to adjust the screen height
  • Safety screws help prevent unauthorised removal of screens
  • Simple ‘hook-on’ installation
  • All mounting hardware included
  • Recommended screen size: 49”- 80"
  • Max load when wall mounted: 70kg
  • Max load when pole mounted: 50kg
  • VESA® compatibility: up to 600 x 400
  • Universal fixings: up to 677 x 400mm
  • Tilt: +/-15°
  • Distance from wall (flat): 81mm
  • Distance from wall (full tilt): 148mm
BT8432 - Universal Flat Screen Wall Mount with Tilt BT8432 - Arms feature levelling screws to adjust the screen height once mounted BT8432 - Security locking screws and Allen key provided for a secure installation BT8432 - Universal Flat Screen Wall Mount with Tilt - Lifestyle Image

Specification Sheet (PDF)

Assembly Leaflet (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)
