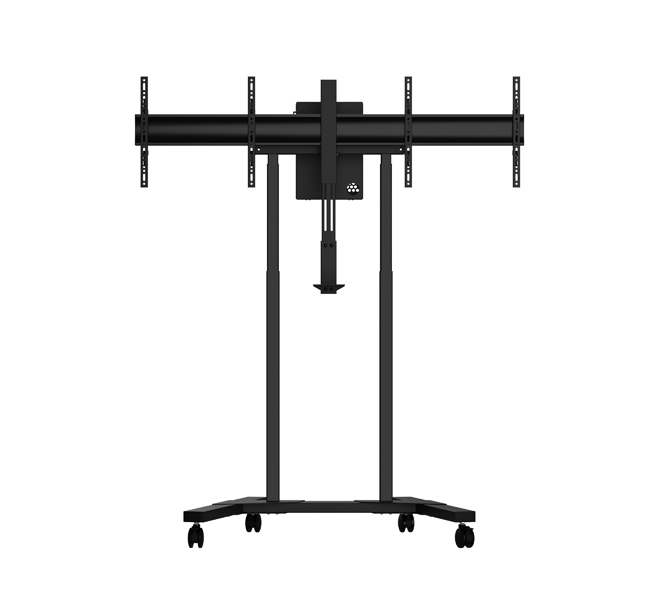

Momentum E-Lift Duo Motorised Twin Screen VC Trolley

BT8554

For twin screens up to 46"




Part of B-Tech’s Momentum Range of mobile display solutions, the BT8554 Momentum E-Lift Duo is a motorised, height-adjustable trolley designed for twin displays up to 46" each. Its electronic height adjustment system allows for effortless raising and lowering of the screens via a wired control panel, with an adjustment range of up to 650mm that makes the display accessible to a variety of users. Capable of mounting dual screens up to 25kg and featuring a sleek and modern design aesthetic, quick assembly and ease of use. An integrated storage unit at the rear provides convenient space for cable management and AV equipment, making the complete AV setup both neat and practical.









BT8554
  • Motorised height-adjustment for precise screen positioning
  • Supplied with a wired control console for easy height adjustment
  • Non-marking locking / braked castors included
  • Storage compartment on the rear stores cables and AV equipment
  • Universal design suitable for mounting two screens side by side
  • VC shelf for cameras with 1/4" thread and 100 x 100mm fixing points
  • Auto-stop; prevents screen from movement when resistance is felt
  • Levelling screws for simple post-install alignment
  • Safety screws help prevent unauthorised removal of the screen
  • Simple hook-on screen installation
  • All mounting hardware included
  • Recommended screen size: 39" (99cm) up to 46" (117cm)
  • Max load: 25kg (55lbs) per screen
  • VESA® & non-VESA fixings: up to 400 x 400
  • Dimensions (Cart): W:1504mm (59.2") H:1302.9mm (51.3") - 1952.9mm (76.9") D:832.8mm (32.8")
  • Dimensions (Inner Storage Box): H: 377mm (14.8") W: 257mm (10.1") D: 95.2mm (3.7")
  • Dimensions (VC Shelf): H: 3mm (0.11") W: 120mm (4.7") D: 235mm (9.2")
  • Height adjustment range: up to 650mm (25.6")
  • Height adjustment speed: 35mm (1.37") per second

Specification Sheet

Specification Sheet - English (PDF)

Specification Sheet - US (PDF)



Technical Drawing

Technical Drawing (PDF)
