Flat Screen Display Trolley / Stand

BT8503

For Large Screens




Designed for large screens mounted in landscape or portrait style, the BT8503 is ideal for all professional applications. A simple 'hook-on' installation makes fitting a screen to the trolley quick and easy. The BT8503 includes non-marking braked castors and alternative levelling feet, to create either a portable or freestanding configuration.






  • Flat screen trolley suitable for large screens
  • Can mount screens in a landscape or portrait orientation
  • Includes universal flat screen interface kit
  • 1.8m Ø50mm poles supplied with 5 cable management holes
  • Includes non-marking 3” locking/braked castors & alternative levelling feet
  • Simple ‘hook-on’ installation
  • All mounting hardware included
  • Recommended screen size: up to 60” (152.4cm)
  • Max load: 50kg (110lbs)
  • VESA® and non-Vesa fixings (landscape): up to 800mm x 600mm
  • VESA® and non-Vesa fixings (portrait): up to 800mm x 400mm
  • Dimensions (with castors): W: 1120mm (44") H: 1940mm (76.4") D: 782mm (30.8")
  • Colour: Black

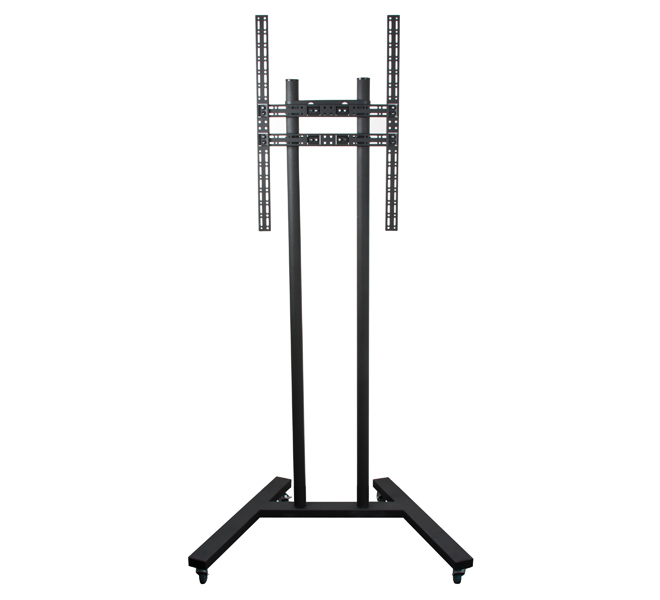

BT8503 Large Flat Screen Display Trolley /Stand BT8503 -Portrait BT8503 - With Screen BT8503 - Non-marking locking / braked castors

Specification Sheets

Specification Sheet (PDF)

Specification Sheet - US (PDF)

Specification Sheet - Polish (PDF)

Technisches Datenblatt - Deutsch (PDF)

Especificationes Technicas - Español (PDF)



Installation Guide

Installation Guide (PDF)

Montageanleitung - Deutsch (PDF)



Technical Drawing

Technical Drawing (DXF)

Technical Drawing (PDF)
