System X™ Trolley For 55inch Microsoft Surface Hub

BT8507

For 55" Microsoft Surface Hub™

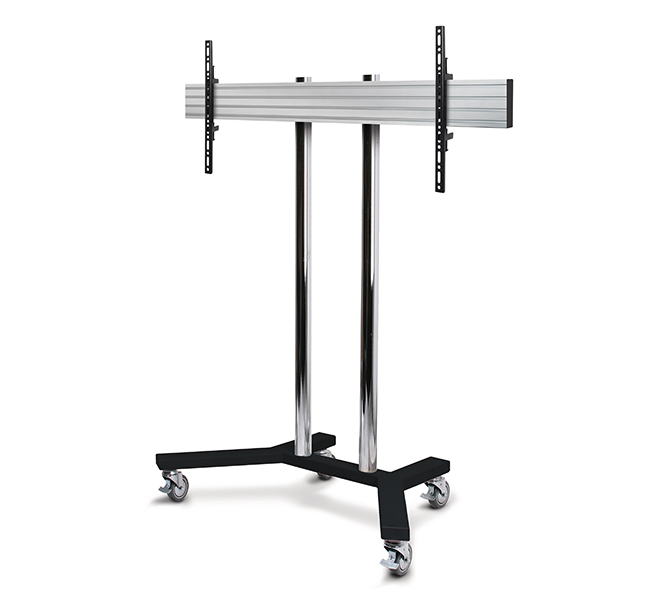

The BT8507 is a mobile solution designed to mount Microsoft's 55" Surface Hub and other large interactive displays up to 65". Capable of supporting heavy duty loads, the trolley has a welcome rigidity which means mounted touchscreens do not move or flex whilst in use. Levelling screws allow easy height adjustment of the screen once mounted and integrated cable management keeps finished installations neat and tidy. Non-marking 4" braked castors allow the trolley to be re-located easily and safely without marking or scuffing floor surfaces.






  • Designed to mount Microsoft’s 55" Surface Hub display
  • The universal design is ideal for other standard or interactive screens up to 65"
  • 1.5m Ø60mm poles supplied with 5 cable management holes
  • Interface arms include levelling screws to adjust the height of the screen
  • Safety screws help prevent unauthorised removal of screens
  • Includes non-marking 4” locking/braked castors & alternative levelling feet
  • Integrated cable management
  • Shelves and other accessories can be fitted to the poles using Ø60mm accessory collars
    (available separately)
  • Recommended screen size: up to 65" (165cm)
  • Recommended surface hub size: 55" (139.7cm)
  • Max load: 70kg (154.3lbs)
  • VESA® and non-VESA fixings: up to 1400mm x 400mm
  • Dimensions: W: 1504mm (59.2") H: 1691mm (66.6") D: 774mm (30.5")
  • Colour option (Ø60mm poles): Black or Chrome

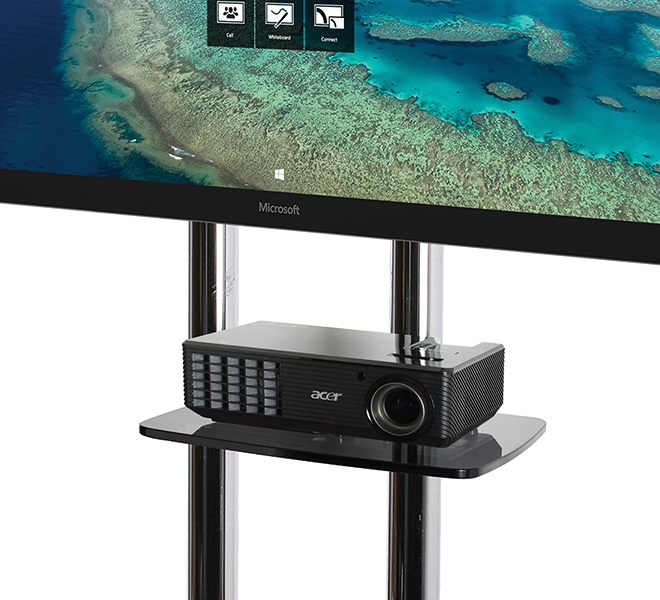

BT8507 - Touchscreen Trolley for Microsoft® SurfaceHub™ Screens can be adjusted to any height on the poles, for the perfect viewing angle Includes non-marking 4 Collar compatible accessories such as shelves can be fitted to the poles
