CCTV Ceiling Mount


With NPT Adapter


The BT5965 is a ceiling mount designed to fix equipment such as CCTV cameras using an NPT standard 1.5" thread. Available with a 1 or 2 metre ceiling drop, the BT5965 features integrated cable management allowing cables to run through the centre of the pole and out through either the top or side of the ceiling mount, ensuring finished installations are neat and tidy. For longer drops, the pole length can be extended with a joiner (BT5924) and additional poles (BT5935) from the System V Range, whilst accessories such as a flat screen can be added with the use of a ø38mm accessory collar (BT5952) and compatible screen mount.



  BT5965 - Ceiling Mount with NPT Adapter designed for use with accessories with NPT 1.5

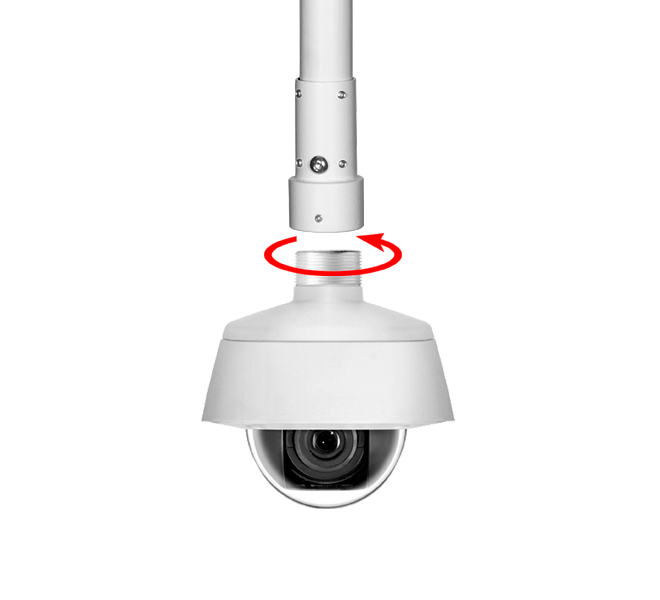

  • Mount an NPT 1.5" compatible accessory to the ceiling

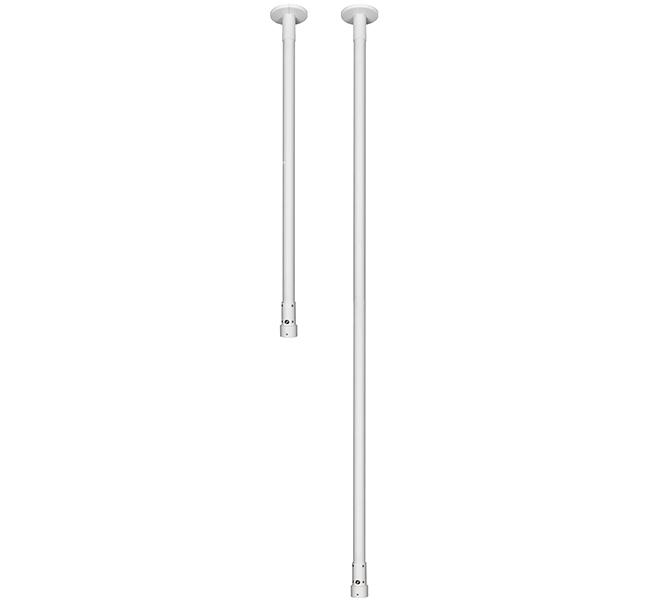

  • Available in a choice of two different drop lengths
  • Multiple grub screws allow micro-adjustment of the pole to ensure a perfectly angled drop

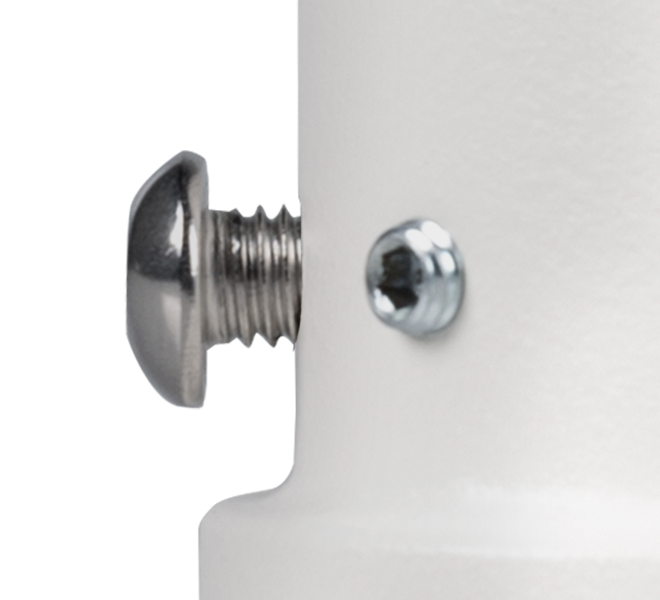

  • Safety bolts ensure pole and adaptor are securely joined

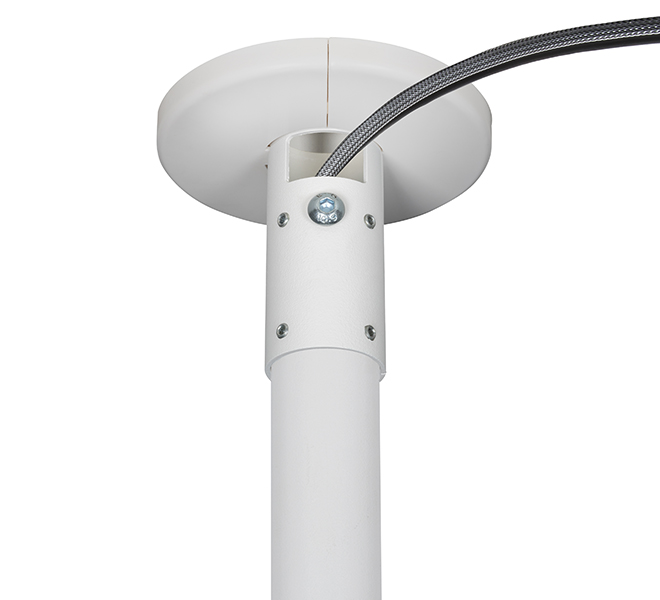

  • Integrated cable management allows cables to pass through the centre of the pole to the cctv camera and out through the top or side of the ceiling mount
  • Max. load: 25kg (55lbs)
  • BT5965-FD100 pole length: 1067mm (42")
  • BT5965-FD200 pole length: 2067mm (81.4")
  • Colour: White
BT5965 - Attach an NPT 1.5 BT5965 - Mount an NPT 1.5 BT5965 - Integrated cable management BT5965 - Safety bolts ensure pole and adaptor are securely joined

Product Specification Sheets

Specification Sheet - English (PDF)

Fiche de Spécifications - Français (PDF)

Specificatieblad - Nederlands (PDF)

Hoja de especificación - Español (PDF)

Spezifikationsblatt - Deutsch (PDF)


Assembly Leaflet

Installation Guide (PDF)


Technical Drawings

Technical Drawing FD100 (PDF)

Technical Drawing FD200 (PDF)
