Flat Screen Mount for ceilings and angled walls



Wall Mount BT7555




BT7555 is a specialist digital signage solution capable of mounting a single screen up to 50kg, to a ceiling, wall or column at any inclination. For added safety, screens can be secured in place once mounted and features including B-Tech's on wall levelling system, easy screen 'hook-on' and keyhole mounting, make this a quick and simple installation.








BT7555 - Flat Screen Mount For Ceilings And Angled Walls

  • Allows a screen to be safely mounted to a ceiling, wall or column at any inclination
  • Alternatively can be used as a standard wall mount
  • Fixed mount follows the angle of the surface to which it is mounted

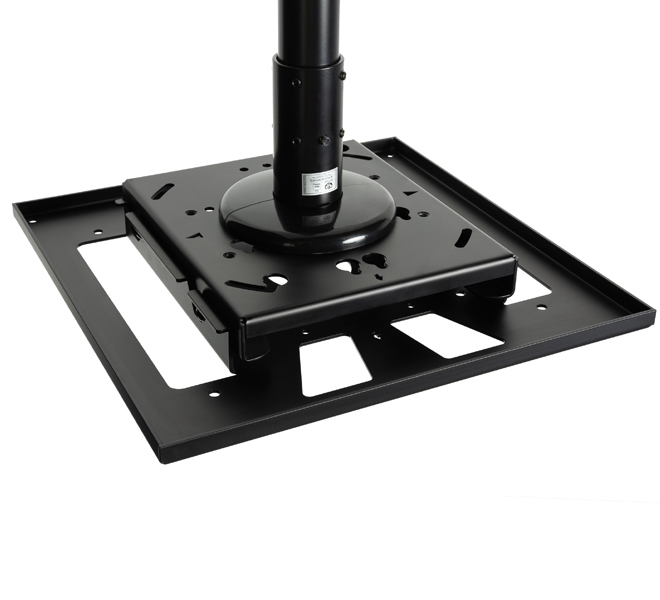

  • Can also be pole mounted using B-Tech's collar and pole mounting system
  • Screen is secured in place once mounted
  • Includes cable management for a neat and tidy installation
  • Features ‘OWLS’ On Wall Levelling System to aid installation
  • Wall plate features keyhole mounting and directional guides for a quick and easy installation
  • Simple 'hook-on' screen installation
  • Recommended screen size: 37" - 65"
  • Max load: 50kg
  • VESA fixings: 100 x 100 up to 400 x 400
  • Distance from wall: 57mm
  • Colour: Black

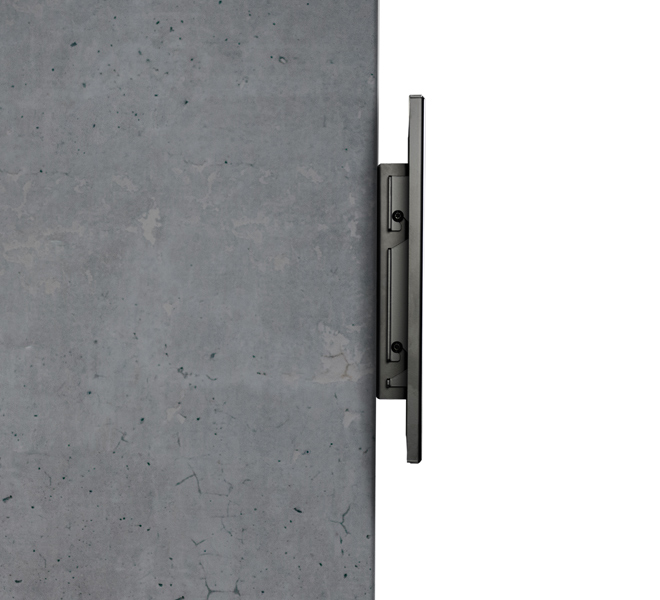

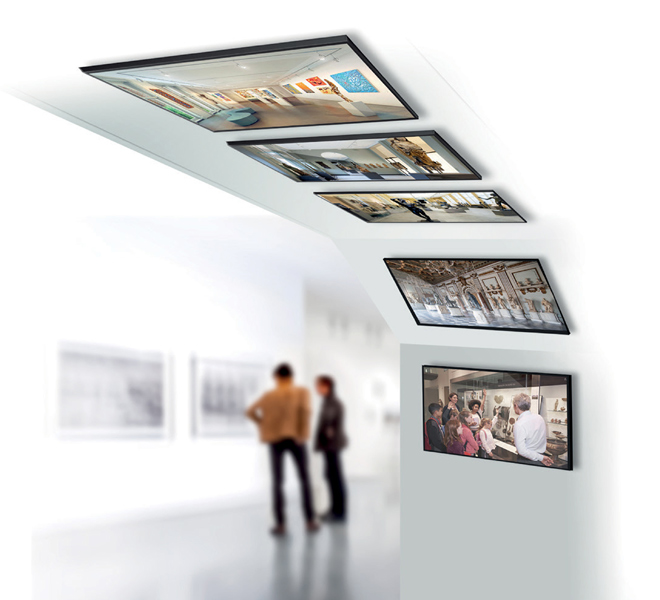

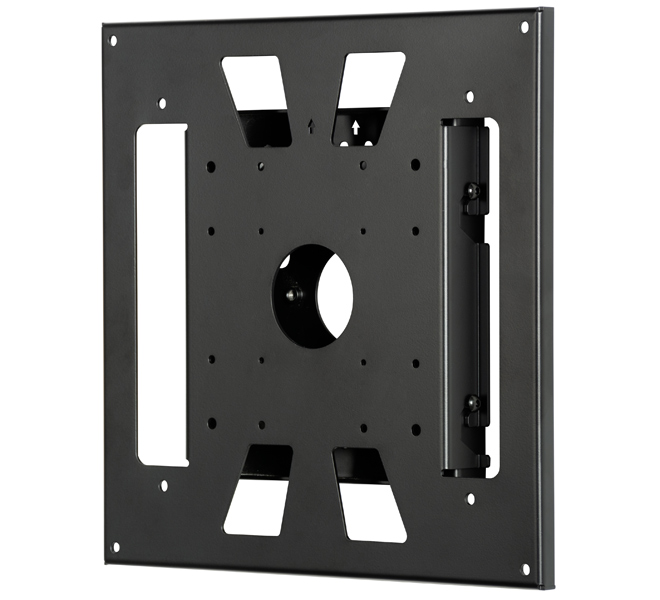

BT7555 - Flat Screen Mount for ceilings and angled walls BT7555 - Mounts directly to the ceilings and to angled walls BT7555 - Can be used as a standard wall mount BT7555 - Multiple fixing points and keyhole mounting for ease of installation onto surfaces or to other mounting hardware



Specification Sheets

Product Specification Sheet (English)

Installation Guide

Installation Guide (PDF)

Technical Drawings

Technical Drawing (PDF)
