Pop-Out Flat Screen Wall Mount

BT8309

 With Micro-Adjustment




The BT8309 is designed to install small to medium screens into recessed walls. The pop-out mechanism allows for a flush to the wall installation while still allowing access to the rear of the screen for easy installation and service access. Tool-less micro-adjustment is included on each corner to allow screens to perfectly align to the recess and additional screens in a videowall installation. BT8309 also allows screens to be mounted in landscape or portrait orientation and is compatible with B-Tech's professional pole and collar system for pole-mounted installs.





   BT8309 - Pop-Out Flat Screen Wall Mount with Micro-Adjustment
  • Perfect solution for mounting screens into a recessed wall
  • Can also be used to create videowall installations
  • Push to open / push to close system provides quick and easy service access
  • Micro-adjustment of +/-6mm at each corner for seamless display alignment
  • Suitable for landscape or portrait screen mounting
  • Suitable for both wall or pole mounting
  • Keyhole mounting for quick and easy installation
  • Levelling screws allow adjustment of screen height
  • Integrated locking mechanism prevents accidental pop-out of mount
  • Integrated cable management
  • 'Hook-on' installation with all mounting hardware included
  • Recommended screen size: up to 42" (106cm)
  • Max load: 25kg (55lbs)
  • VESA® & non-VESA fixings: 75 x75 up to 200 x 200
  • Flat to wall depth: 73mm* (2.9") (+/-6mm (0.2") micro-adjustment)
  • Popped out depth: 191mm (7.5") (+/-6mm (0.2") micro-adjustment)
    *Please note using the included Interface Adaptor Arms to mount VESA 200 x 200 screens will increase the total depth of the product by 4mm (0.15"), for a total depth of: 77mm (3") or 195mm (7.7") whilst popped out.
  • Screen height adjustment: +12mm (0.5")
  • Colour: Black

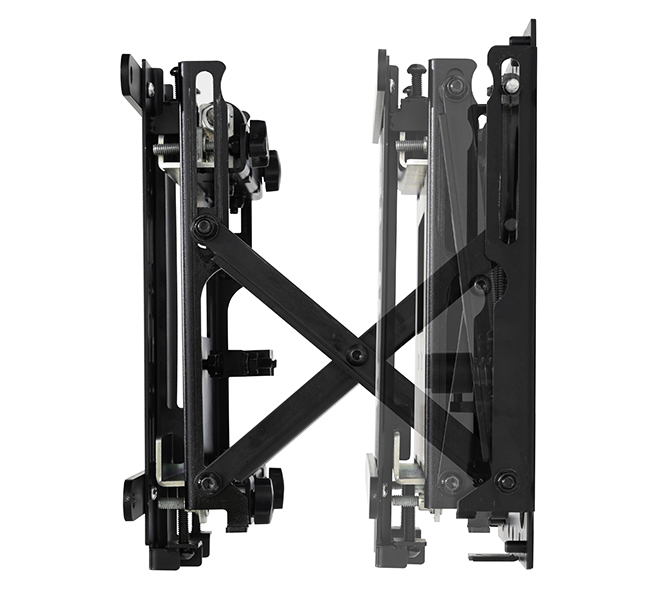

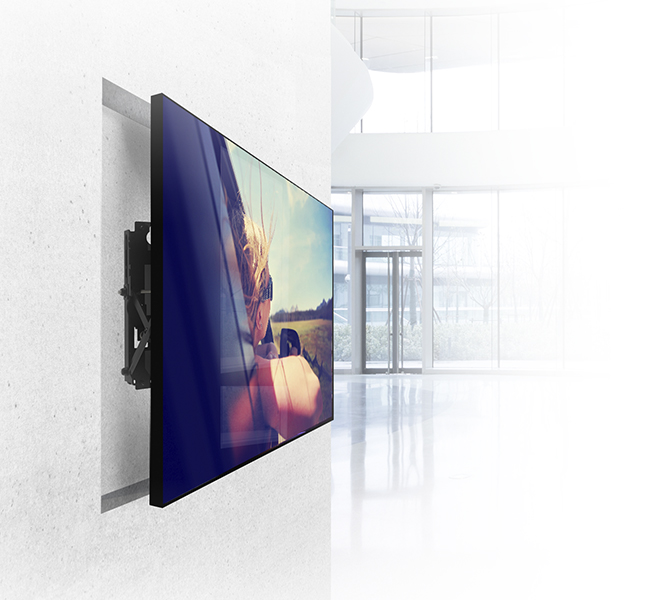

BT8309 - Perfect solution for mounting screens into a recessed wall BT8309 - Push to open / push to close system provides quick and easy service access

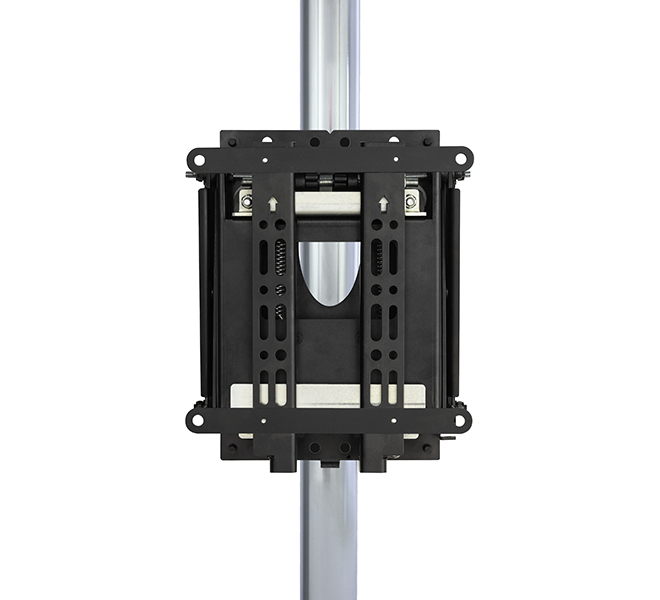

BT8309 - Compatible with B=Tech's professional pole and collar system for pole mounting

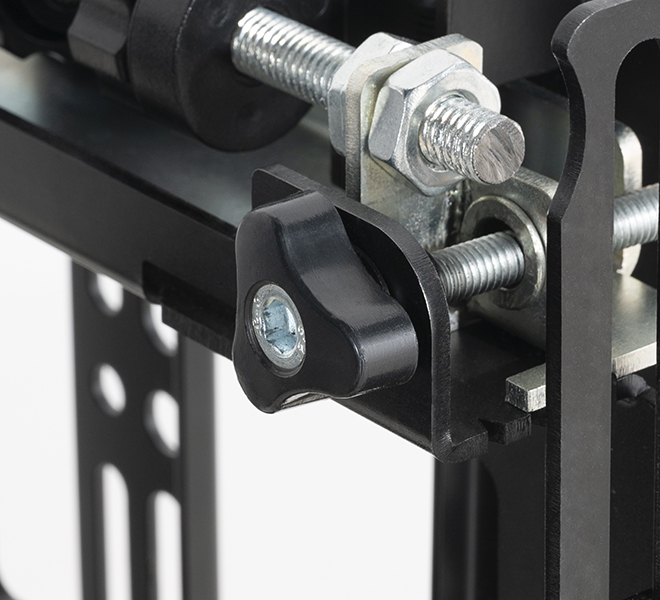

 BT8309 - Tool-less micro-adjustment for seamless display alignment

Specification Sheet

Specification Sheet (PDF)

Spezifikationsblatt - Deutsch (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)

Technical Drawing (DXF)
