Universal Pop-Out Videowall Mounting System

BT8341

Quick & Easy Service Access

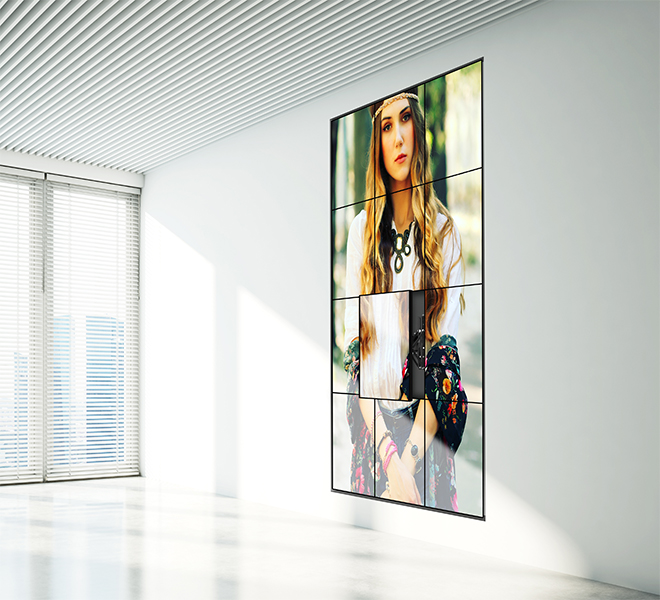

The BT8341 is a modular wall mounting system for Videowall installations of any size and features pop-in, pop-out interface arms designed to aid installation and allow access to the rear of the screens for servicing and maintenance. As part of the System X range, the BT8341 features a contemporary, lightweight yet incredibly strong design with a high-end aesthetic quality and micro-adjustment for seamless screen alignment.

tuv logo





















Configure a BT8341

  • Universal design suitable for all sized screens up to 50kg (per screen)

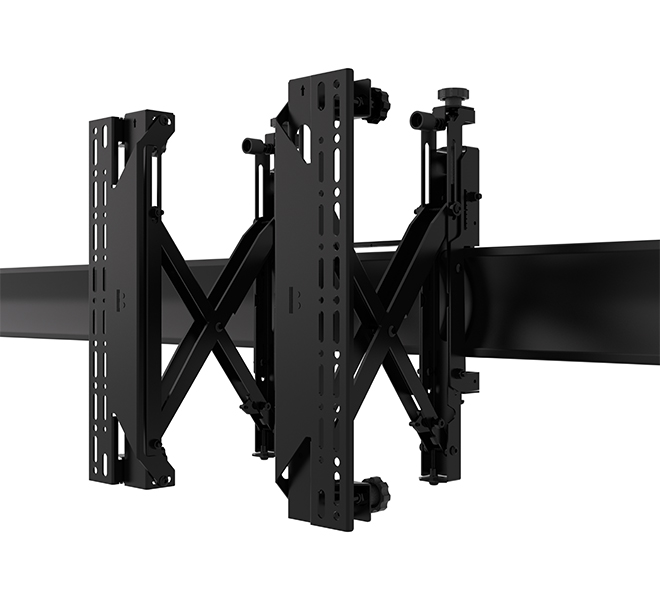

  • Features pop-in, pop-out function to allow access to the rear of screens for servicing
    and maintenance and to aid installation

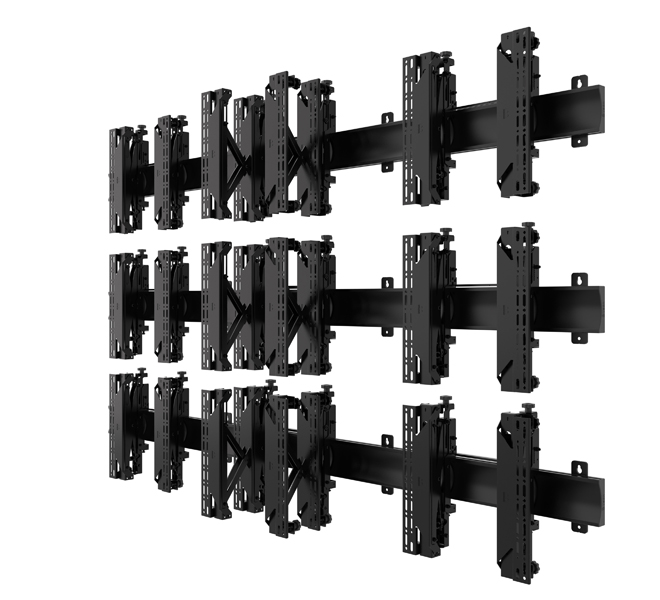

  • Can be used in an endless variety of configurations
  • Tool-less micro-adjustments at 8 points for seamless display alignment
  • Suitable for landscape or portrait mounting
  • High-end aesthetic quality
  • Safety screws help prevent unauthorised removal of screens
  • Ideal for recess mounting videowalls
  • Arms include locking screw to prevent accidental pop-out of screens
  • Cable management included for a neat and tidy installation
  • Multiple rail lengths available (rails can also be joined to create larger installs)
  • TUV certified
  • Can be combined with System 2 poles and collars for floor-to-ceiling installations*

    *Pop-in, pop-out solutions that are mounted from the ceiling should also be fixed to
    the floor to prevent poles flexing when pushing screens in and out. For more
    information contact your local sales representative
  • Recommended screen size: 39" (99cm) - 75" (190cm)
  • Max load: 50kg (110lbs) (per screen)
  • Depth (flat): 105.4mm (4.15") (+/-10mm micro-adjustment)
  • Depth (popped out): 273.9mm (10.75") (+/-10mm micro-adjustment)
  • VESA® & non-VESA fixings: (max vertical dimension) 900mm (35.4")*
  • Colour (interface arms): Black
  • Colour (horizontal rail): Black or Silver

    *Refers to maximum vertical fixing dimension for a typical configuration. Correctly sized
    interface arms and adaptors will be supplied as necessary to suit the mounting pattern you require.
BT8341 - Universal Pop-In, Pop-Out Video Wall Mounting System Tool-less micro-adjustment at 8 points for seamless display alignment Push to open / push to close system provides quick and easy service access Suitable for landscape or portrait mounting, screens can also be recess mounted

BT8341 Product Overview Video

Specification Sheets

BT8341 Specification Sheet (PDF)

BT8341 Fiche de Spécifications - Français (PDF)

BT8341 Specificatieblad - Nederlands (PDF)

BT8341 Hoja de especificación - Español (PDF)

BT8341 Spezifikationsblatt - Deutsch (PDF)

BT8341 Specification Sheet - US Letter (PDF - Imperial Units)



Installation Guide

Installation Guide (PDF)

Montageanleitung - Deutsch (PDF)





You must log in to view this content
