Universal Menu Board Mounting System

BT8330

For wall mounting menu boards




The BT8330 is a modular wall mounting system for menu board installations of any size. The BT8330 can mount screens in landscape or portrait orientations with the option for tilt adjustment up to +20° for enhanced overhead visibility, perfect for fast food restaurants. As part of the System X range, the BT8330 can be used in thousands of different configurations and must be ordered according to your requirements using B-Tech's online configuration tool.

tuv logo




















Configure a BT8330

  • Universal design suitable for all sized screens up to 50kg (per screen)
  • High-end aesthetic quality
  • Suitable for landscape or portrait mounting

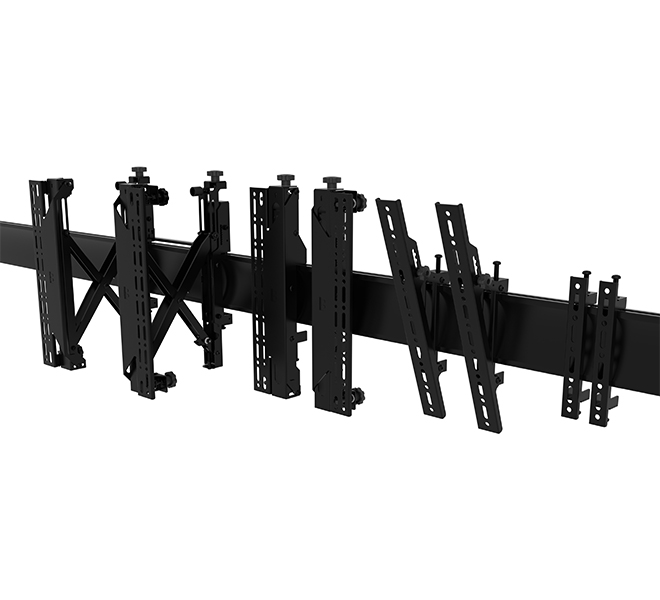

  • Choice of fixed or tilting interface arms available to suit a range of installs
  • Can be used with BT8390-VESA400MAF micro-adjusment arms if desired
  • Can be used to mount XXL screens with vertical fixings of 800mm*
  • All arms feature levelling screws to adjust the screen height
  • Tilting arms feature up to +20° tilt adjustment for enhanced overhead visibility

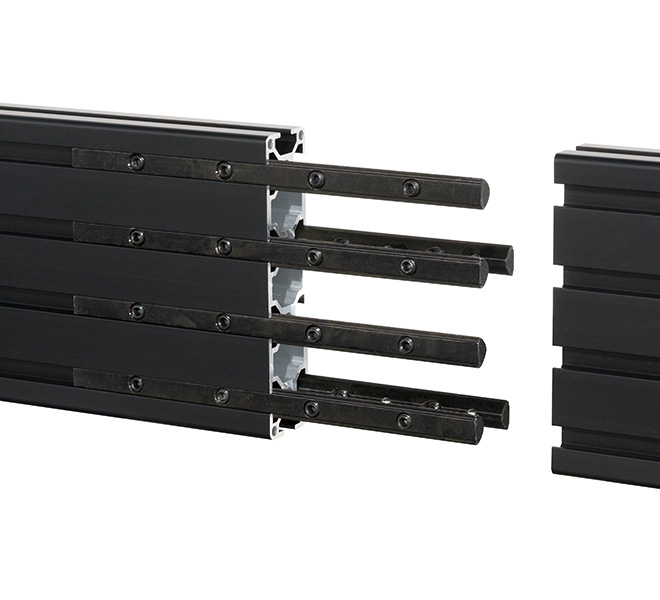

  • Multiple rail lengths available (rails can be also be joined)
  • TUV certified

    *Please see the BT8390-VESA800F interface arms on our website or
     contact your local sales representative for more details.
  • Recommended screen size: 32” (81.3cm) - 75" (190cm)
  • Max load: 50kg (110lbs) (per screen)
  • VESA® & non-VESA fixings: up to 900mm*
  • Tilt (tilt arms only): +20°
  • Distance from wall (fixed arms); 48mm (1.9")**
  • Distance from wall (tilt arms): 58.4mm (2.3")
  • Distance from wall (micro-adjustment arms):86mm (+/-10mm)
  • Colour (VESA arms): Black
  • Colour (horizontal rail): Black

    *Refers to maximum vertical fixing dimension for a typical configuration. Correctly sized interface arms and adaptors will be supplied as necessary to suit the mounting pattern you require.
    **Please see the BT8390-VESA800F interface arms on our website or contact your local sales representative for more details.

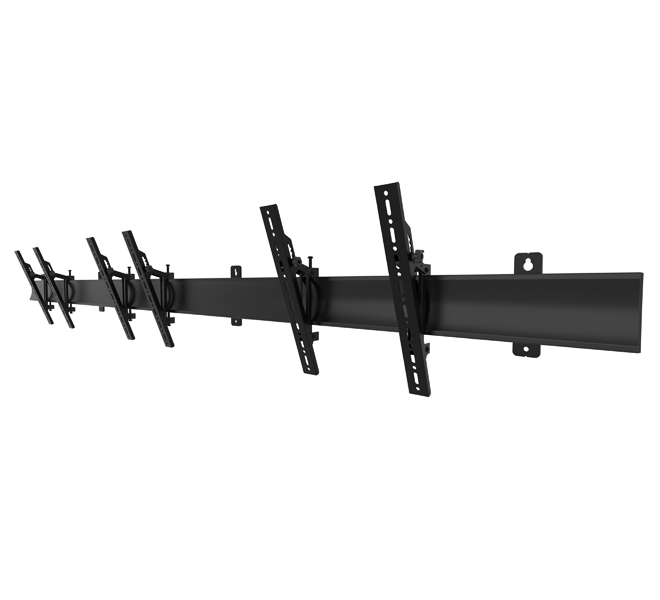

BT8330 - Universal Menu Board Mounting System Choice of fixed or tilting interface arms available to suit a range of installs Suitable for landscape or portrait mounting Multiple rail lengths available (rails can also be joined to create larger installs)

Installation Overview Video

Specification Sheets

Specification Sheet - English (PDF)

Specification Sheet - US (PDF)

Fiche de Spécifications - Français (PDF)

Hoja de Especificación - Español (PDF)

Spezifikationsblatt - Deutsch (PDF)

Specificatieblad - Nederlands (PDF)



Installation Guide

Installation Guide (PDF)

Montageanleitung - Deutsch (PDF)



Technical Drawing

Technical Drawing (PDF)

Technical Drawing (DXF)
