Curved Universal Ceiling Mounted
Menu Board Mounting System

BT8333

Available in multiple configurations




Designed to mount menu boards in curved configurations, the BT8333 is a ceiling mounted system with a universal design suitable for all screens from 32" to 70". As part of B-Tech's dynamic System X range, this contemporary mounting solution is lightweight yet incredibly strong, has a high-end aesthetic quality and comes with integrated angle guides, cable management and a choice of interface arms.


  BT8333 - Curved Menu Board Ceiling Mount
  • Configurable mounting solution available to order to your requirements from stock
  • Suitable for landscape or portrait mounting
  • Integrated angle guides eliminate the need to measure required angles
  • Integrated rail mounting guides ensure the join position is consistent throughout the
    installation without the need to measure
  • Choose fixed or micro-adjustment interface arms
  • Tool-less micro-adjustments for seamless display alignment
  • All arms feature levelling screws to adjust the screen height
  • Integrated cable management
  • Safety screws help prevent unauthorised removal of screens
  • Simple installation with all mounting hardware included
  • For screen sizes: 32" (81cm) -70" (178cm)
  • Max load: 50kg (110lbs) (per screen)
  • Angle adjustment range: +/- 45° between screens
  • VESA® & non-VESA fxings: up to 1200mm*
  • Pole length: 0.5m (19.7") up to 3m (118.1") (can be cut to length)
  • Colour (intrerface arms): Black
  • Colour (horizontal rail): Black or Silver
  • Colour (poles & ceiling mount): Black, White or Chrome

    *Refers to maximum vertical fixing dimension for a typical configuration. Correctly sized interface
    arms and adaptors will be supplied as necessary to suit the mounting pattern you require.

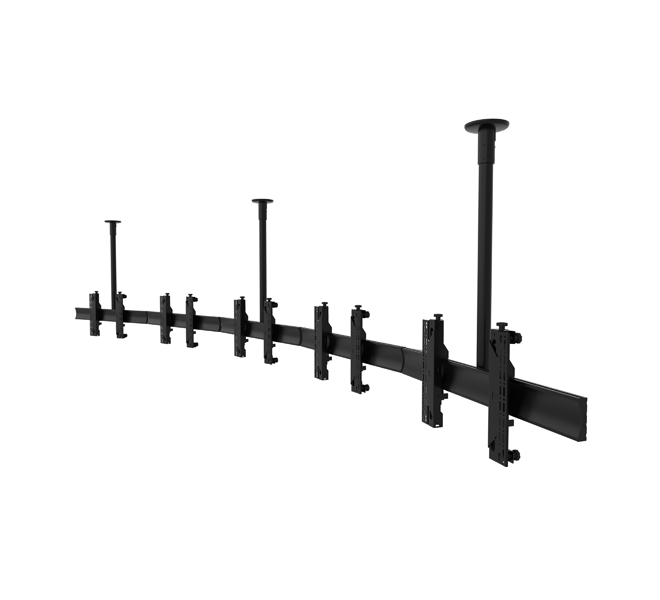

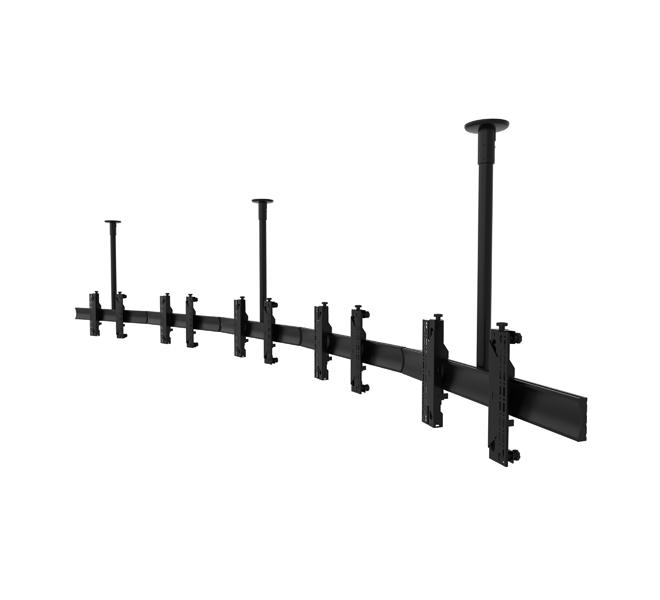

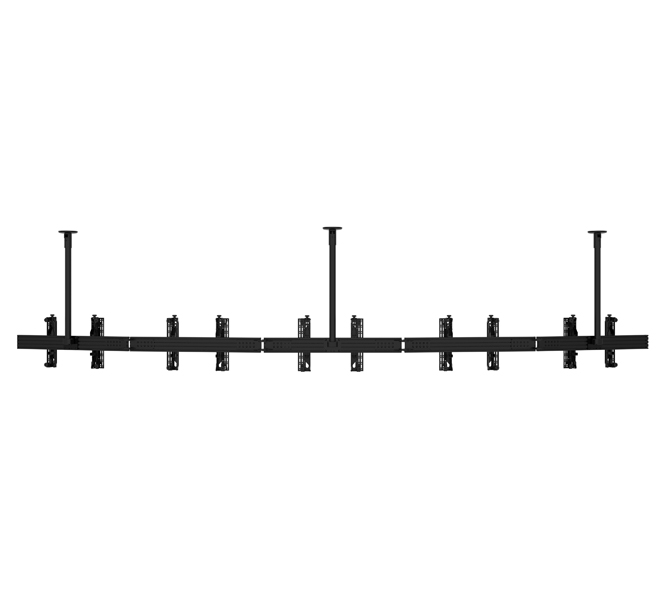

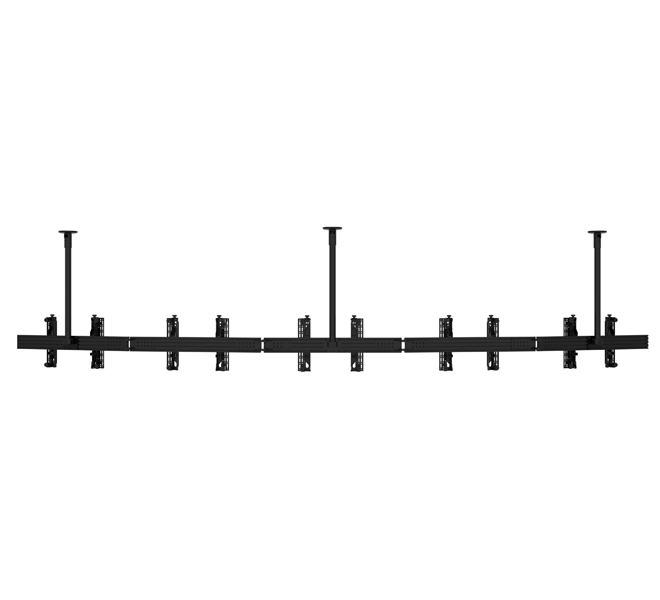

BT8333 - Curved Menu Board Ceiling Mount BT8333 - Curved Menu Board Ceiling Mount BT8333 - Curved Menu Board Ceiling Mount - Rear View BT8333 - Curved Menu Board Ceiling Mount - Rear View

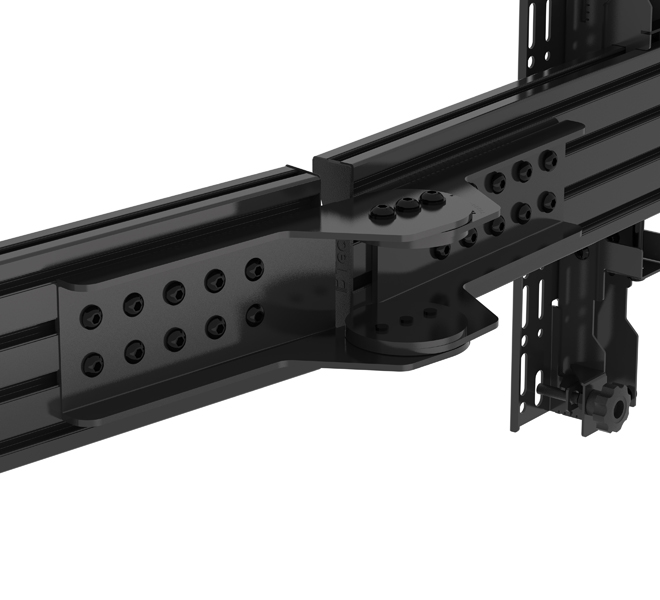

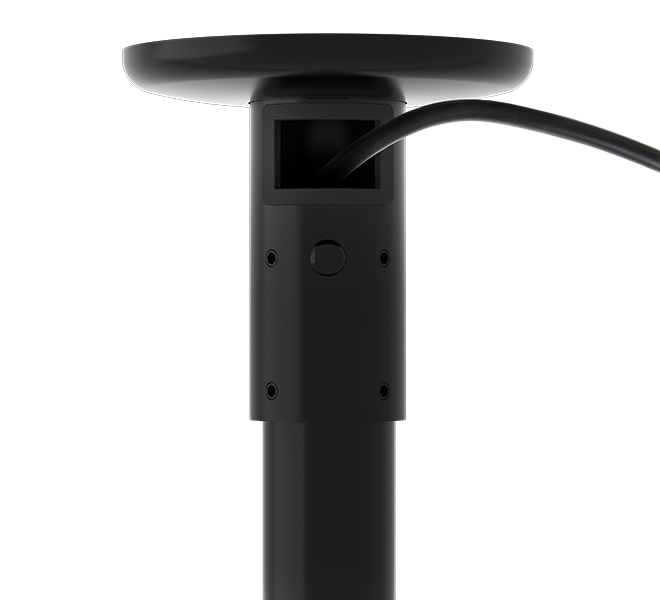

  BT8333 - Integrated cable management BT8333 - Angle up to +/-45° create a concave or convex curved menu board

Specification Sheet

Specification Sheet (PDF)

Spezifikationsblatt - Deutsch (PDF)



Installation Guide

Installation Guide (PDF)

Montageanleitung - Deutsch (PDF)
