Universal Curved Videowall Ceiling Mount

BT8343

Available in multiple configurations




Designed to mount videowalls in curved configurations, the BT8343 is a ceiling mounted system with a universal design suitable for all screens from 39" to 70". As part of B-Tech's dynamic System X range, this contemporary mounting solution is lightweight yet incredibly strong, has a high-end aesthetic quality and comes with integrated angle guides, cable management and a choice of interface arms.



  • Configurable mounting solution available to order to your requirements from stock
  • Suitable for landscape or portrait mounting
  • Easy to use adjustable adaptor creates an angled join between screens
  • Integrated angle guides eliminate the need to measure required angles
  • Integrated rail mounting guides ensure the join position is consistent throughout the
    installation without the need to measure
  • Tool-less micro-adjustments for seamless screen alignment
  • Arms feature levelling screws to adjust the screen height
  • Integrated cable management
  • Safety screws help prevent unauthorised removal of screens
  • Simple installation with all mounting hardware included
  • Recommended screen size: 39" (99cm) - 70" (178cm)
  • Max load: 50kg (110lbs) per screen
  • Angle adjustment range: up to +/- 45° (between screens)
  • VESA® & non-VESA fixings: up to 900mm (35.4")*
  • Pole length: 0.5m (19.7") up to 3m (118.1") (can be cut to length)
  • Colour options (poles & ceiling mount): Black, White or Chrome

    *Refers to maximum vertical fixing dimension for a typical configuration. Correctly sized
    interface
    arms and adaptors will be supplied as necessary to suit the mounting pattern you require.

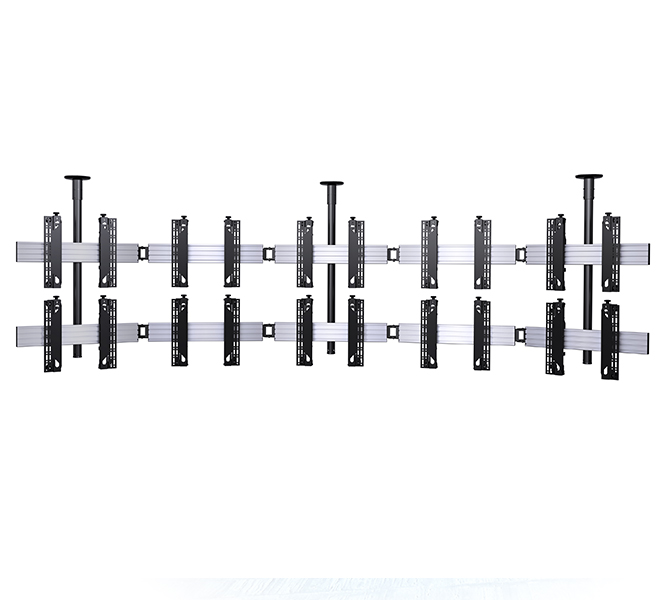

BT8343 - Universal Curved Videowall Ceiling Mount BT8343 - Universal Curved Videowall Ceiling Mount Configurable mounting solution available to order to your requirements from stock Angle up to +/-45° create a concave or convex curved menu board

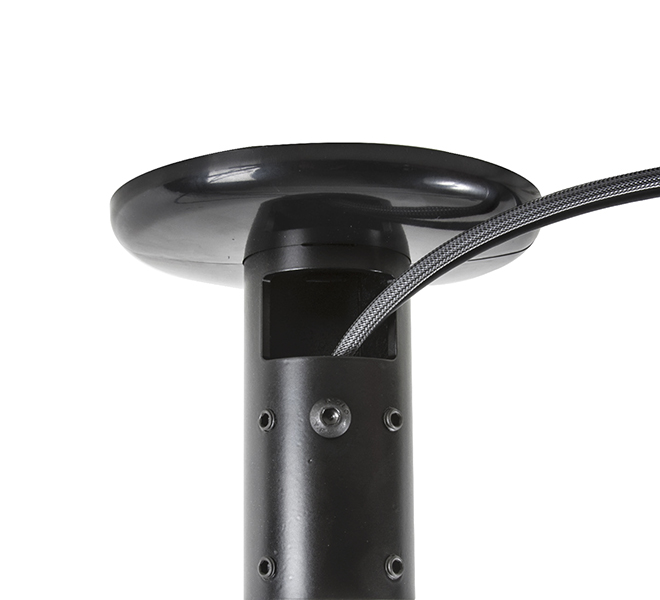

BT8343 - Universal Curved Videowall Ceiling Mount Integrated cable management Ø50mm poles 0.5m - 3m lengths available BT8343 Lifestyle Image

Specification Sheet

Specification Sheet (PDF)

Spezifikationsblatt - Deutsch (PDF)



Installation Guide

Installation Guide (PDF)

Montageanleitung - Deutsch (PDF)
