Universal Flat Screen Wall Mount

BT8442

For Large Screens

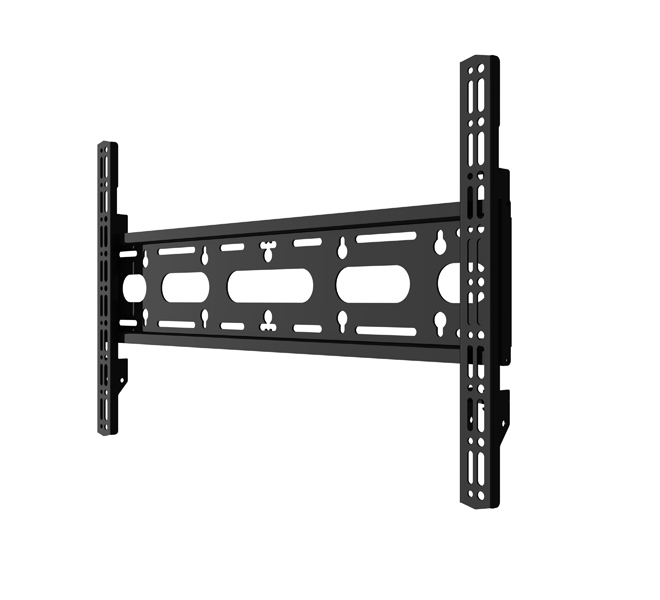

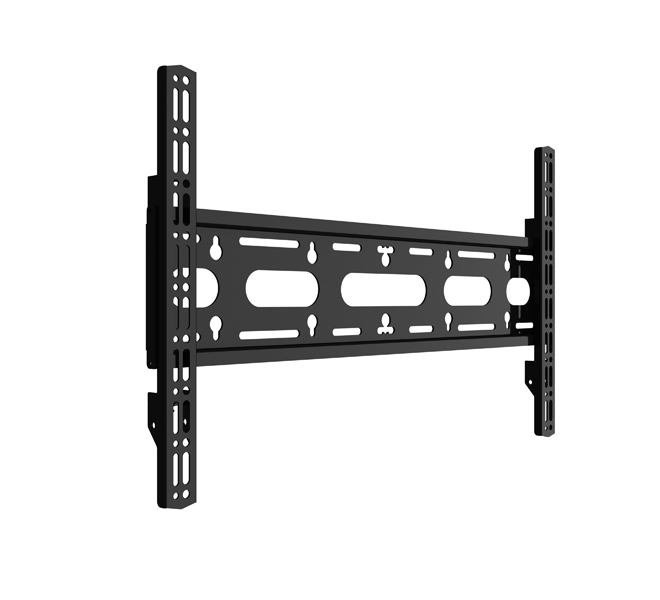

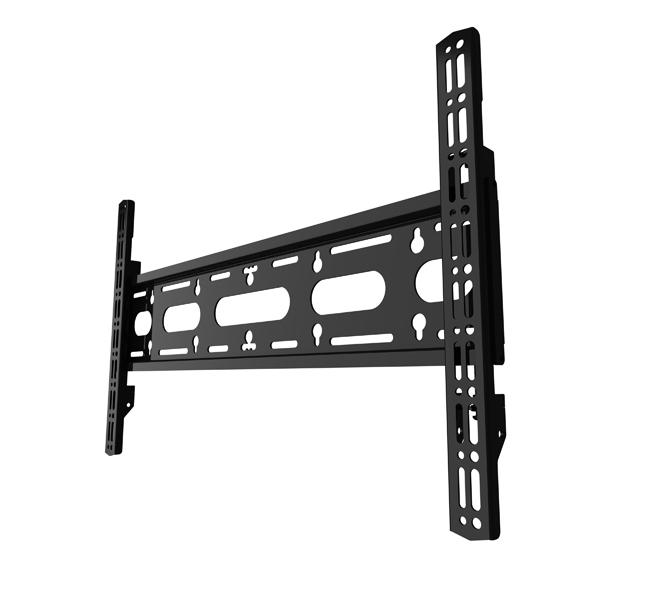

Designed for large sized screens, the BT8442 supports weights up to 80kg and features a low-profile design that mounts screens just 30mm from the wall. The universal interface accommodates mounting patterns up to 656 x 400mm and comes with adjustment screws which allow the screen to be levelled once mounted.


















  • Low profile design for a close to the wall installation
  • Lateral adjustment of screen once mounted

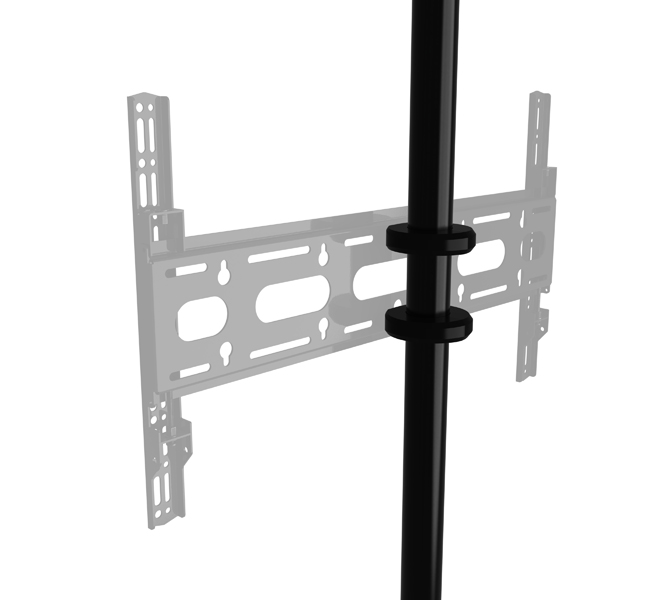

  • Compatible with B-Tech's collar and pole system for pole mounting screens
  • Includes security locking screws and Allen key to help prevent
    unauthorised removal of the screen
  • Simple ‘hook-on’ installation
  • All mounting hardware included
  • Recommended screen size: up to 80" (203cm)
  • Max load: 80kg* (176lbs)

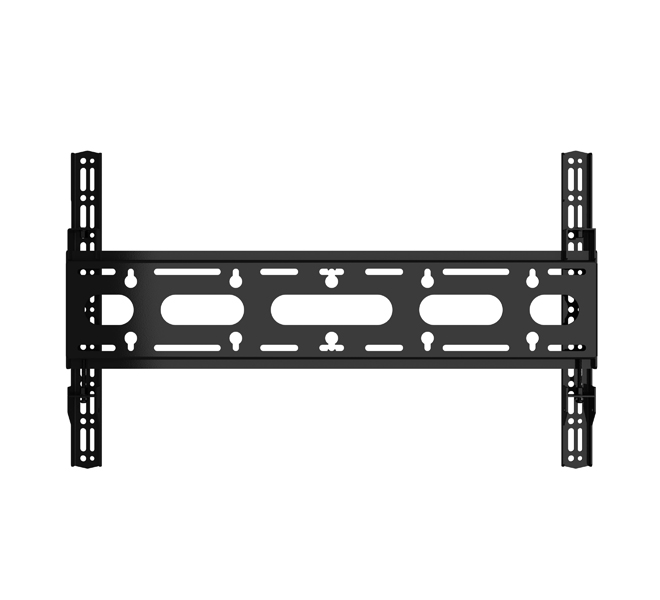

  • VESA® & non-VESA fixings: up to 656 x 400mm

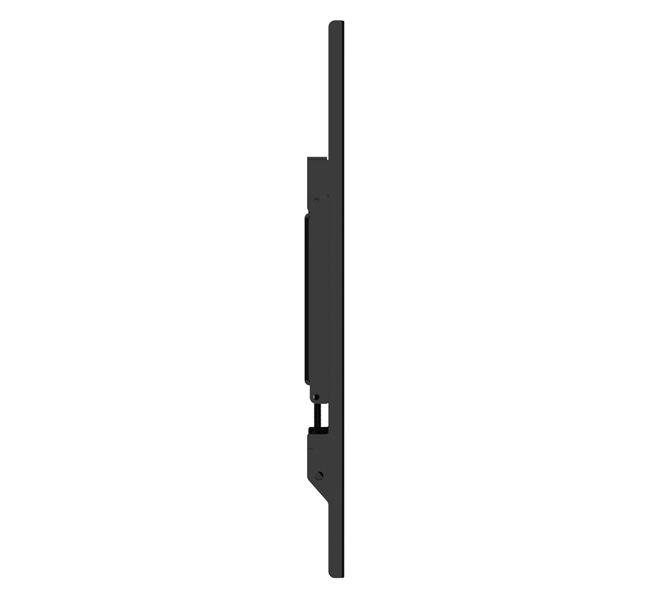

  • Distance from wall: 30mm (1.2")
  • Colour: Black

    *Please note the maximum load is reduced to 50kg when single pole mounted

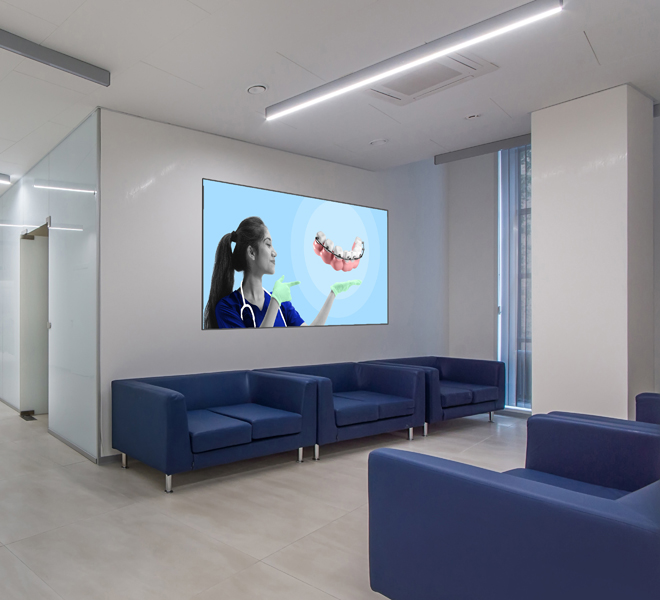

BT8442 Post installation lateral screen alignment for perfect screen positioning Ultra-Slim design mounts screen only 30mm from the wall BT8442 Lifestyle Image

Specification Sheet

Specification Sheet - English (PDF)

Specification Sheet - US Letter (PDF)

Technisches Datenblatt - Deutsch (PDF)

产品规格书 — 中文（PDF)

Trang thông số kỹ thuật - Tiếng Việt (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawings

Technical Drawing (PDF)



Greensheet

Greensheet (PDF)
