Fixed Drop Heavy Duty Projector Ceiling Mount

BT893-FD

For Projectors up to 70kg




Designed to mount projectors up to 70kg from the ceiling, the BT893-FD heavy duty projector is available in a range of fixed ceiling drop lengths and features an adjustable ceiling plate for use with angled ceilings. Easy adjustment of tilt, yaw and roll, with additional micro-adjustment at each corner makes alignment of projections quick and simple. The BT893 ideal for large scale and precision applications such as events and staging or for edge-blending and projection mapping.

BT893 - AV Awards 2019 Finalist

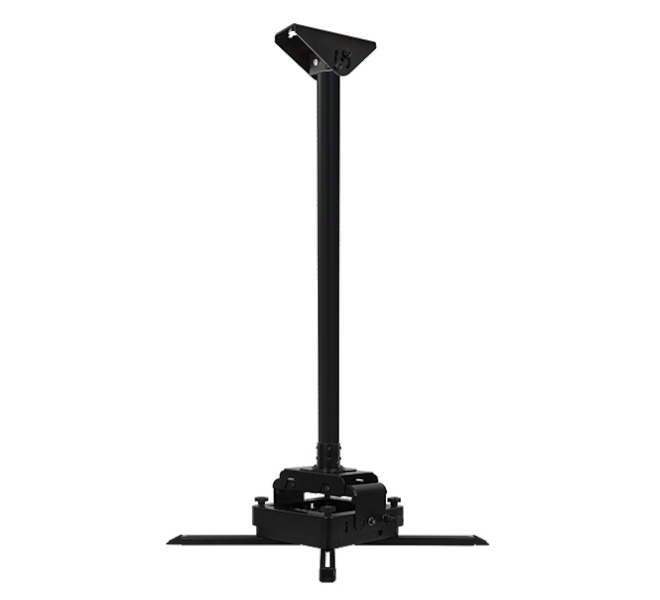

BT893-FD Fixed duty projector ceiling mount with micro-adjustment













  • Designed to mount heavy duty projectors from the ceiling

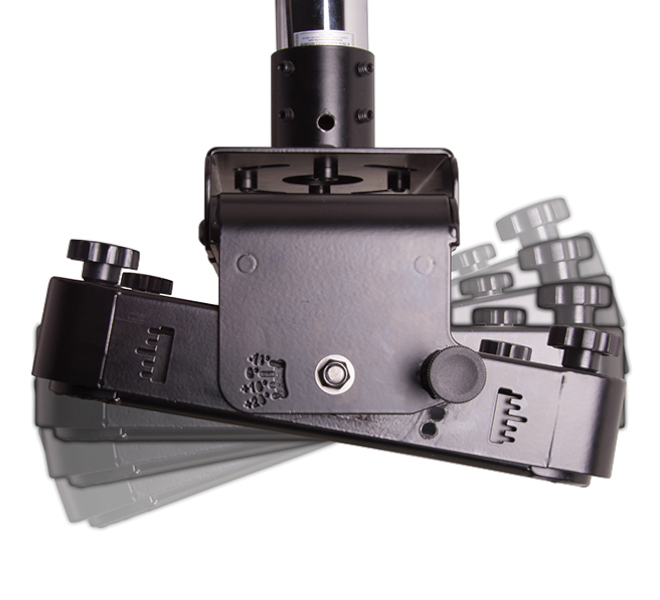

  • Features easy, incremented tilt adjustment
  • Extendable mounting plate features 4-point micro-adjustment for perfect
    alignment of the projected images
  • Micro-adjustment is altered using thumbwheels for better grip and a more
    controlled adjustment
  • Quick and easy assembly

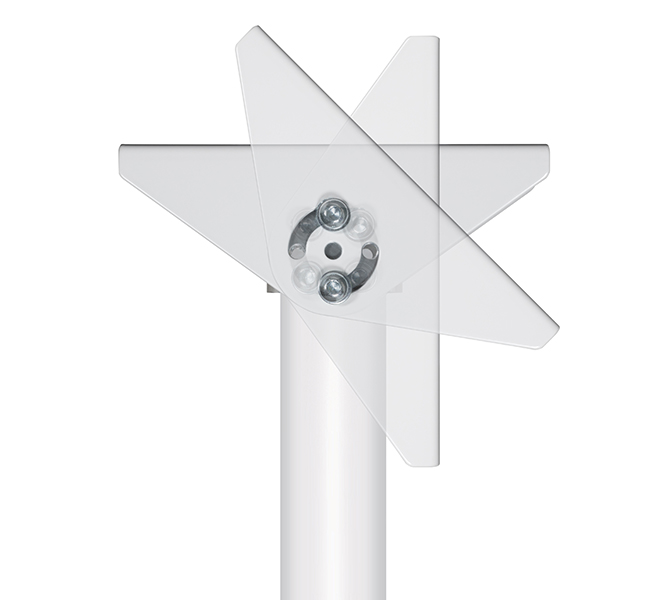

  • Adjustable ceiling plate suitable for angled ceilings

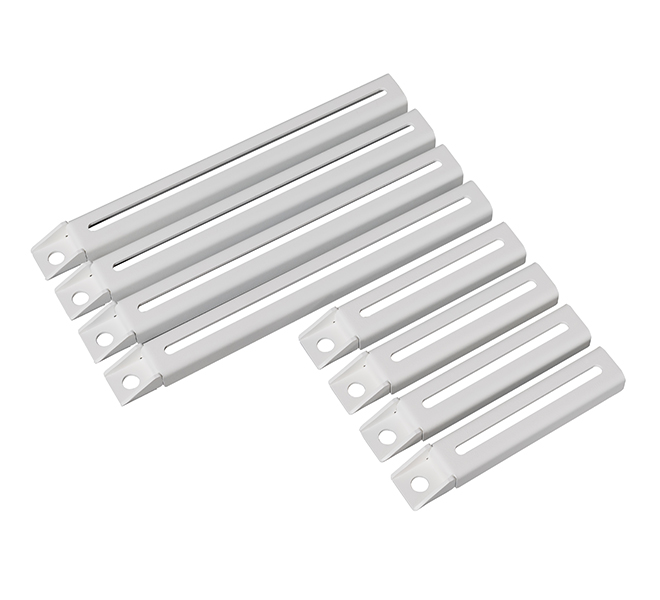

  • Optional extension legs can be used to accommodate larger fixing patterns
  • Ø50mm pole is internally unobstructed for cables to pass through easily
  • Suitable for projectors using M6, M8, M10 and M12 fixings
  • Max load: 70kg (155lbs)
  • Tilt: +20°/-10° (+/-5° with micro-adjustment)
  • Yaw (pole mounted): +/-45°
  • Roll: +/-5°
  • Ceiling plate tilt: 90°
  • Ceiling drop option:
    BT893-FD025: 0.25m (9.82) pole
    BT893-FD050: 0.50m (19.7") pole
    BT893-FD100: 1m (37.4") pole
    BT893-FD150: 1.50m (59") pole
    BT893-FD200: 2m (78.7") pole
    BT893-FD300: 3m (118.1") pole
  • Max distance (between fixings): 873mm (34.4")
  • Max distance (square fixing pattern): 618mm (24.3")
  • Colour: Black or Chrome
BT893-FD Fixed duty projector ceiling mount with micro-adjustment Optional extension legs can be used to accommodate larger fixing patterns Features easy, incremented tilt adjustment Ceiling plate can be mounted onto a ceiling with angles up to 90˚

Specification Sheet (PDF)

Installation Guide (PDF)
