Soft-Open Full Service Portrait Wall Mount

BT9925

Recess portrait mount for XL screens

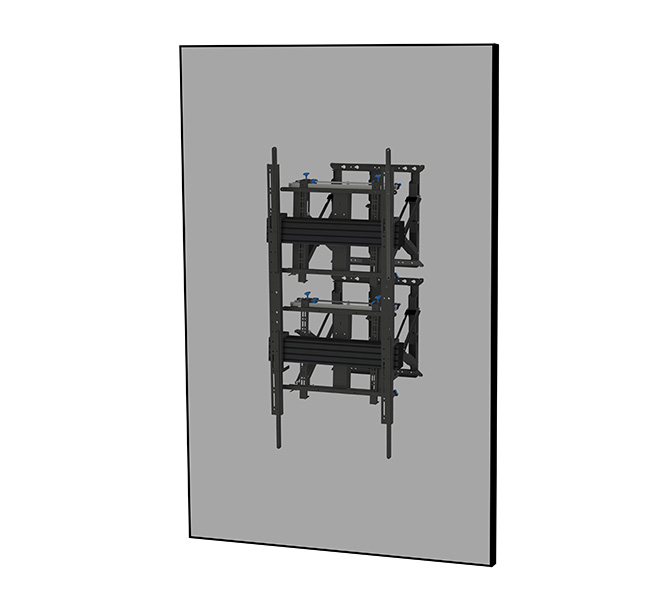

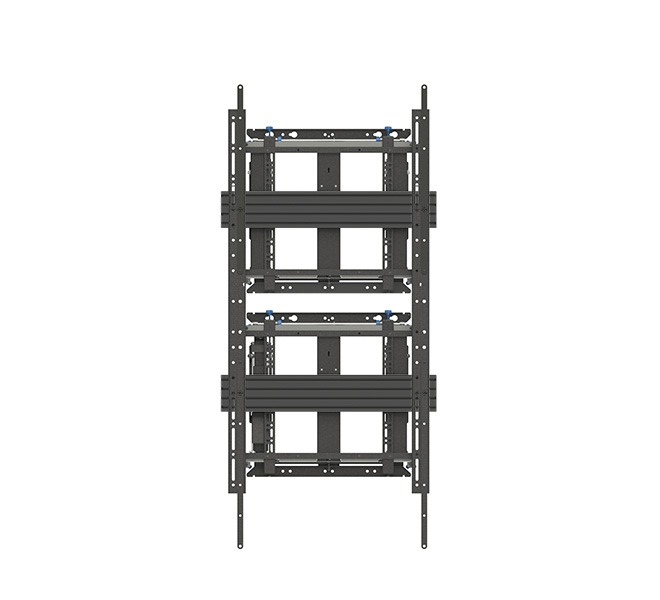

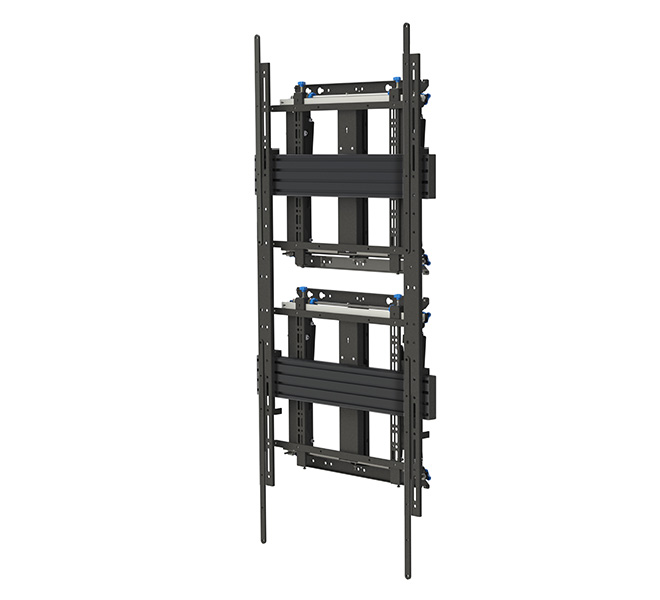

The BT9925 is a dual rail, pop-out wall mount solution designed for portrait mounting extra-large signage displays. Capable of supporting heavy loads, the BT9925 is ideal for recess mounting and features a soft opening for full service access, micro-adjustment for screen alignment and integrated cable management to help keep the finished installation tidy. Safety screws also help to prevent unauthorised removal of the screen.





   BT9925

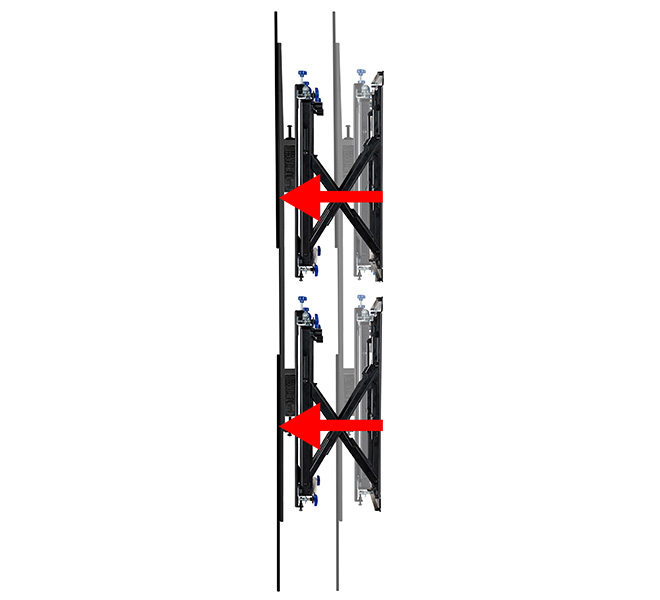

  • Pop-out system with soft opening provides a safe and easy service access
  • Ideal for recess mounting

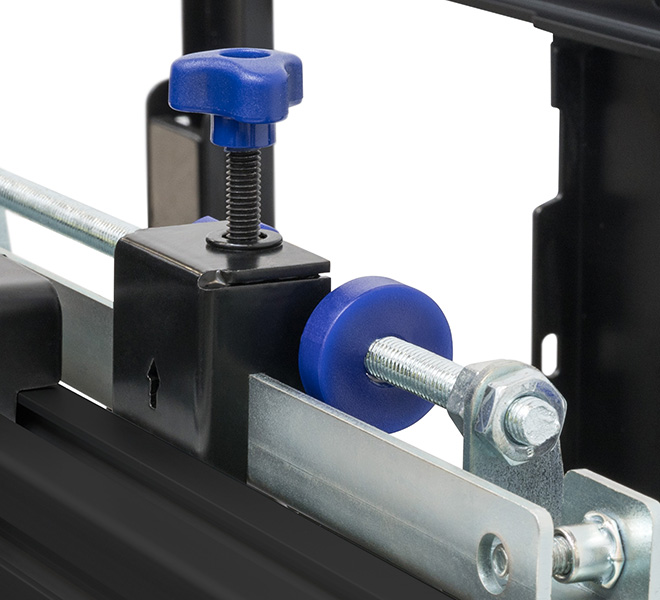

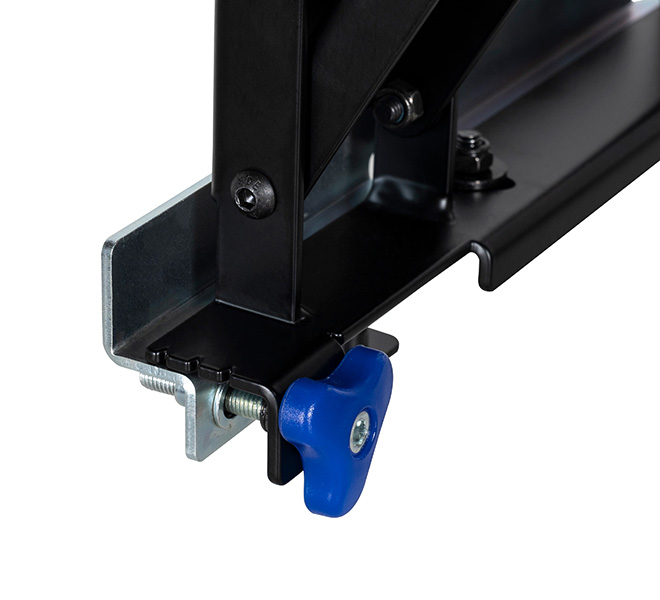

  • Tool-less micro-adjustment of +/-7.5mm
  • Features depth, height and lateral micro-adjustment
  • Keyhole fixings on wall plates for an easier installation
  • Safety screws help prevent unauthorised removal of screens

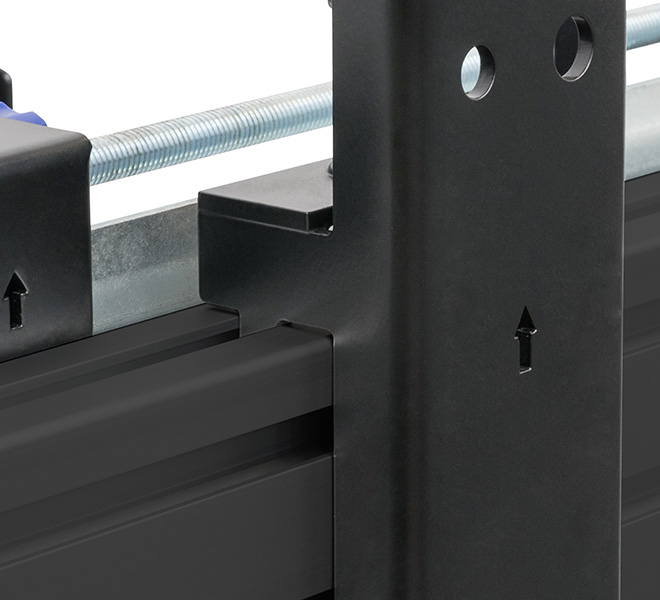

  • Simple 'hook-on' installation
  • All mounting hardware included
  • Recommended screen size: 72” (183cm) up to 120" (305cm)
  • Max load: 80kg (176.4lbs)
  • VESA and non-VESA Fixings: up to 600 x 1500mm
  • Flat to wall depth: 121.3mm (4.8") (+/-7.5mm with micro-adjustment)
  • Popped out depth: 268.3mm (10.6") (+/-7.5mm with micro-adjustment)
  • Tool-less micro-adjustment: +/-7.5mm per corner
BT9925 - Soft-Open Full Service Portrait Wall Mount For LG® 110UM5J-B

Specification Sheets

Product Specification Sheet - English (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)



Greensheet

Greensheet (PDF)
