Ultra-Slim Pop-Out Videowall Mount

BT8312

Ultra-slim design

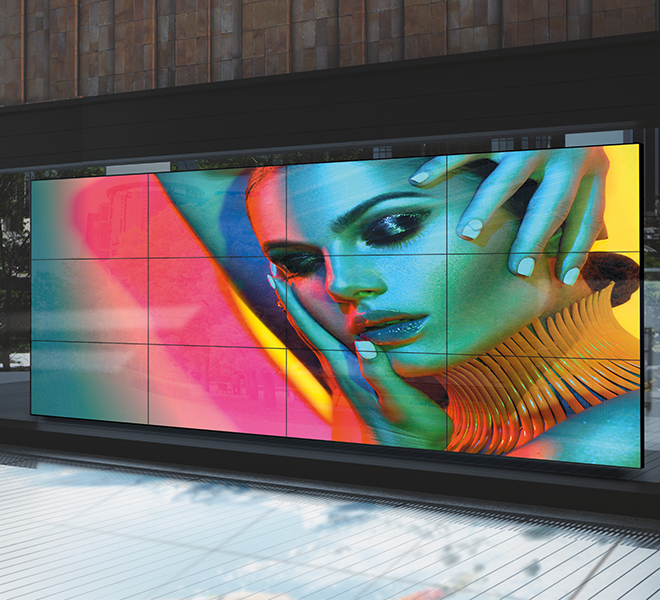

	Designed to make videowall installations as quick and simple as possible, this modular videowall mount can be used to create unlimited videowall configurations in both landscape and portrait format. The BT8312 has an ultra-low profile for mounting into walls with a shallow recess or when space in front of the wall is minimal. The pop-out system enables quick and easy access to the rear of mounted screens for servicing and maintenance and +/-7.5mm micro-adjustment makes accurate screen alignment quick and easy.

Features
Specifications
Photos
Videos
Accessories
Downloads
For Dealers

Ultra-slim design ideal for low profile installs on walls or in shallow recesses
Modular mount allows videowall assembly in an unlimited number of configurations
Suitable for landscape or portrait screen mounting

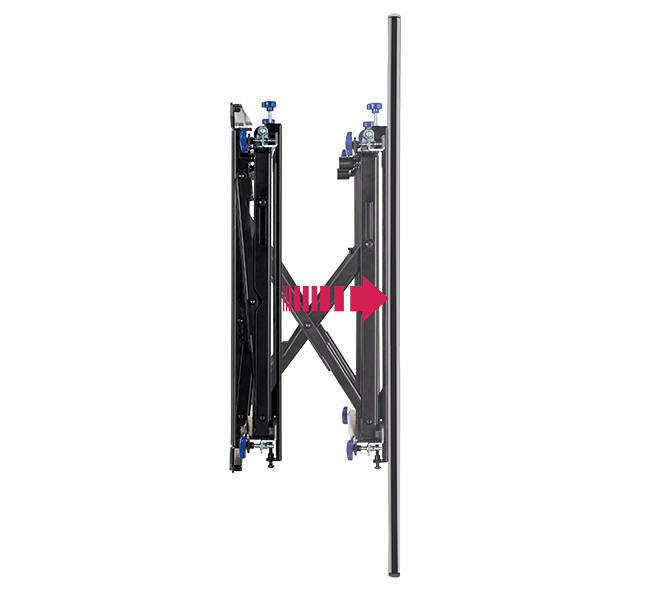

Pop-out system provides quick and easy service access

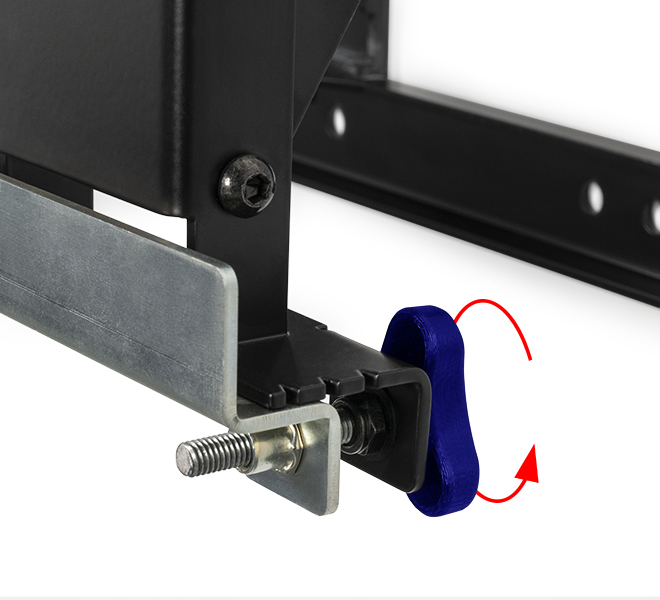

Tool less micro-adjustment of +/-7.5mm at each corner for seamless display alignment
Screen height adjustment of +15mm
Suitable for both wall or pole mounting

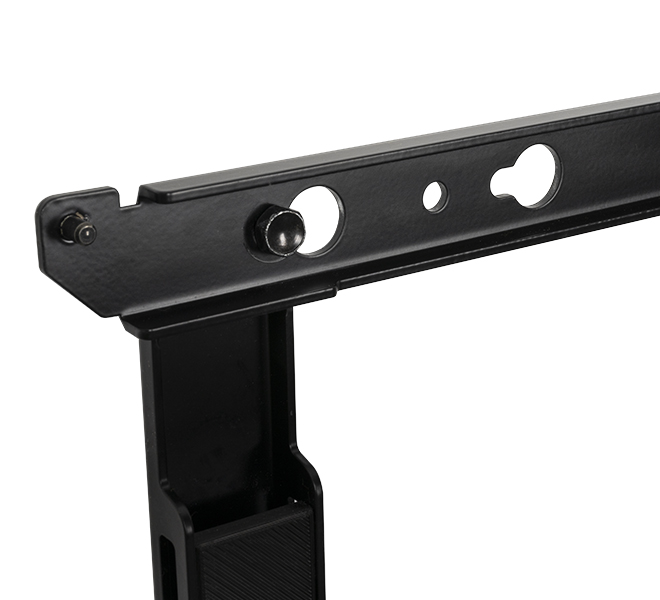

Keyhole mounting for quick and easy installation
Mounting template spacers are available (separately) to speed up installation times
Integrated locking mechanism prevents accidental pop-out of mount
Safety screws help prevent unauthorised removal of screens
Includes Interface Adaptor Arms as standard (pictured below) for use with screens with VESA 600 x 400 fixings
All mounting hardware included

Recommended screen size: 42" - 70" (46" - 70" in portrait)
Max load: 50kg
VESA compatibility (as standard): 200 x 100 to 400 x 400
VESA compatibility (with included adaptors): up to 600 x 400*
Flat to wall depth: 63.1mm (+/-7.5mm with micro-adjustment)
Popped out depth: 235.1mm (+/-7.5mm with micro-adjustment)

*Please note using the included Interface Adaptor Arms to mount VESA 600 x 400 screens will increase the total depth of the product by 6mm, for a total depth of 69.1mm, or 241.1mm whilst popped out (+/-7.5mm micro-adjustment).

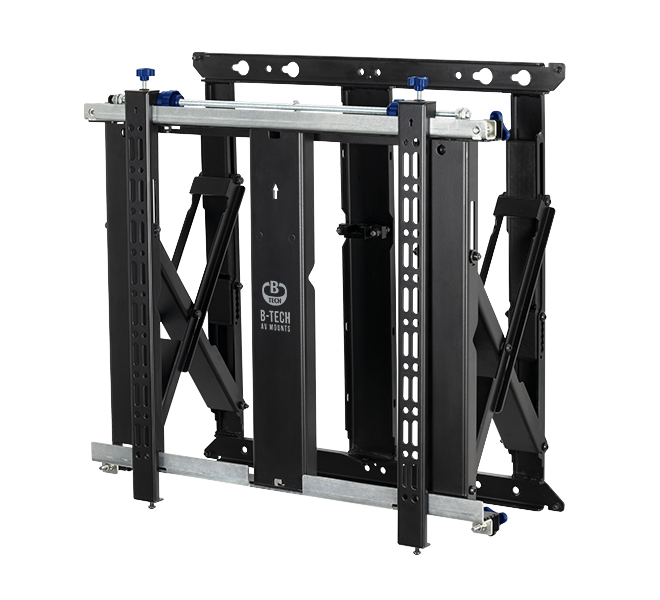

BT8312 - Ultra-Slim Pop-Out Videowall Mount

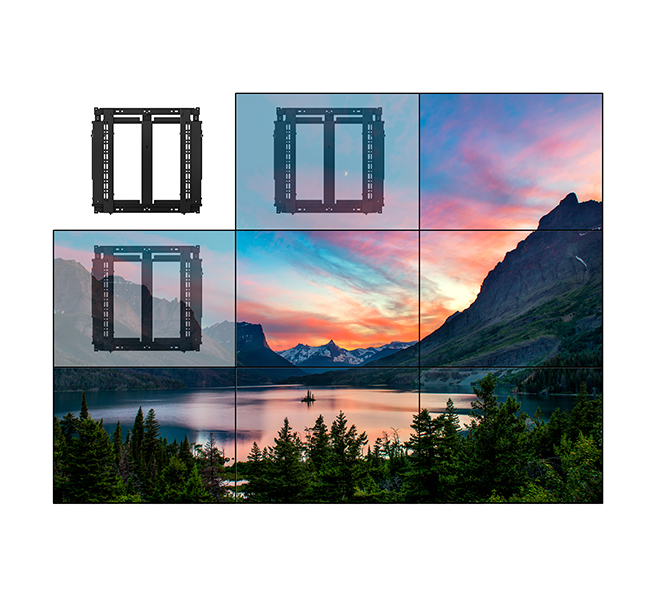

Modular mount allows videowall assembly in an unlimited number of configurations

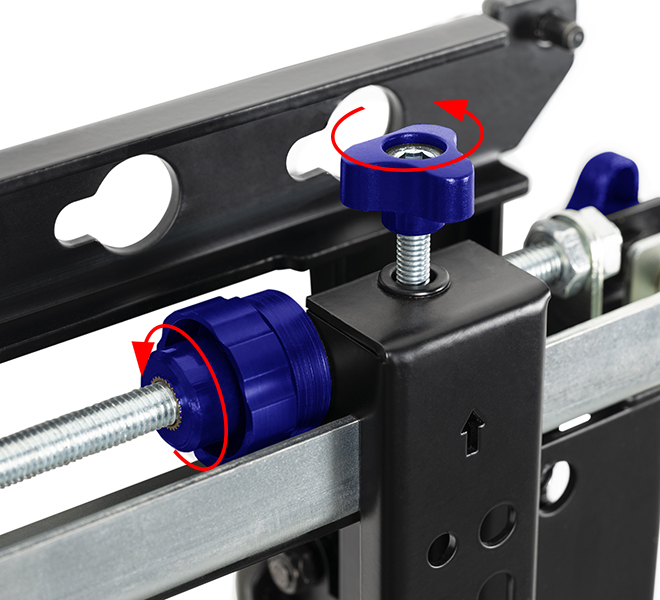

Tool less micro-adjustment of +/-7.5mm at each corner for seamless display alignment

Product Overview Video

VESA Adaptors and Spacers for BT8312
Screen Size	Screen Dimensions	Spacer Available
46"	1022 x 576mm	BT8312-SP461
46"	1025 x 579mm	BT8312-SP462
47"	1047 x 592mm	BT8312-SP471
49"	1078 x 608mm	BT8312-SP491
55"	1215 x 686mm	BT8312-SP551
55"	1211 x 682mm	BT8312-SP552
70"	1544 x 870mm	BT8312-SP701
