Universal Flat Screen Wall Mount With Tilt

BT8430

Easy Torsion-Tilt System





Designed to mount medium sized screens, the BT8430 is a flat screen wall mount that features a unique ‘Torsion-Tilt’ mechanism which allows easy tilt adjustment of the screen up to +/-15°. Also suitable for pole mounting using B-Tech’s Accessory Collars, the BT8430 features levelling screws to adjust the screen level post installation as well as locking screws which help prevent unauthorised removal of the screen.

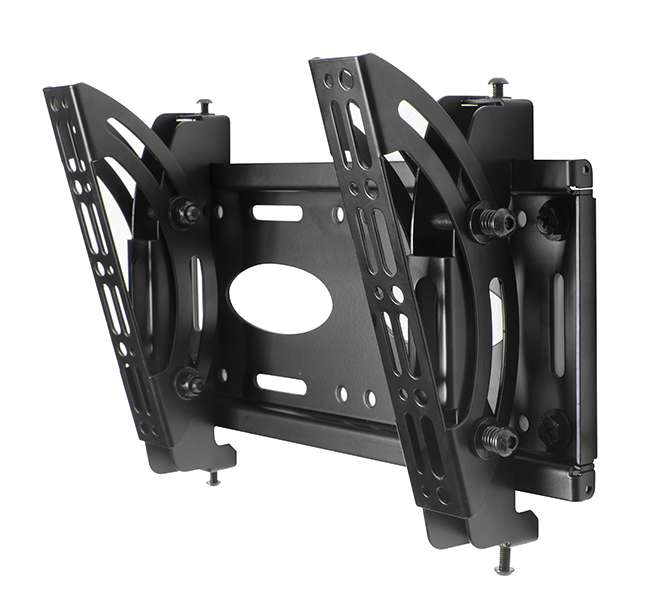

BT8430 - Universal Flat Screen Wall Mount with Tilt


  • Unique ‘Torsion-tilt’ mechanism for tool-less tilt adjustment

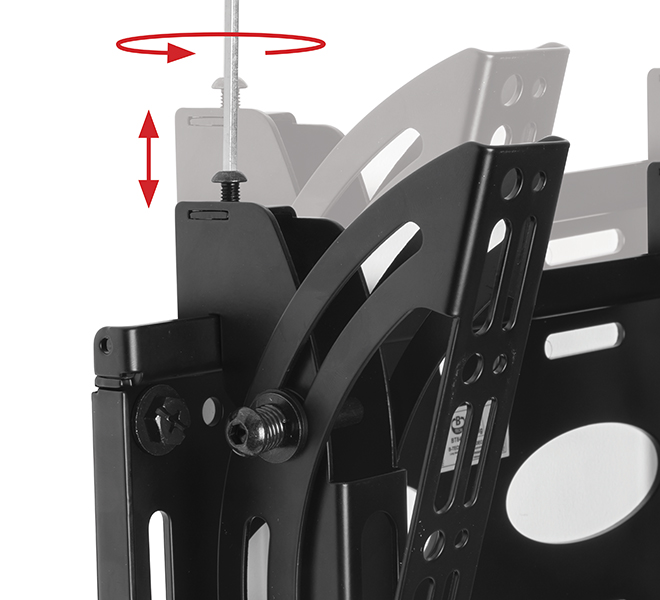

  • Arms feature levelling screws to adjust the screen height
  • Lateral adjustment of screen once mounted
  • Levelling screws allow adjustment of screen height

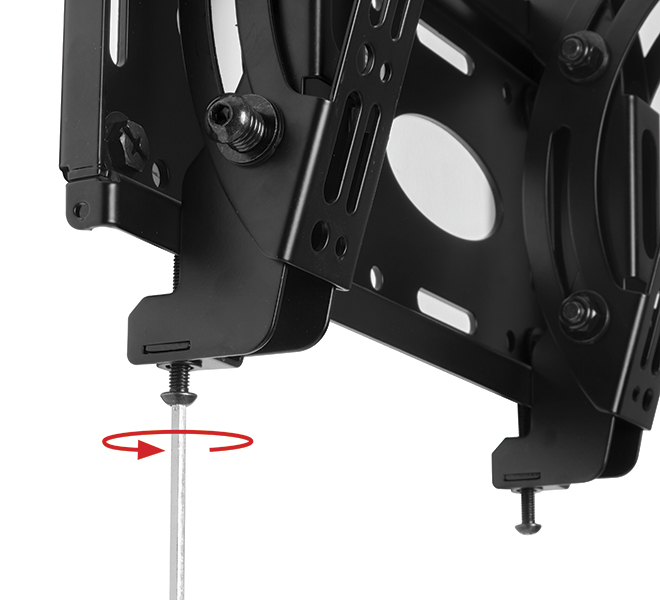

  • Security locking screws and Allen key to prevent unauthorised screen removal
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recommended screen size: up to 47" (119cm)
  • Max load: 50kg (110lbs)
  • VESA® & non-VESA fixings: up to 327 x 200mm
  • Tilt: +/-15°
  • Distance from wall (flat): 81mm (3”)
  • Distance from wall (full tilt): 148mm (5.8”)

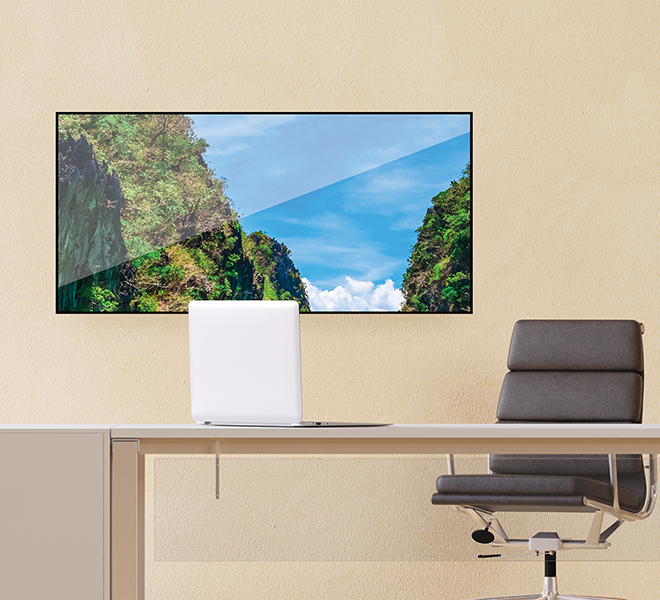

BT8430 - Universal Flat Screen Wall Mount with Tilt BT8430 - Arms feature levelling screws to adjust the screen height once mounted BT8430 - Security locking screws and Allen key provided for a secure installation BT8430 - Universal Flat Screen Wall Mount with Tilt - Lifestyle Image

Specification Sheet

Specification Sheet - English (PDF)

Spezifikationsblatt - Deutsch (PDF)

产品规格书 — 中文（PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (DXF)

You must log in to view this content
