Motorised Height Adjustable Flat Screen Trolley

BT8568

For screens up to 86"




The BT8568 is a mobile solution designed to mount large screens up to 86". Electronic height adjustment enables effortless raising and lowering of the screen via a wired control panel, with an adjustment range of up to 650mm. This trolley is ideal for mounting interactive touchscreens into education and corporate environments and is capable of supporting loads up to 100kg. The mount has a modern design and features a simple hook-on installation for quick and easy screen fitting and incorporates an adapter plate for the fitting of AV accessory shelves.







BT8568 Motorised Height Adjustable Flat Screen Trolley



  • Easy to use motorised height adjustment allows the mounted screen to be positioned at the
    ideal height for the user
  • Ideal for use with large touch screens and interactive displays
  • Supplied with a wired control console
  • Automatic auto-stop when resistance is felt
  • Interface arms include levelling screws to adjust the height of the screen
  • Safety screws help prevent unauthorised removal of the screen
  • Non-marking locking / braked castors included
  • Simple hook-on screen installation
  • All mounting hardware included
  • Recommended screen size: 55" (140cm) up to 86" (218cm)
  • Max load: 100kg (220lbs)
  • Dimensions: H: 1360-2010mm (53"-79") W: 1255mm (49") D: 740mm (29")
  • VESA® & non-VESA fixings: up to 1000 x 600
  • Height adjustment range: up to 650mm (25.6")

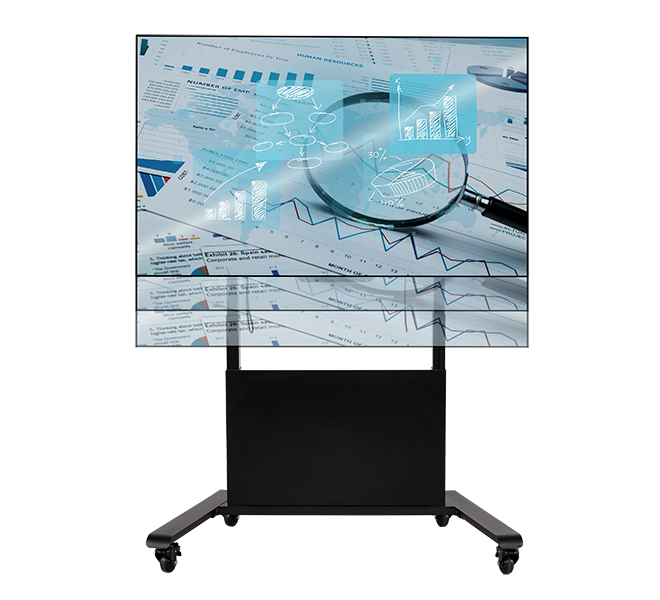

BT8568 Height adjustment range of up to 650mm BT8568 Supplied with a wired remote control BT8568 Includes non-marking 3 inch locking/braked castors BT8568 Automatic auto-stop; when resistance is felt

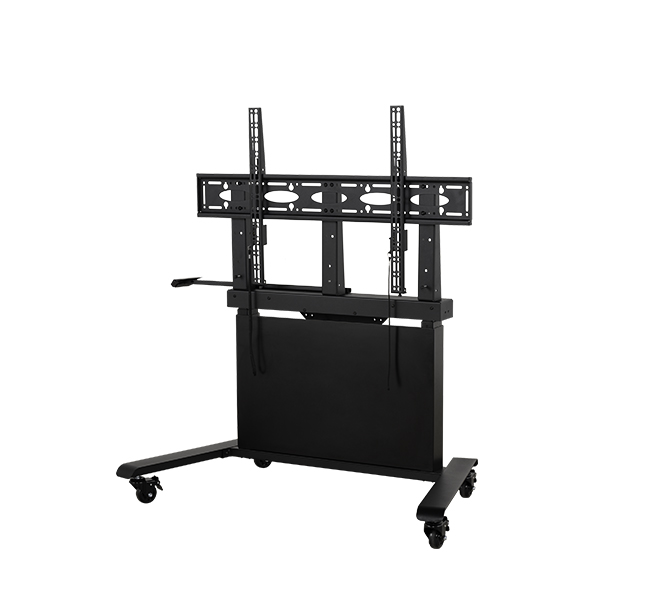

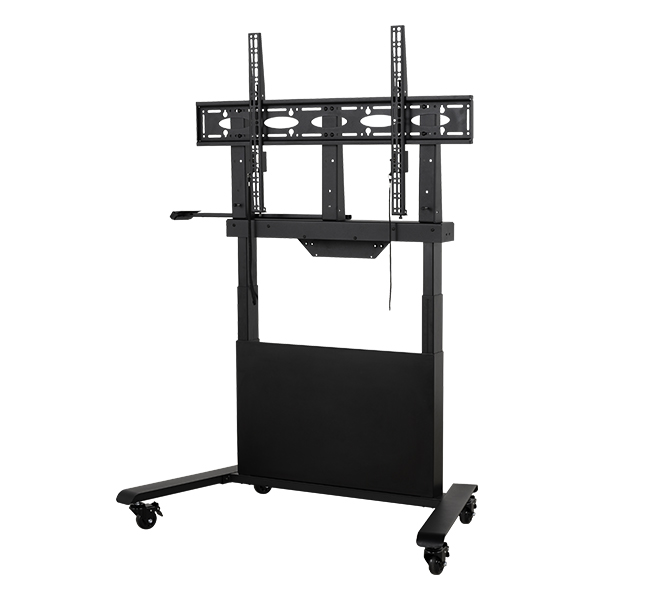

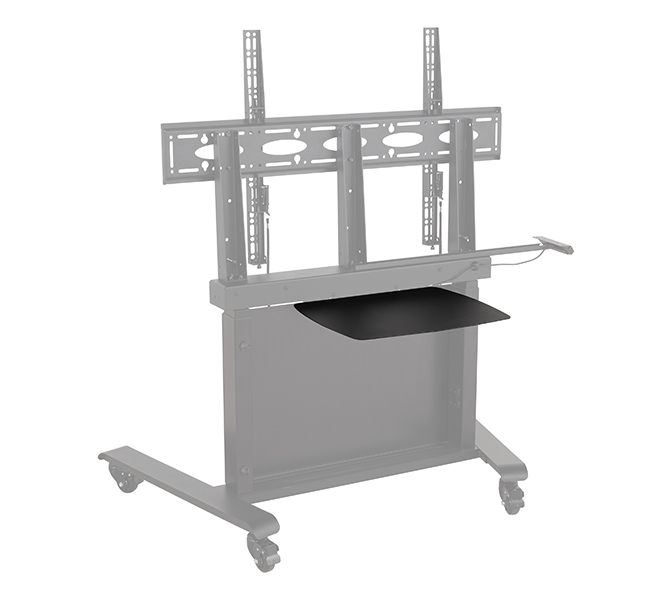

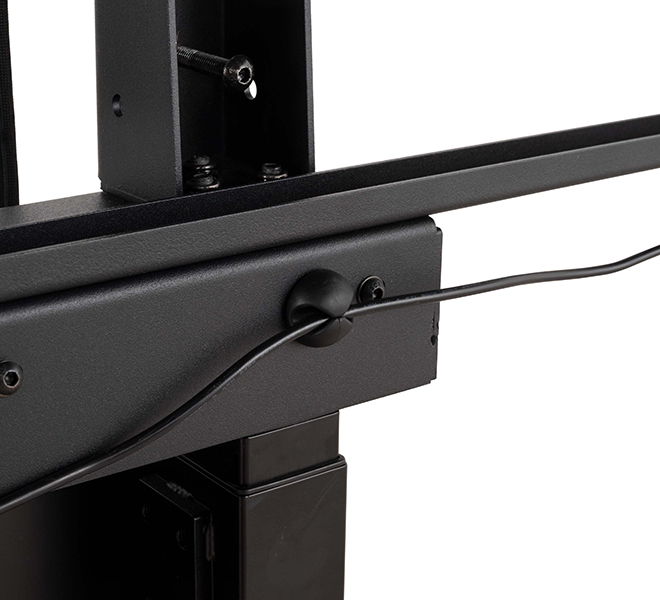

BT8568 - Highest adjustment BT8568 - Lowest adjustment BT8568 - Large shelf accessory BT8568 - Cable management for remote control

Product Overview Video

Français

Deutsche

Español

Tiếng Việt

中文






Specification Sheet

Specification Sheet - English (PDF)

Spezifikationsblatt - Deutsch (PDF)

Trang thông số kỹ thuật - Tiếng Việt (PDF)



Installation guide

Installation Guide (PDF)



Technical Drawings

Technical Drawing (PDF)

Technical Drawings (DXF)
